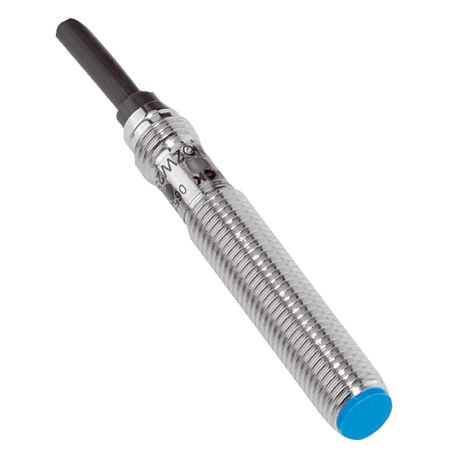

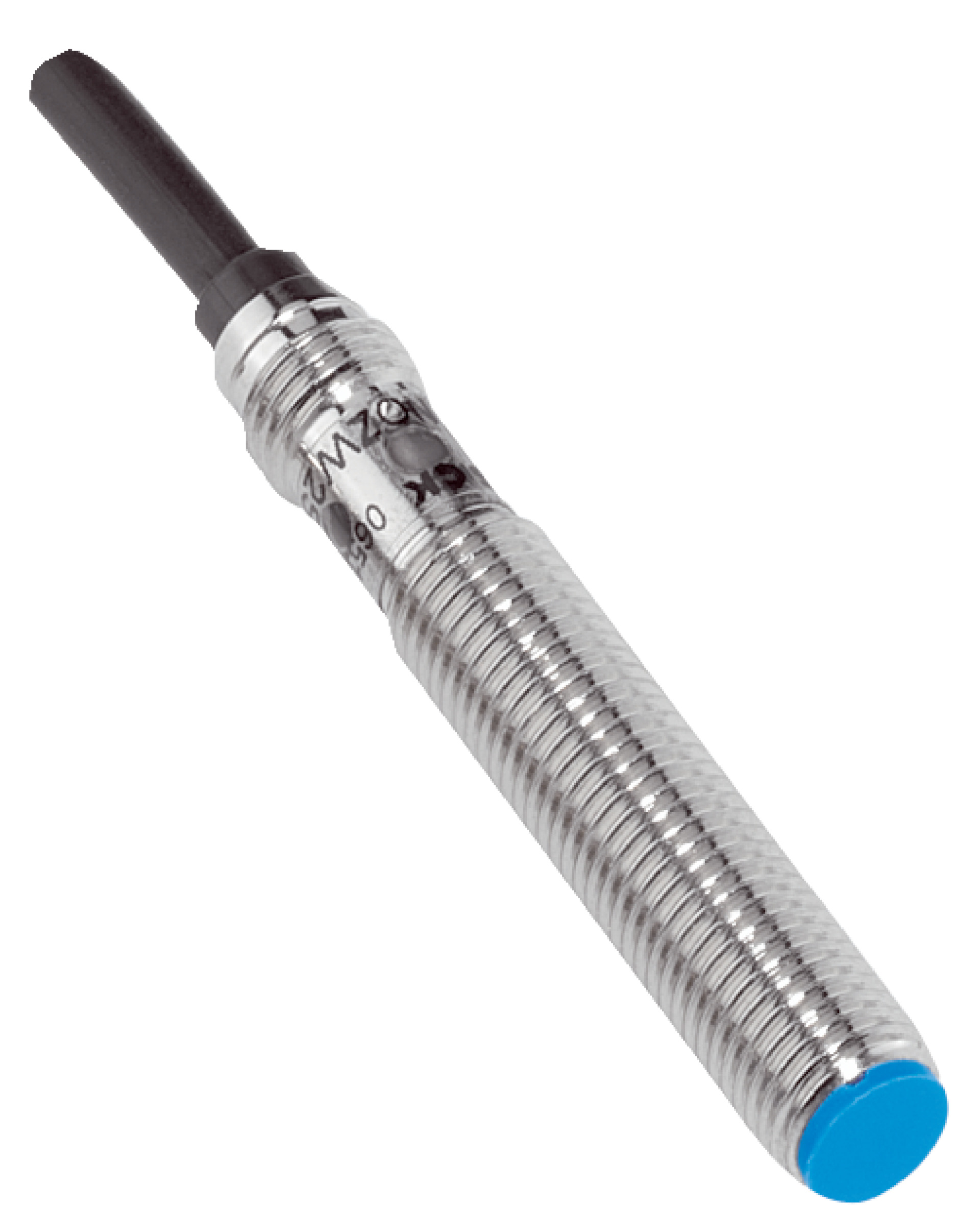

M8 Inductive Proximity Sensor | 3mm Sensing Range | IP67 Rated | PNP Output | by SICK
The M8 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 3mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and a switching frequency of 1,000 Hz, this sensor is perfect for position sensing in manufacturing lines and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 33.5 mm
- Max tightening torque: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- 3 mm sensing range with safe sensing range of 2.43 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with NO function
- Cable with M12, 8-pin connector, 0.9 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with nickel plating for extended product life
- Energy-efficient DC 3-wire electrical wiring reduces power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-03BPSZQDSS70 inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
