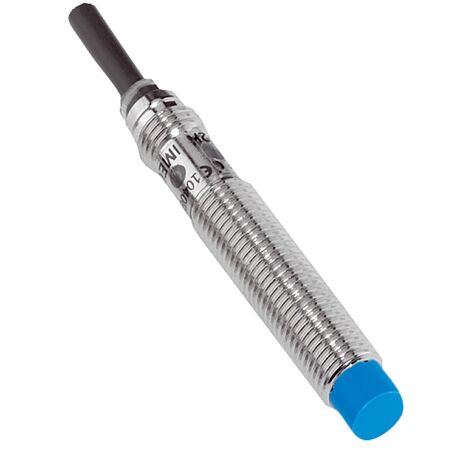

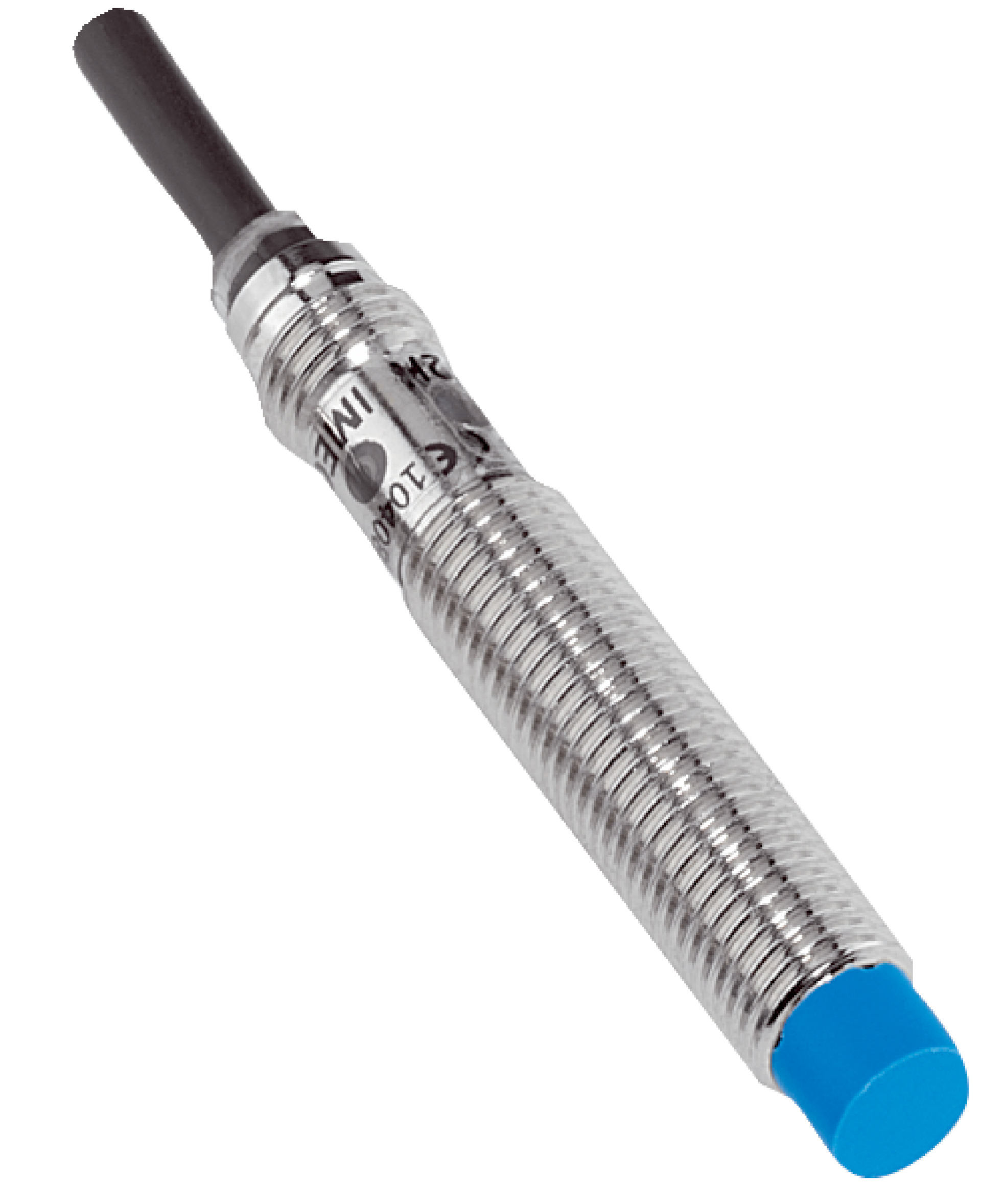

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 4 mm and an IP67 rating for dust and water protection. With a high switching frequency of 4,000 Hz and a robust brass housing, this sensor is perfect for non-contact switching in machinery and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1040892
Alternatively Known As: M8 Inductive Proximity Sensor, SICK IME08 Sensor, M8 Proximity Switch, Inductive Sensor M8 Thread
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and wiring according to electrical standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-04NPOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
