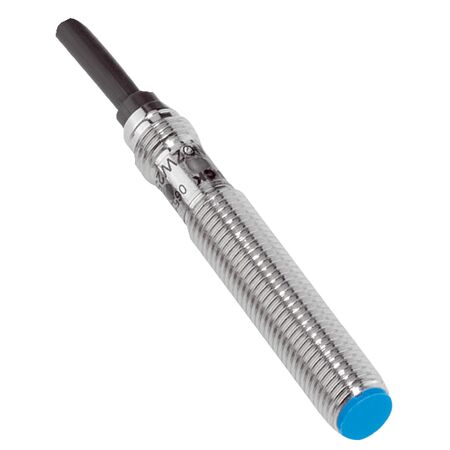

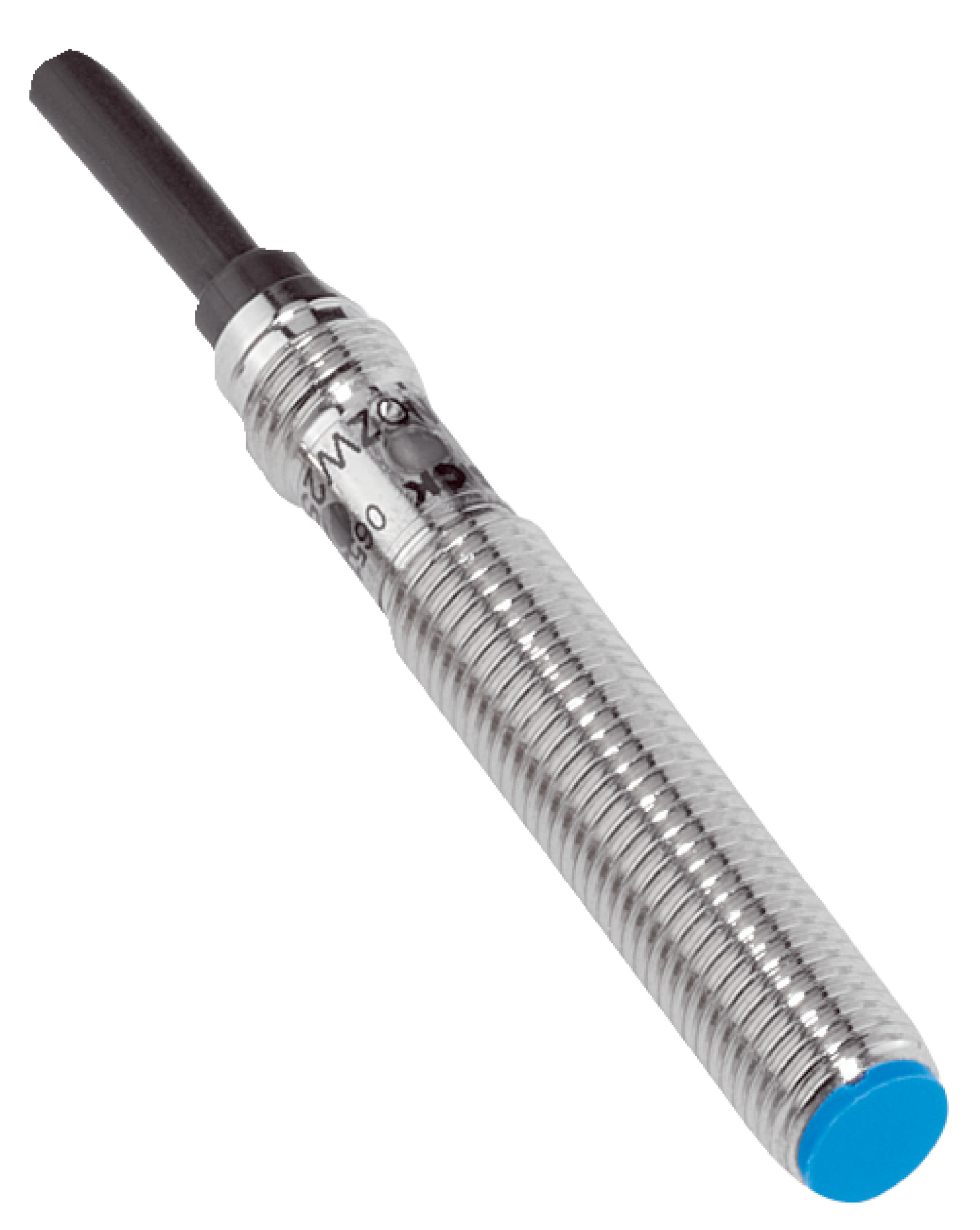

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for precise metal object detection in industrial automation applications. With a sensing range of 4mm and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and safety systems. Its high switching frequency of 500 Hz ensures quick response times, making it ideal for dynamic environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm, conductor size 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing length: 52 mm, Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Quasi-flush installation type
- High switching frequency of 500 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Quadruple sensing range for enhanced detection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring quasi-flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-04BPOZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise metal object detection.
