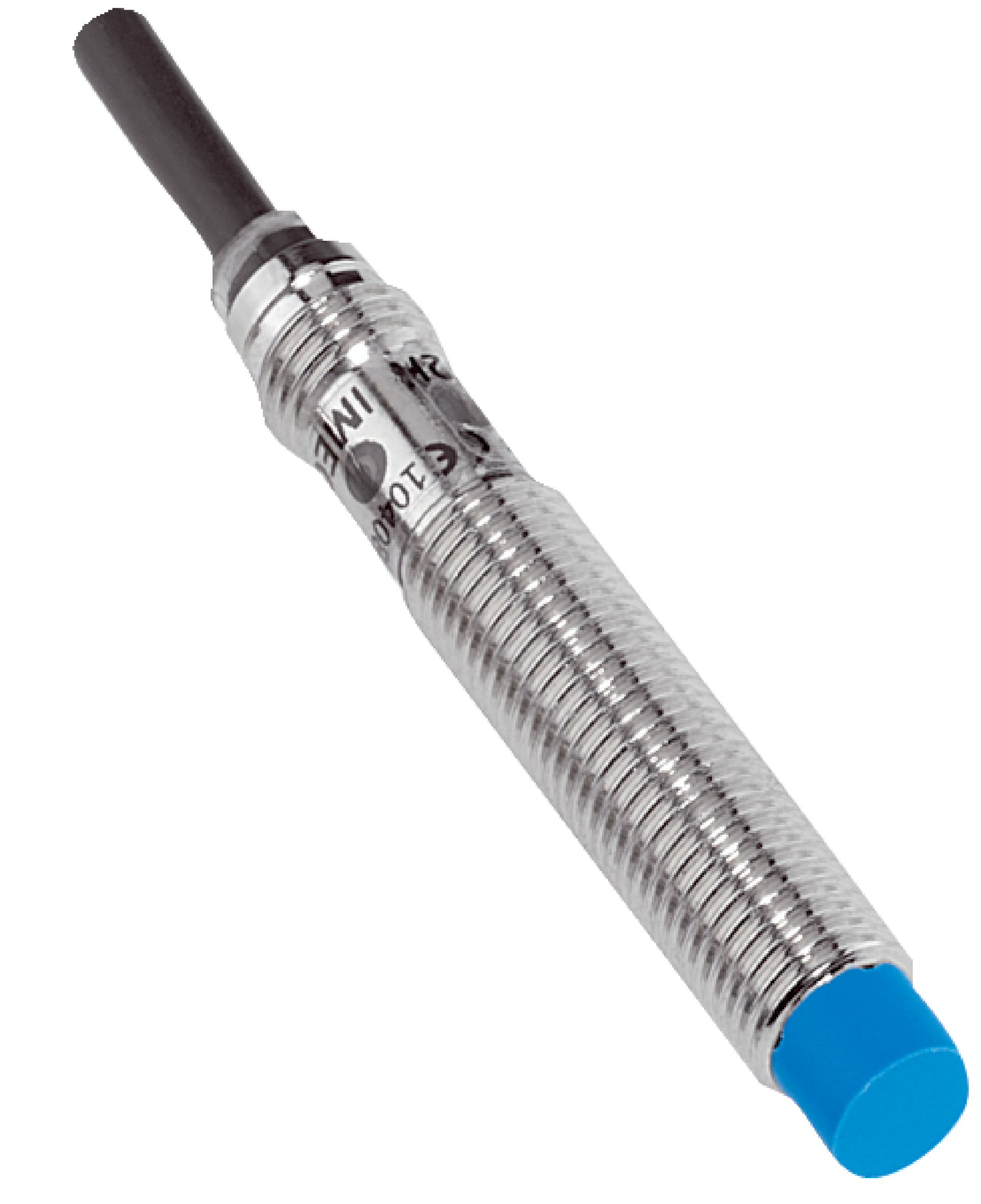

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and robust construction, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, SICK IME08 Sensor, M8 Proximity Switch, Inductive Sensor M8 Thread
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 3.9 mm, conductor size 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open switching output
- Cable connection type with 3-wire, 3 m PVC cable
- IP67 rated enclosure for dust and water protection
- Mounting nut included (steel, nickel-plated)
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

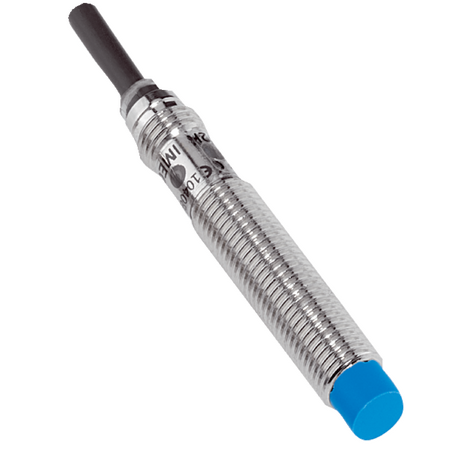

The SICK IME08-04NNSZW3S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
