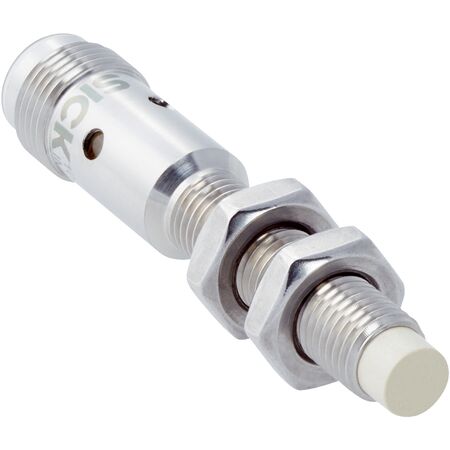

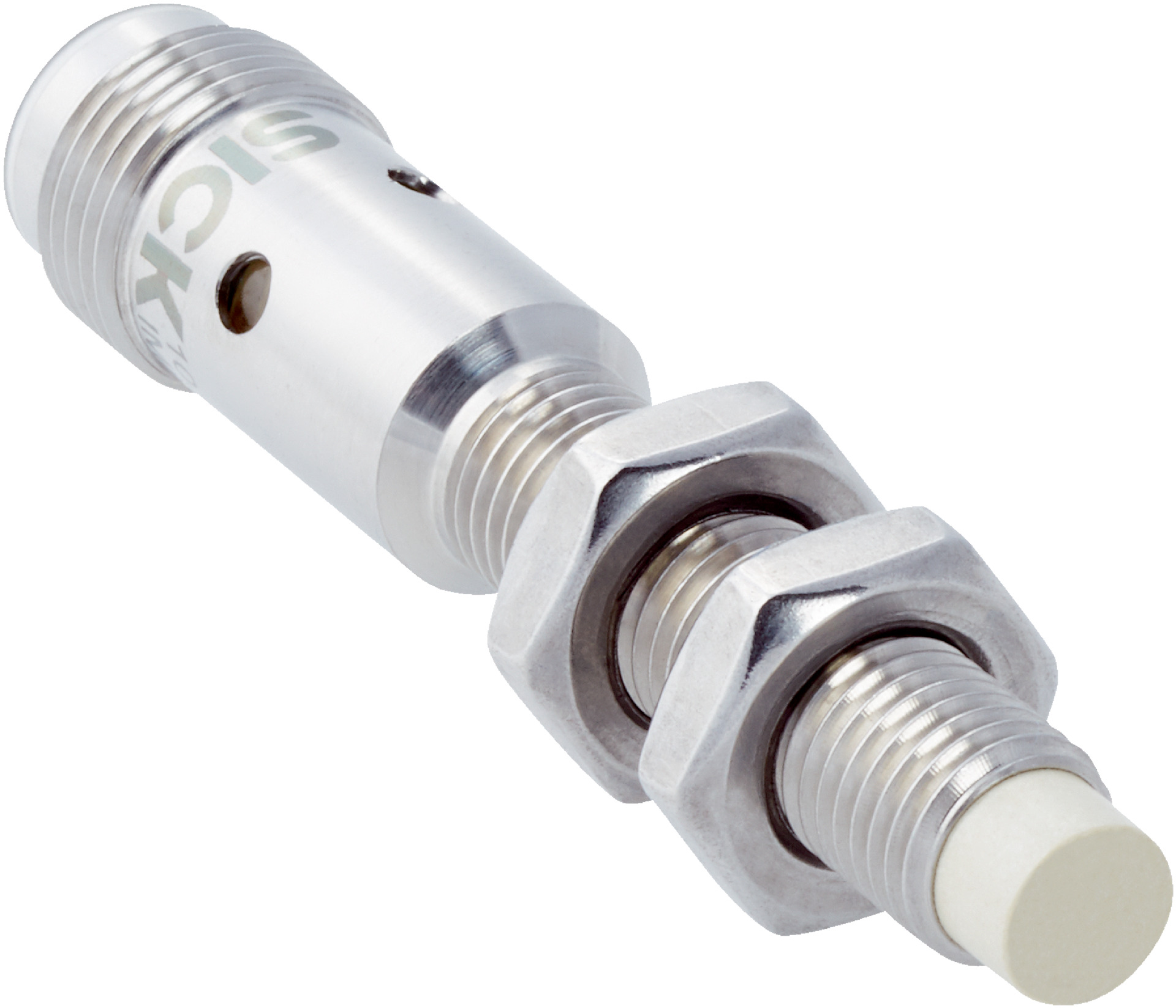

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | Stainless Steel Housing | by SICK
The M8 Inductive Proximity Sensor is designed for reliable detection in challenging environments, featuring a 4mm sensing range and an IP67 rated enclosure for dust and water protection. Ideal for hygienic and washdown zones, this sensor is built with a durable stainless steel housing and is ATEX certified for explosive atmospheres, ensuring safety and compliance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -20 °C to +85 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Housing length: 60 mm
- Thread length: 28 mm
- Tightening torque max: 14 Nm
- ATEX marking: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 4,000 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Resistant to cleaning agents
- Visual adjustment indicator
- IO-Link communication interface for smart sensor integration
- Stainless steel V4A housing (DIN 1.4404 / AISI 316L) with plastic sensing face
- Shock and vibration resistant
- ATEX certified for explosive atmospheres (II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical wiring standards to ensure safety and compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions
- Explosive areas requiring ATEX certified sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to cleaning agents reducing need for replacement due to corrosion
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF08-04NPSNC0SX02 inductive sensor is available for immediate purchase, ideal for industrial automation in hygienic, washdown, and explosive environments.
