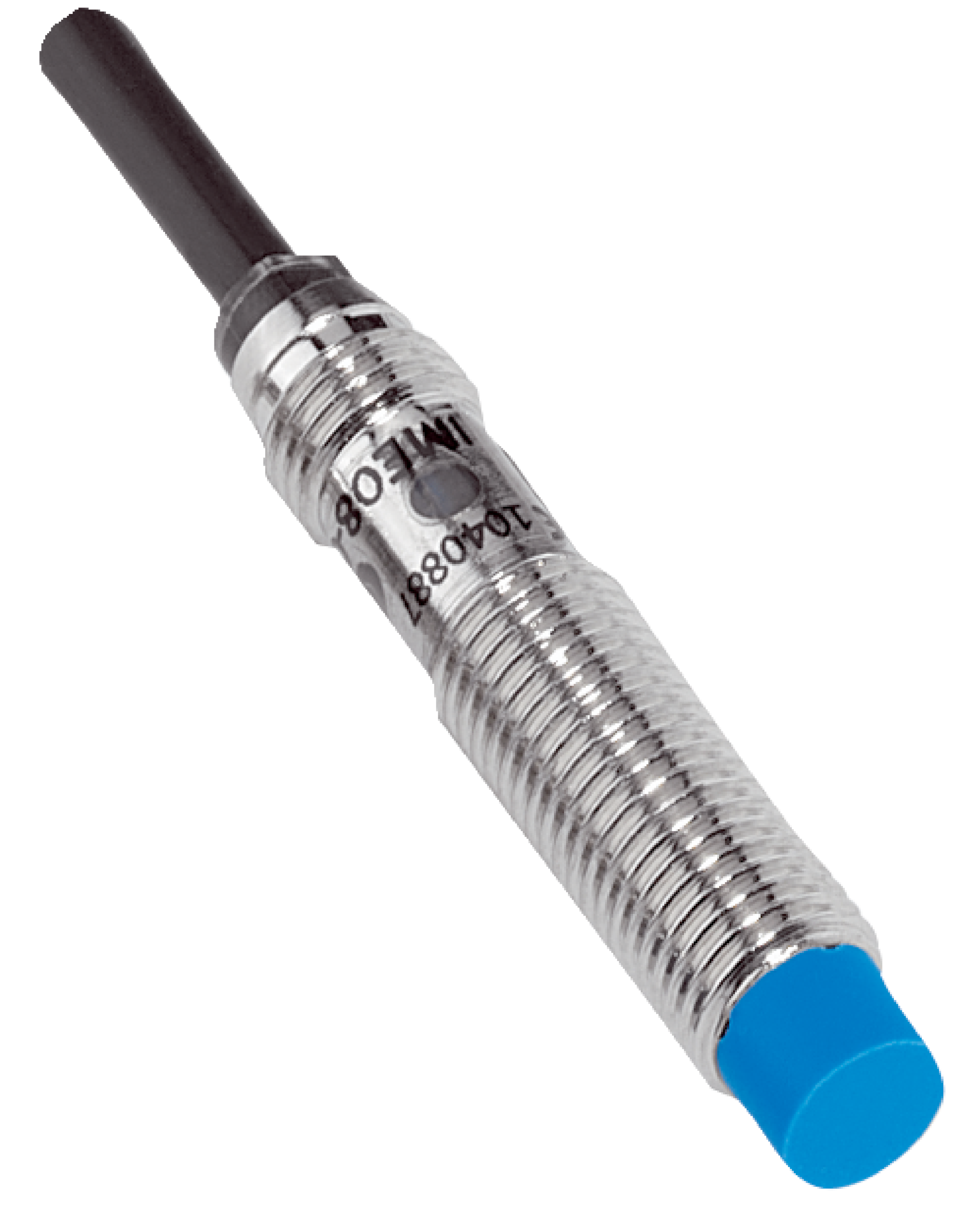

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | 4000 Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a high switching frequency of 4,000 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for non-contact switching in machinery and position sensing in manufacturing lines, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Inductive Sensor, PNP NO Proximity Switch, 4mm Sensing Range Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 4,000 Hz
- Sensing range (Sn): 4 mm
- Safe sensing range (Sa): 3.24 mm
- Output function: Normally Open (NO), PNP switching output
- Electrical wiring: DC 3-wire cable, 2 m length
- Enclosure rating: IP67
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Cable diameter: Ø 3.9 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Operating temperature range: -25 °C to +75 °C
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 housing with brass, nickel-plated material
- Non-flush installation type with 4 mm sensing range
- High switching frequency of 4,000 Hz
- PNP normally open output with 3-wire DC connection
- IP67 rated for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Includes two nickel-plated steel mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure correct positioning and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

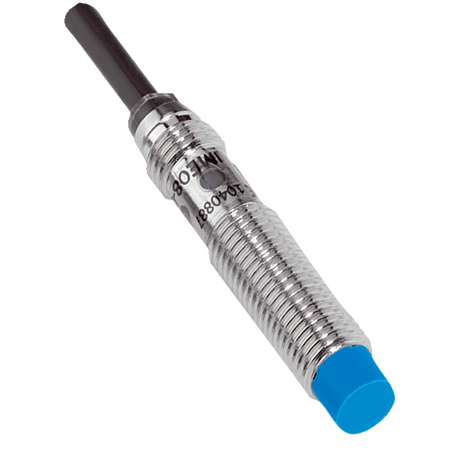

The SICK IME08-04NPSZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
