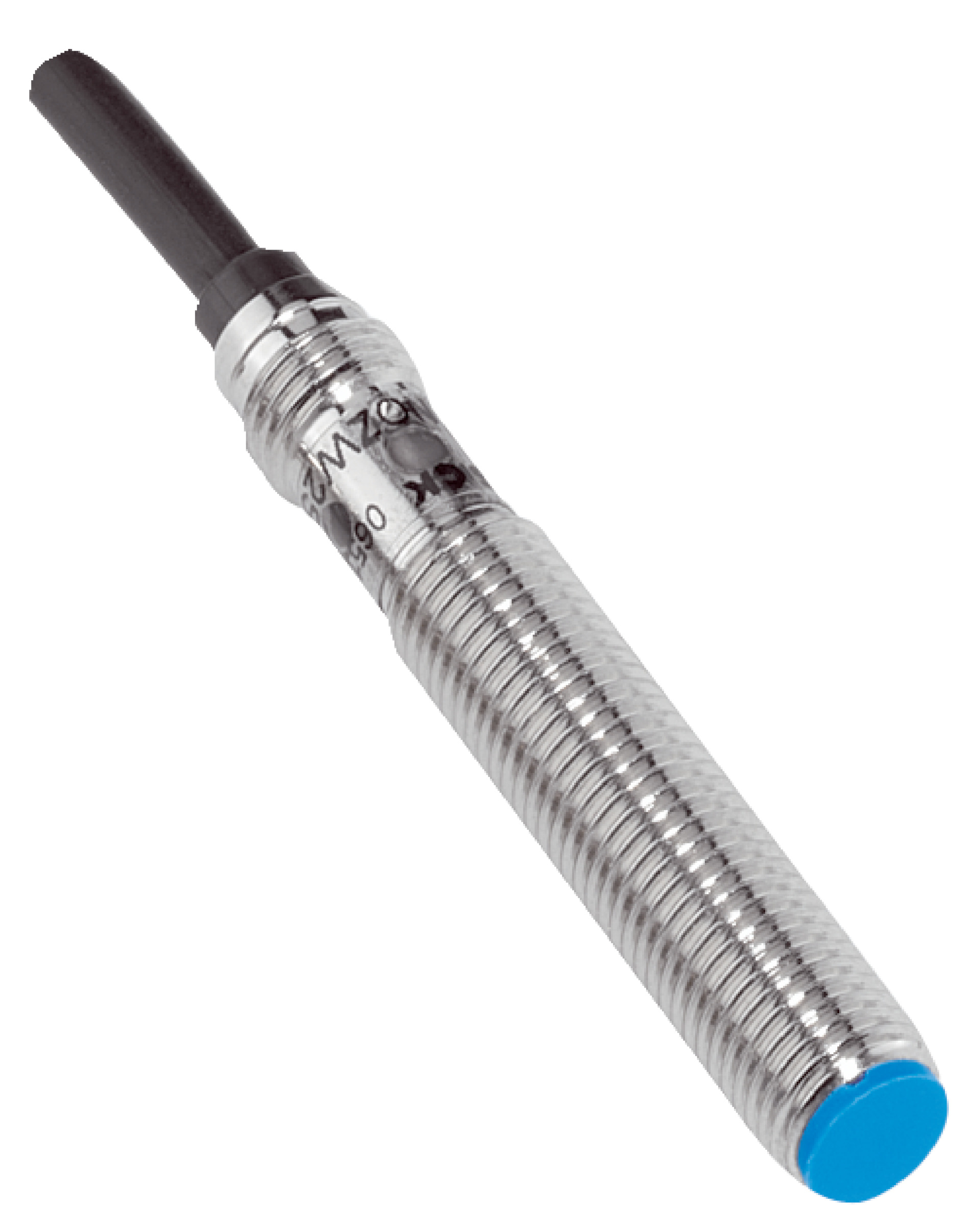

M8 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | PNP Output | by SICK
The M8 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 4mm sensing range and IP67 enclosure for dust and water protection. With a PNP output and a switching frequency of up to 500 Hz, this sensor is perfect for position sensing in manufacturing lines and machine safety applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 2 meters length
- Enclosure rating IP67 for dust and water protection
- Quadruple sensing range for enhanced detection
- Mounting nut included, brass nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
- Metal detection in assembly processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

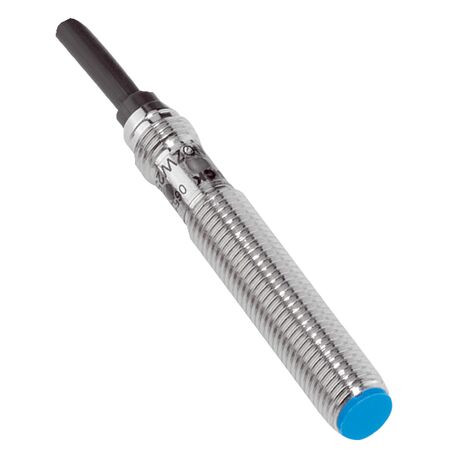

The SICK IME08-04BPSZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal object detection applications.
