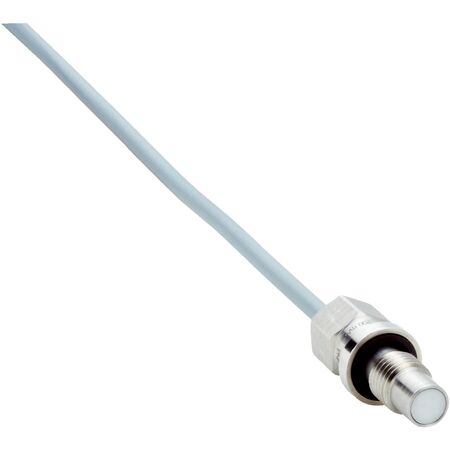

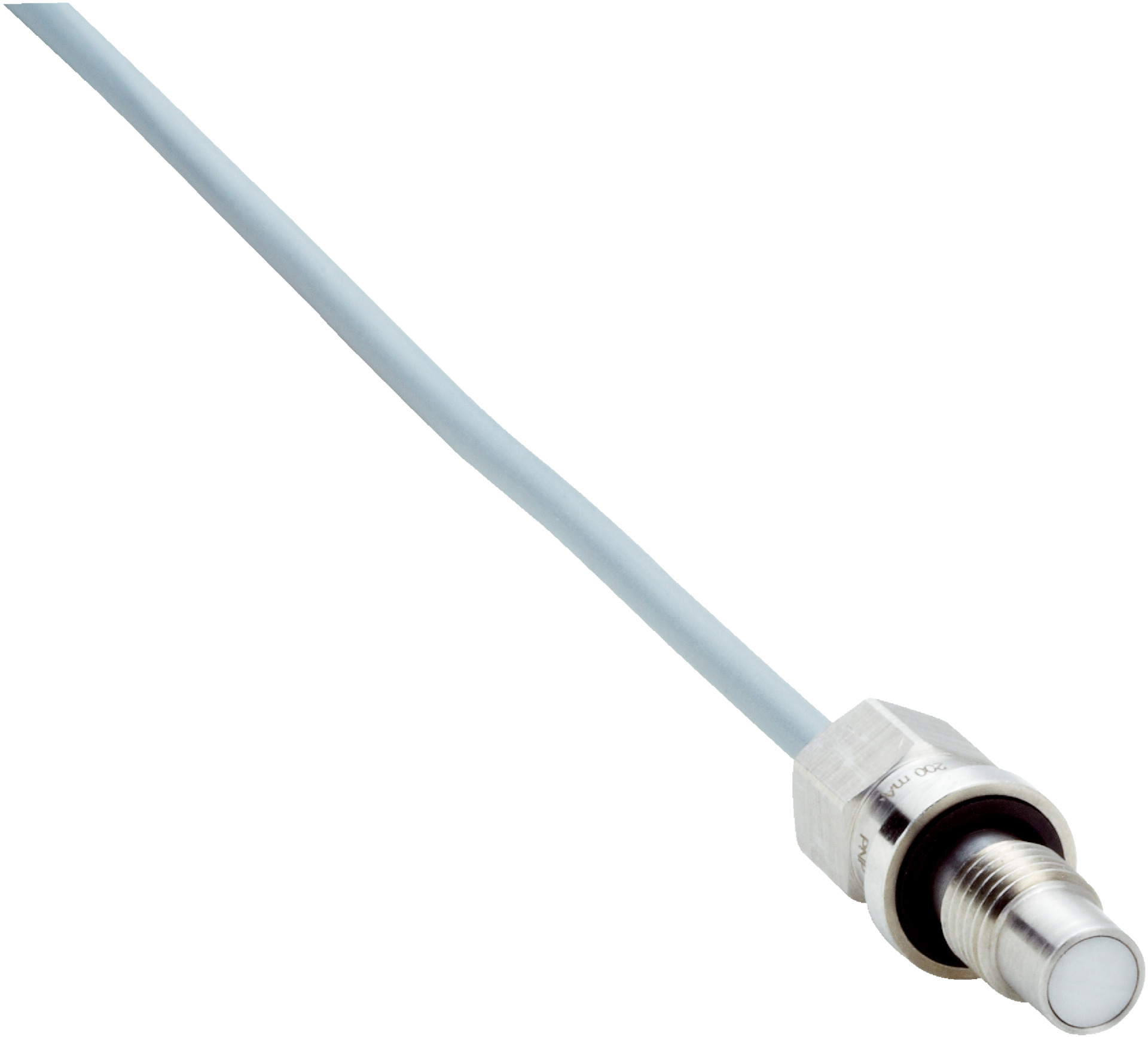

M8 Inductive Proximity Sensor | 500 Bar Pressure Resistance | IP68 Rated | Flush Mount | by SICK
The M8 Inductive Proximity Sensor is designed for hydraulic applications, featuring a robust pressure resistance of up to 500 bar and an IP68 enclosure rating for dust and water protection. With a sensing range of 1.5 mm and a durable stainless steel housing, this sensor is perfect for industrial automation and environments with high shock and vibration, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M8 x 1
- Diameter: 8 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 800 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ±10% to ±15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Cable material: PUR
- Cable diameter: 3.4 mm
- Bending radius: Fixed installation > 10x cable diameter, Flexible use > 15x cable diameter
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Ceramics (ZrO2)
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 30mm x 30mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Pressure resistance up to 500 bar
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Switching frequency of 800 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with hydraulic and electrical sensor installations to ensure proper mounting and wiring according to safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation for object detection
- Environments with high shock and vibration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMP08-1B5PSVU2S inductive sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure and temperature resistance.
