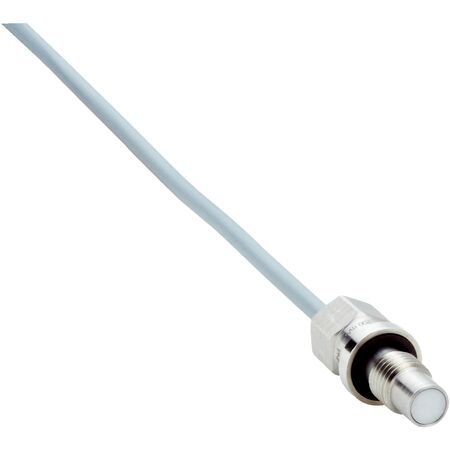

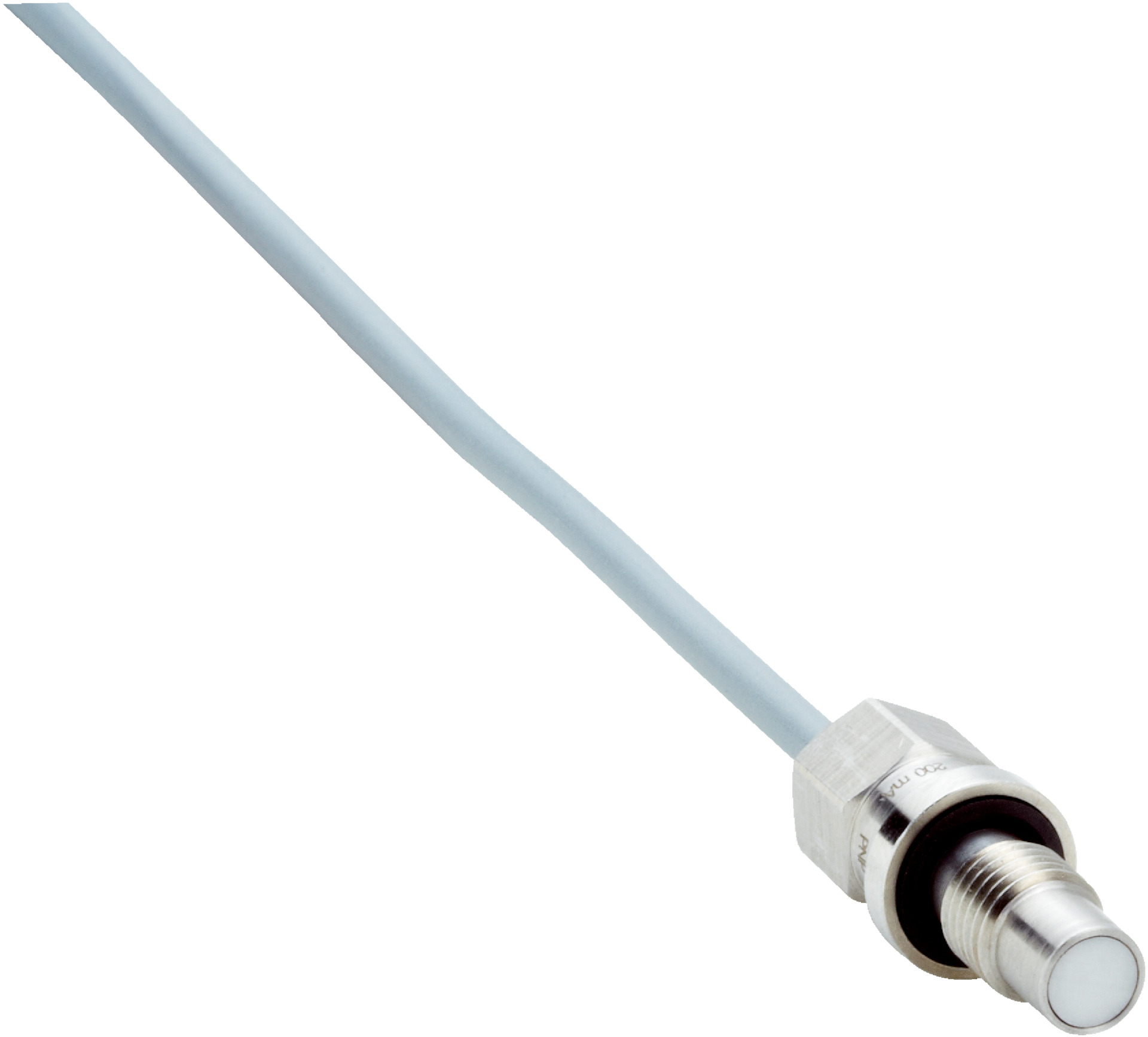

M8 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | 800 Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for hydraulic applications, featuring high pressure resistance up to 500 bar and an IP68 rated enclosure for dust and water protection. With a high switching frequency of 800 Hz and a robust stainless steel housing, this sensor is perfect for industrial automation and machinery sensing in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 800 Hz
- Sensing range (Sn): 1.5 mm
- Safe sensing range (Sa): 1.2 mm
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, 3.4 mm diameter, 2 m length
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Ambient operating temperature: –25 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Ceramics (ZrO2)
- Enclosure rating: IP68
- Dimensions (H x L x W): 30mm x 30mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Pressure resistance up to 500 bar
- Flush installation type
- High switching frequency of 800 Hz
- NPN switching output with normally open function
- Cable connection, 3-wire, 2 m length
- IP68 rated enclosure for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic and electrical sensor integration to ensure proper mounting and wiring.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high temperature and vibration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP08-1B5NSVU2S sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure and temperature resistance.
