M8 Inductive Proximity Sensor | IP67 Rated | 2.5mm Sensing Range | 4000Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 2.5 mm and a high switching frequency of 4,000 Hz. With an IP67 enclosure rating, it ensures protection against dust and water, making it ideal for harsh environments. This sensor is perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | IP67 Rated | 2.5mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040860
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Switch, SICK M8 Sensor, Inductive Sensor M8 Thread
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

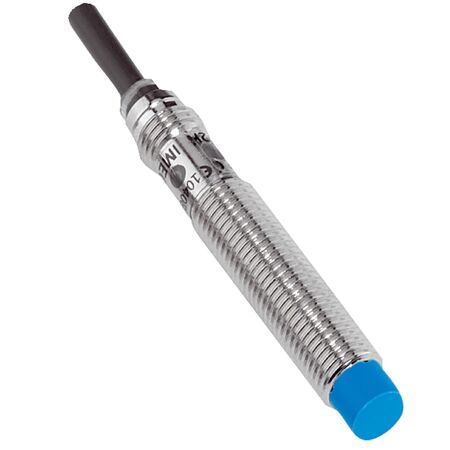

The SICK IME08-2N5POZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
