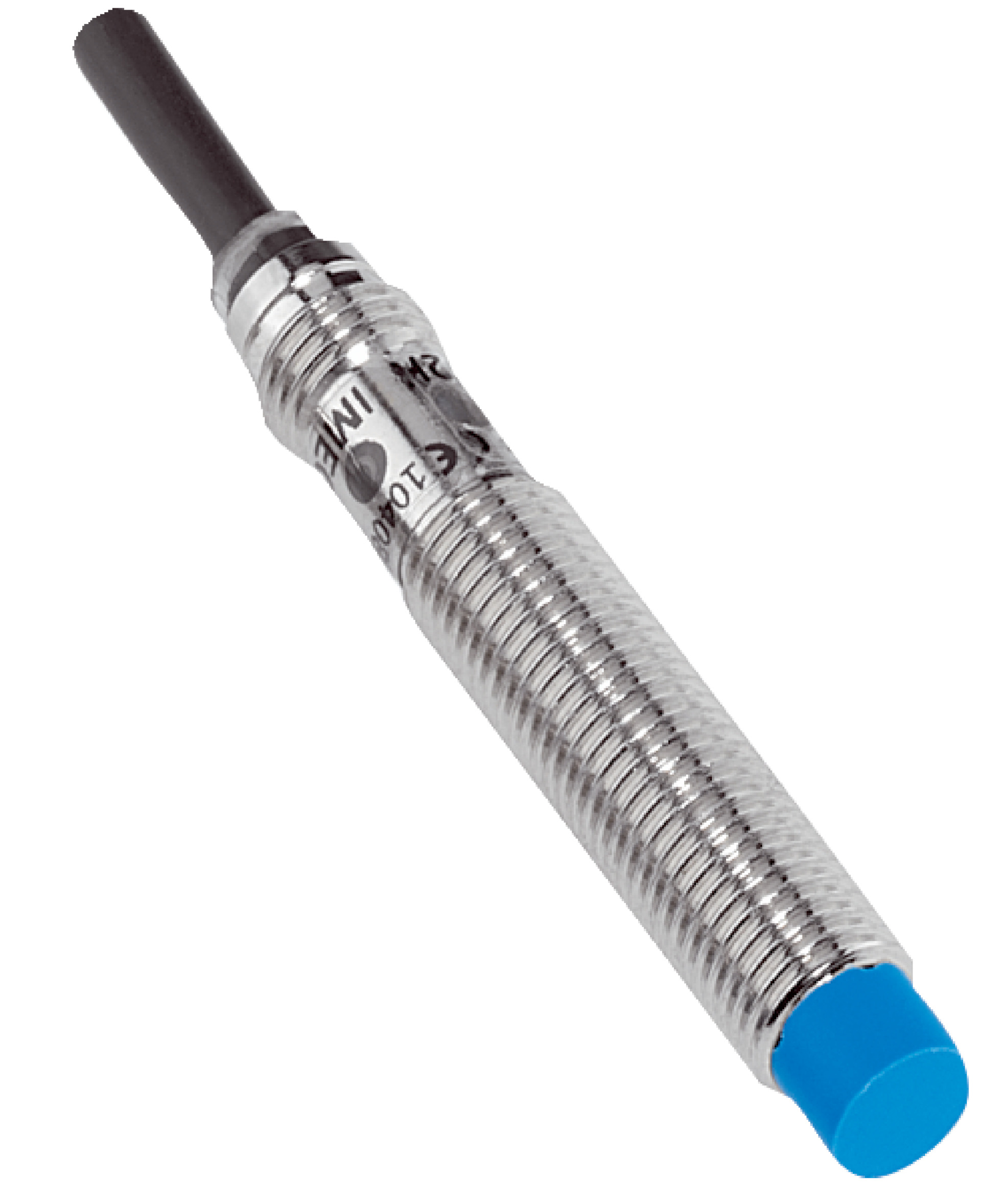

M8 Inductive Proximity Sensor | IP67 Rated | 2.5mm Sensing Range | 4000Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a 2.5mm sensing range and a high switching frequency of 4000Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines. Built for durability, this sensor minimizes mechanical wear and maintenance, providing a long-lasting solution for your control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | IP67 Rated | 2.5mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040856
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Switch, SICK M8 Sensor, Inductive Sensor M8 Thread
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

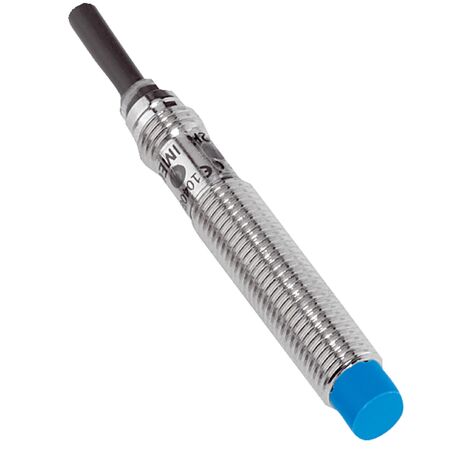

The SICK IME08-2N5PSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise non-contact sensing.
