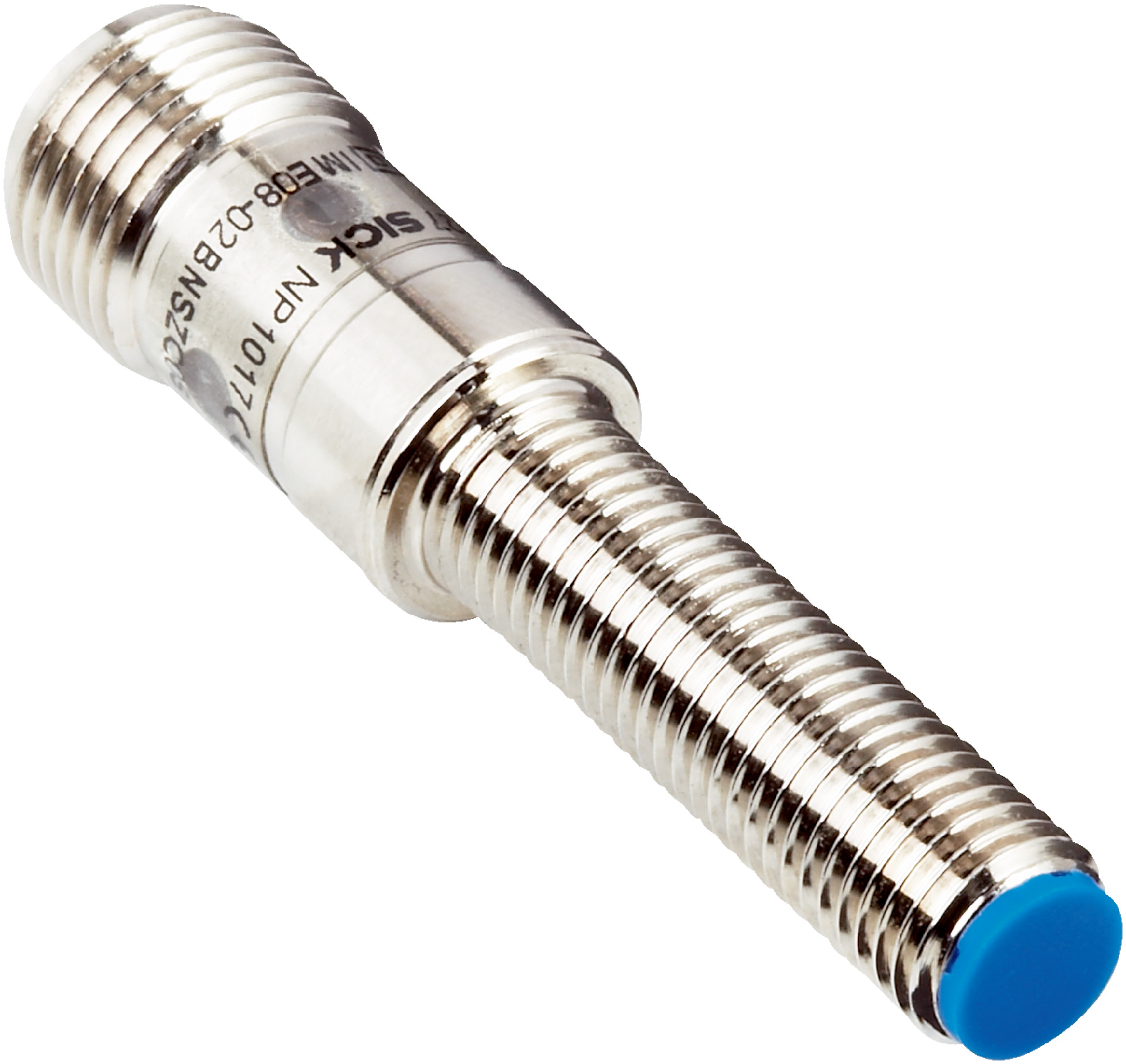

M8 Inductive Proximity Sensor | IP67 Rated | 4,000 Hz Switching Frequency | Flush Mount Design | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a high switching frequency of 4,000 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, it's perfect for manufacturing lines and automation systems requiring precise proximity sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | IP67 Rated | 4,000 Hz Switching Frequency | Flush Mount Design | by SICK
Brand: SICK
SKU: 1051740
Alternatively Known As: M8 Inductive Proximity Sensor, PNP NO Proximity Switch, Flush Mount Inductive Sensor, SICK Proximity Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic PA 66
- Thread size: M8 x 1
- Switching frequency: 4,000 Hz
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type for seamless integration
- High switching frequency of 4,000 Hz
- PNP switching output with normally open (NO) function
- Connection via male M12 4-pin connector
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Supplied with two V2A stainless steel mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper flush installation and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

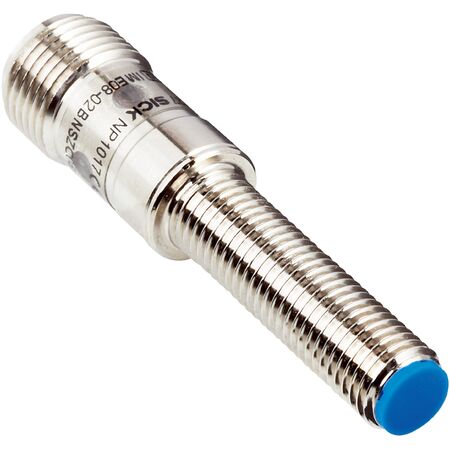

The SICK IME08-1B5PSVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise metal object detection.
