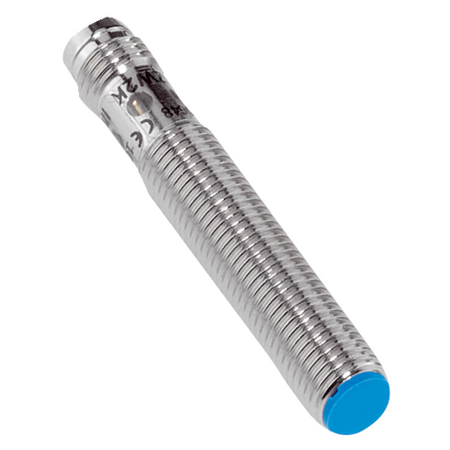

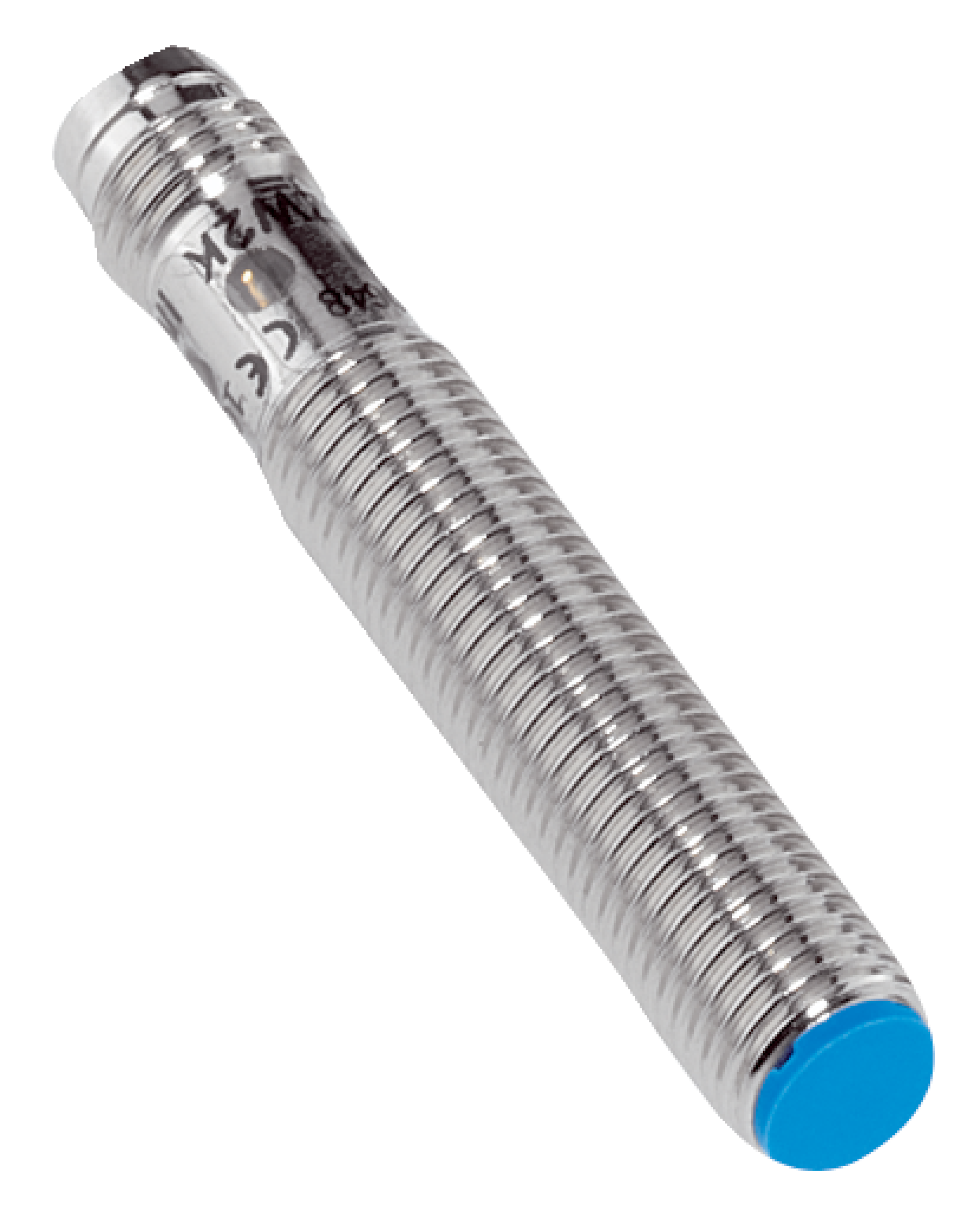

M8 Inductive Proximity Sensor | IP67 Rated | 4000 Hz Switching Frequency | NPN Normally Open Output | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a high switching frequency of 4000 Hz and an IP67 rated enclosure for dust and water protection. Ideal for manufacturing lines and safety systems, this sensor ensures accurate position sensing and is built to withstand harsh environments with shock and vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK M8 Sensor, NPN Proximity Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,000 Hz
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Output function: Normally Open (NO), NPN
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 8 mm diameter sensing face
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open (NO) switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Compliant with China RoHS for hazardous substance restrictions
Warranty Information
Warranty terms as per SICK standard product warranty policies.
Available Now
The SICK IME08-1B5NSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
