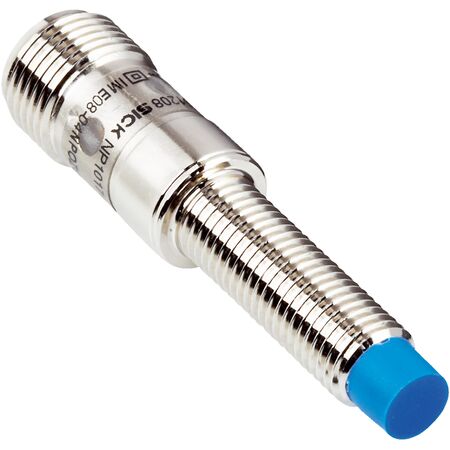

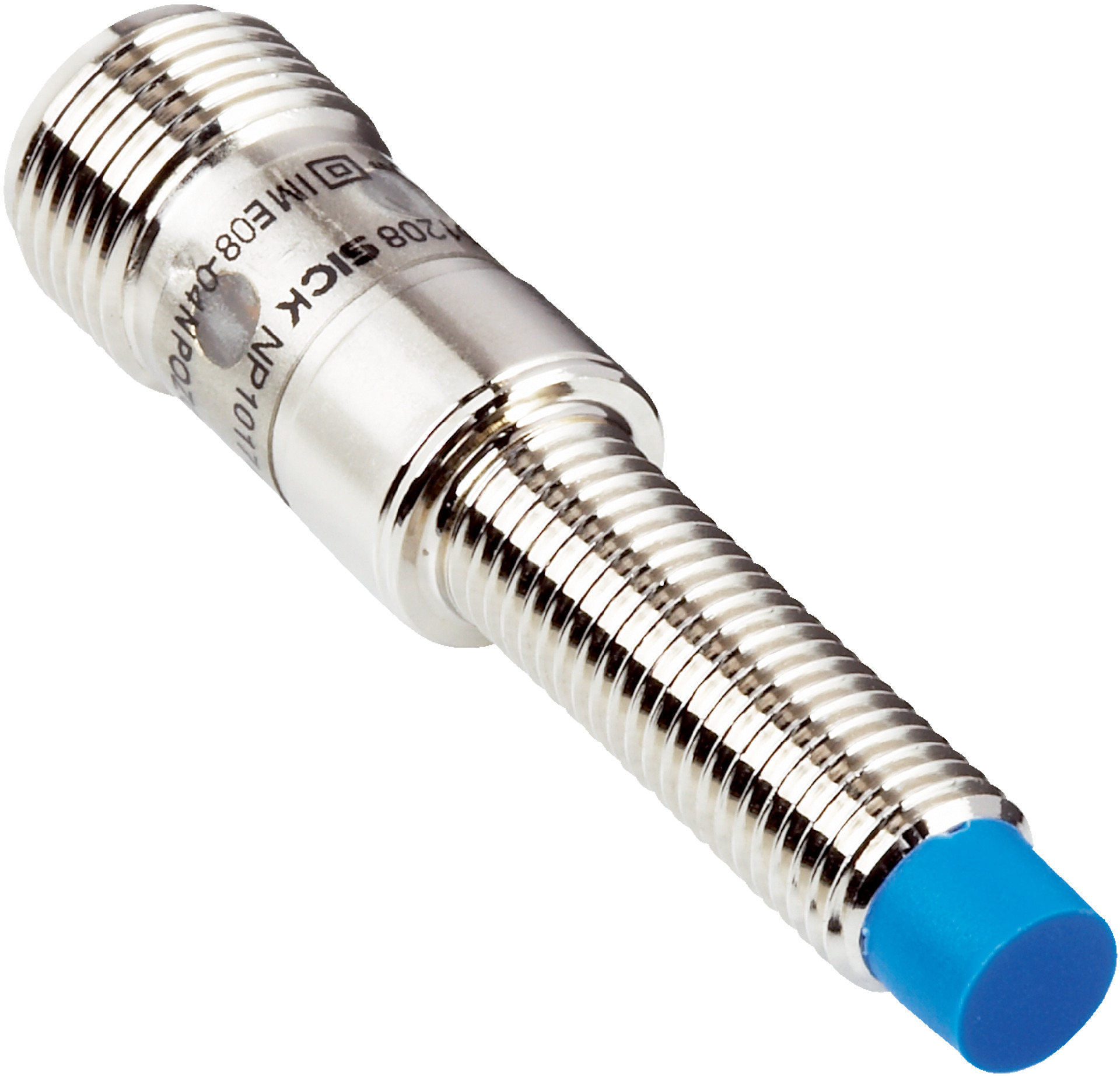

M8 Inductive Proximity Sensor | IP67 Rated | 6mm Sensing Range | NPN Normally Open Output | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 6mm sensing range and an IP67 rated enclosure for dust and water protection. With a switching frequency of up to 500 Hz and a robust brass housing, this sensor is perfect for harsh environments and non-contact switching applications, ensuring durability and efficiency in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 3-wire
- Output function: Normally open (NO), NPN
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M8 x 1
- Thread length: 23 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Non-flush installation type
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-06NNSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
