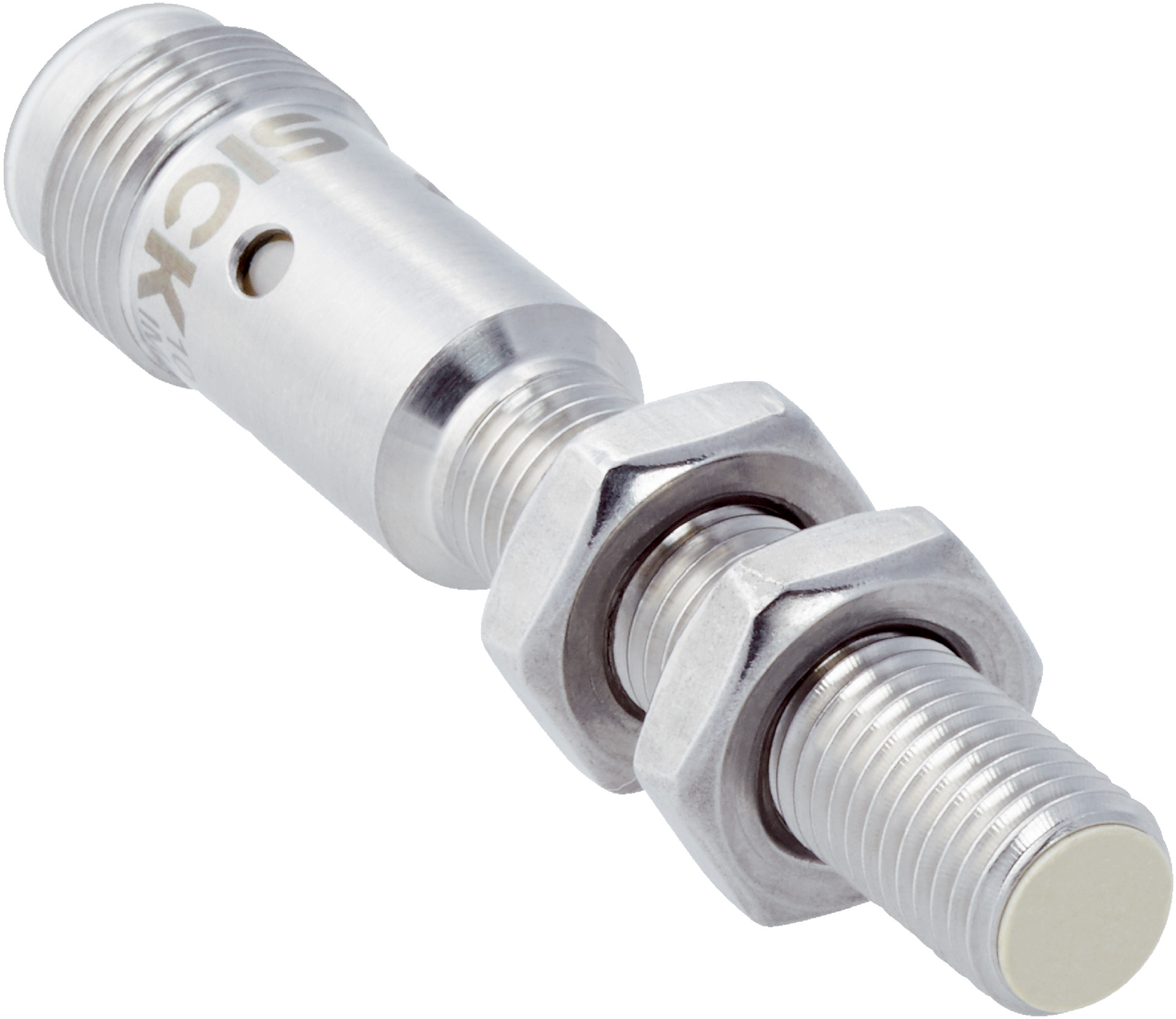

M8 Inductive Proximity Sensor | IP67 Rated | Flush Mount Design | PNP Output | by SICK
The M8 Inductive Proximity Sensor is designed for reliable sensing in hygienic and explosive environments. With an IP67 rating, it offers dust and water protection, making it ideal for washdown zones. Featuring a sensing range of 2 mm and a switching frequency of up to 4,000 Hz, this sensor is perfect for industrial automation applications, ensuring safety and efficiency in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Ambient operating temperature: –20 °C to +85 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Thread length: 32 mm
- Tightening torque max: 14 Nm
- ATEX marking: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency up to 4,000 Hz
- PNP switching output with NO function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Resistant to cleaning agents
- Visual adjustment indicator
- IO-Link communication interface
- Mounting nut included with V4A stainless steel cable housing/cover
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and ATEX-rated equipment to ensure compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions
- Explosive areas requiring safe sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now

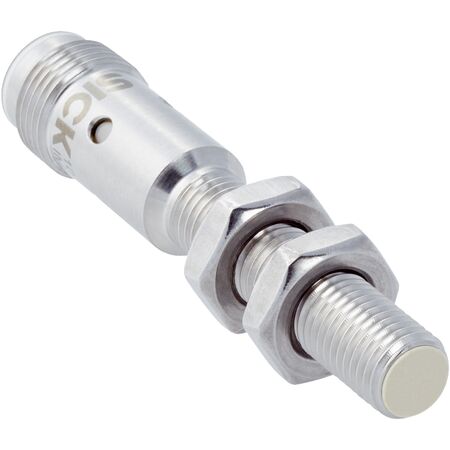

The SICK IMF08-02BPSNC0SX01 inductive sensor is available for immediate purchase, ideal for industrial automation in hygienic, washdown, and explosive environments.
