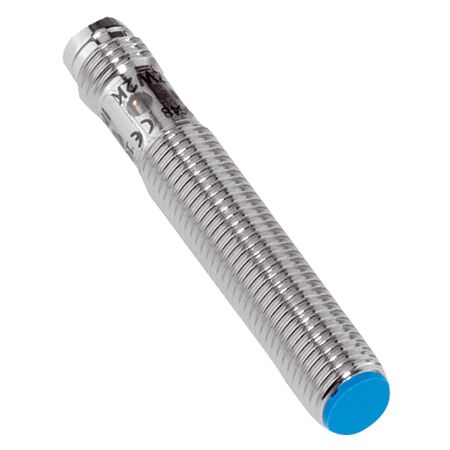

M8 Inductive Proximity Sensor | IP67 Rated | High Switching Frequency | Flush Mount Design | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an IP67 enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and a sensing range of 1.5 mm, it's perfect for position sensing in manufacturing lines and metal detection in machinery. Built with durable brass housing, this sensor ensures long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | IP67 Rated | High Switching Frequency | Flush Mount Design | by SICK
Brand: SICK
SKU: 1040838
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK M8 Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 8 mm diameter
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,000 Hz
- PNP switching output with NO output function
- Connector M8, 3-pin connection type
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-1B5PSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
