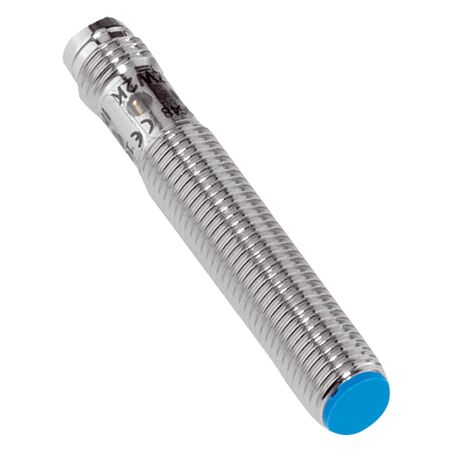

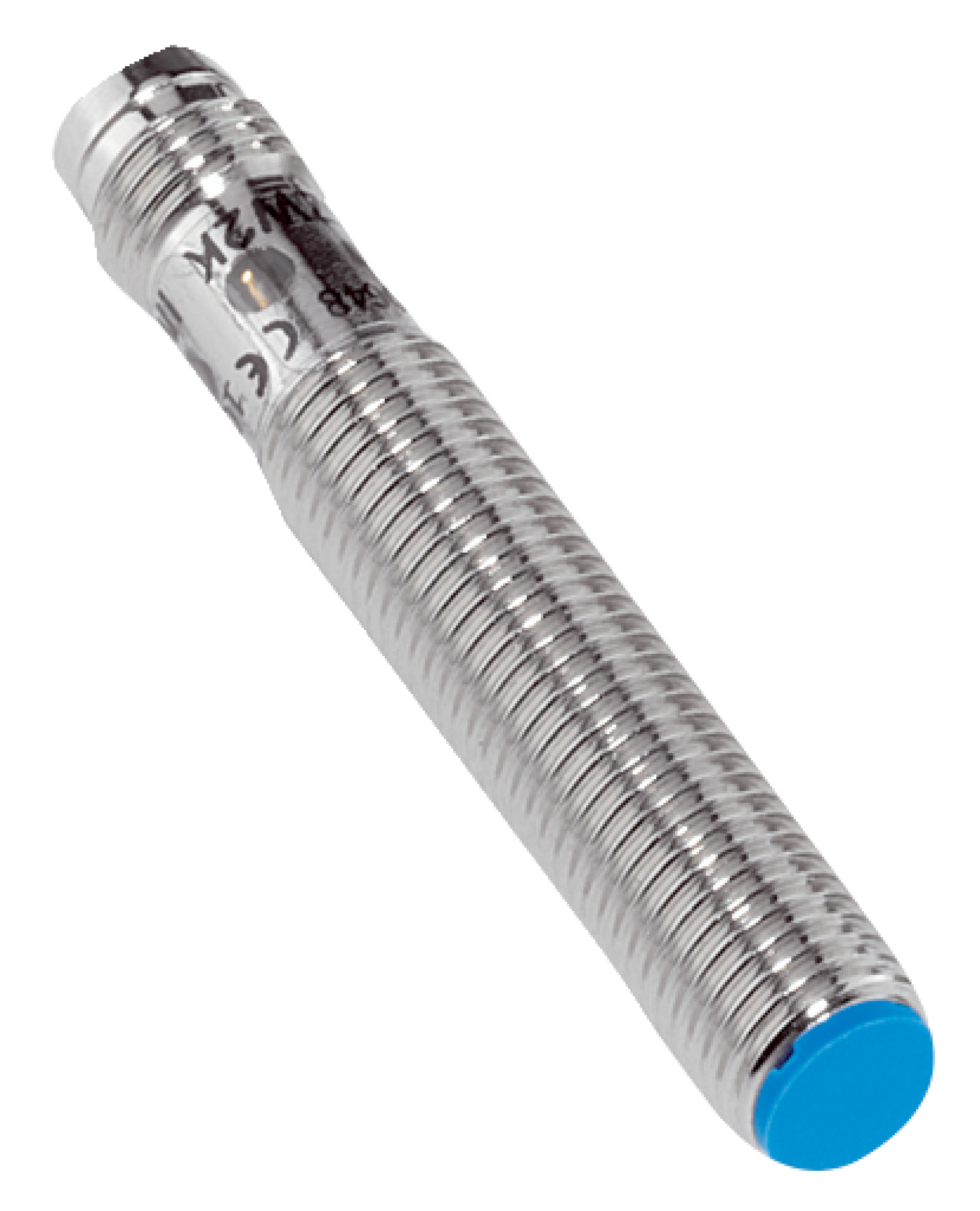

M8 Inductive Proximity Sensor | IP67 Rated | NPN NO Output | Quasi-Flush Installation | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a sensing range of 4 mm and a switching frequency of up to 500 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 50 mm
- Thread length: 34 mm
- Max tightening torque: ≤ 5 Nm
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with diameter 8 mm
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Connector M8, 3-pin connection type
- Electrical wiring DC 3-wire
- IP67 rated enclosure for dust and water protection
- Quadruple sensing range for enhanced detection
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- High resistance to shock and vibration reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-04BNSZT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
