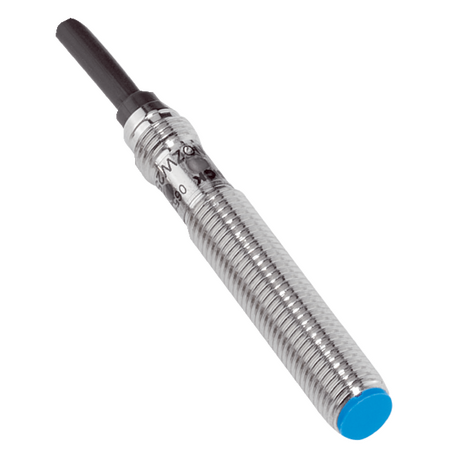

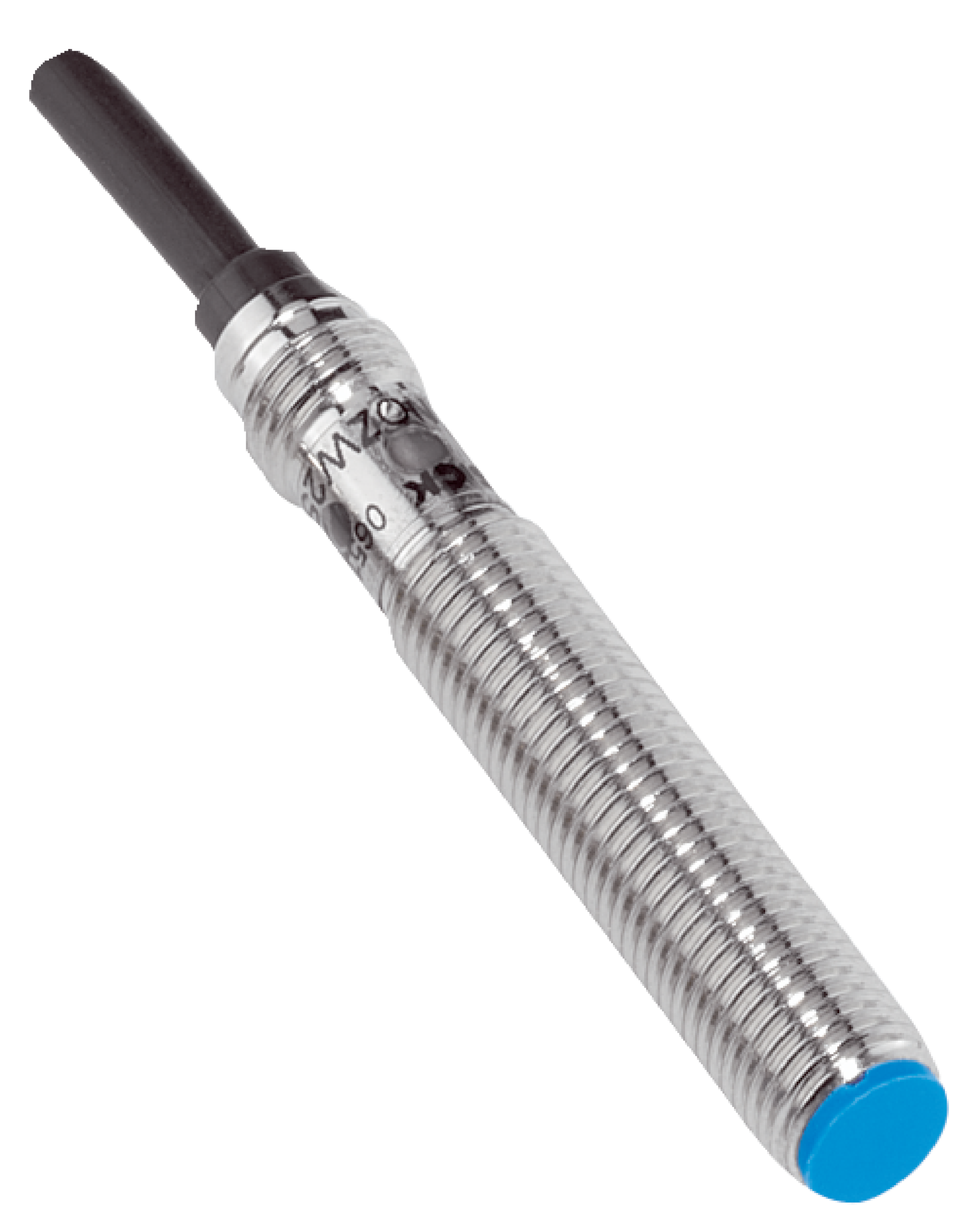

M8 Inductive Proximity Sensor | IP67 Rated | NPN Normally Open | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a sensing range of 2 mm and a high switching frequency of 4,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and control in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: NPN normally open
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open switching output
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-02BNSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
