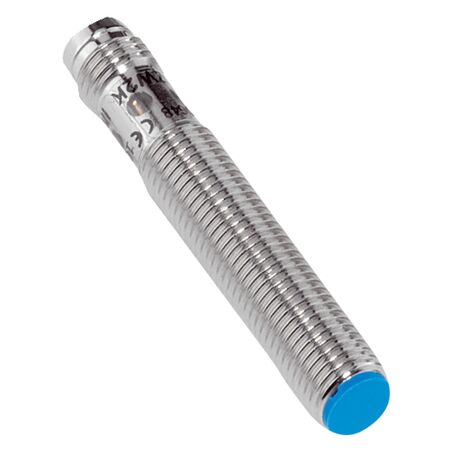

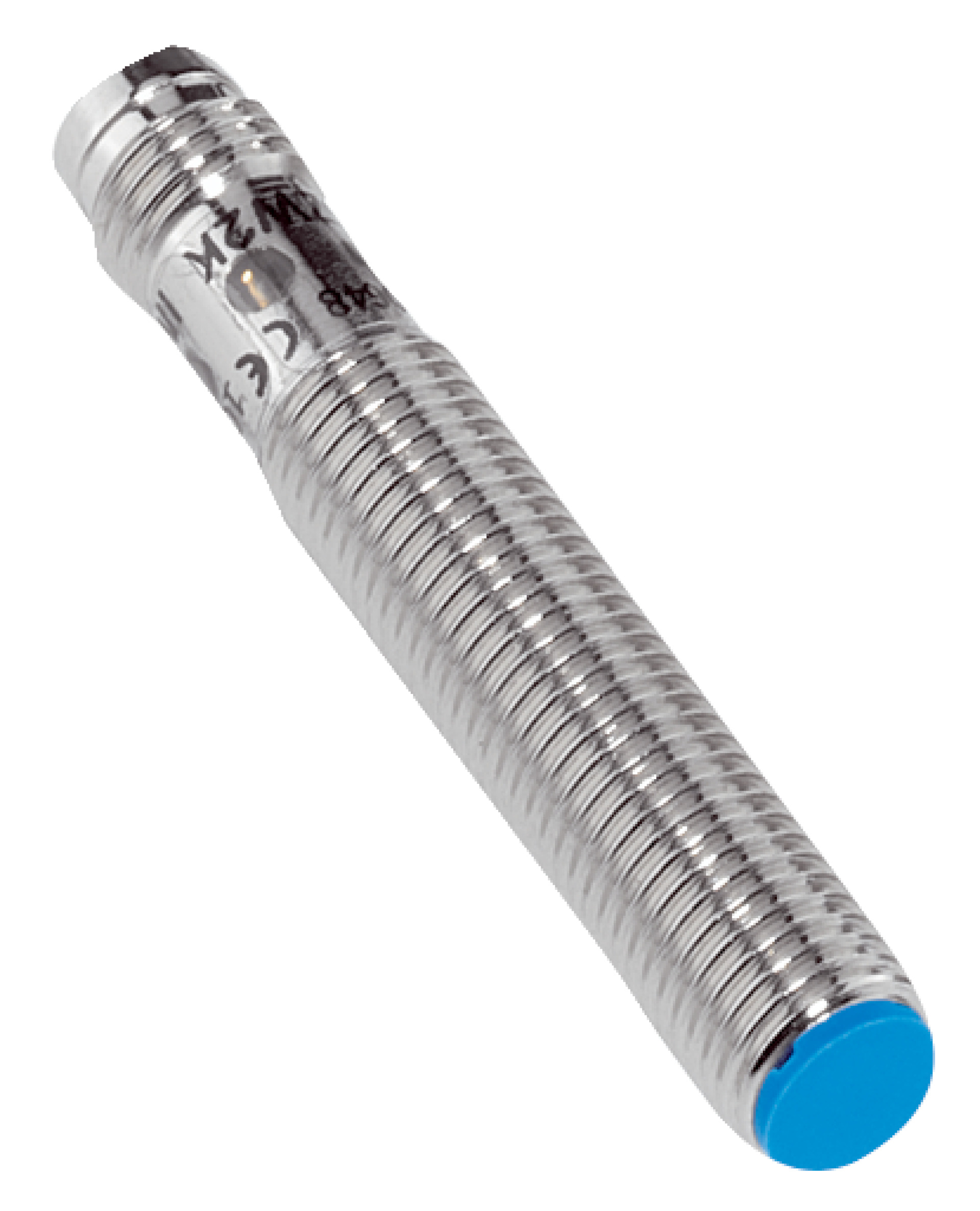

M8 Inductive Proximity Sensor | IP67 Rated | PNP Normally Open Output | 4mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and PNP normally open output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor operates within a wide temperature range of -25 °C to +75 °C, providing versatility for various applications including position sensing and metal detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching frequency: 500 Hz
- Connection type: Connector M8, 3-pin
- Output function: PNP, Normally Open (NO)
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Thread size: M8 x 1
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 8 mm diameter
- Quasi-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 500 Hz
- PNP normally open (NO) switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Quadruple sensing range for enhanced detection reliability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper mounting and electrical connection, including correct tightening torque (≤ 5 Nm) and adherence to installation distances.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-04BPSZT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
