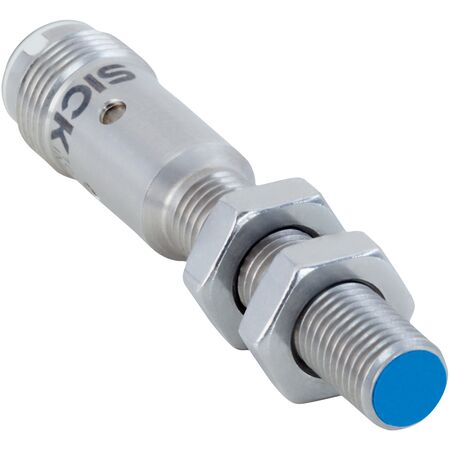

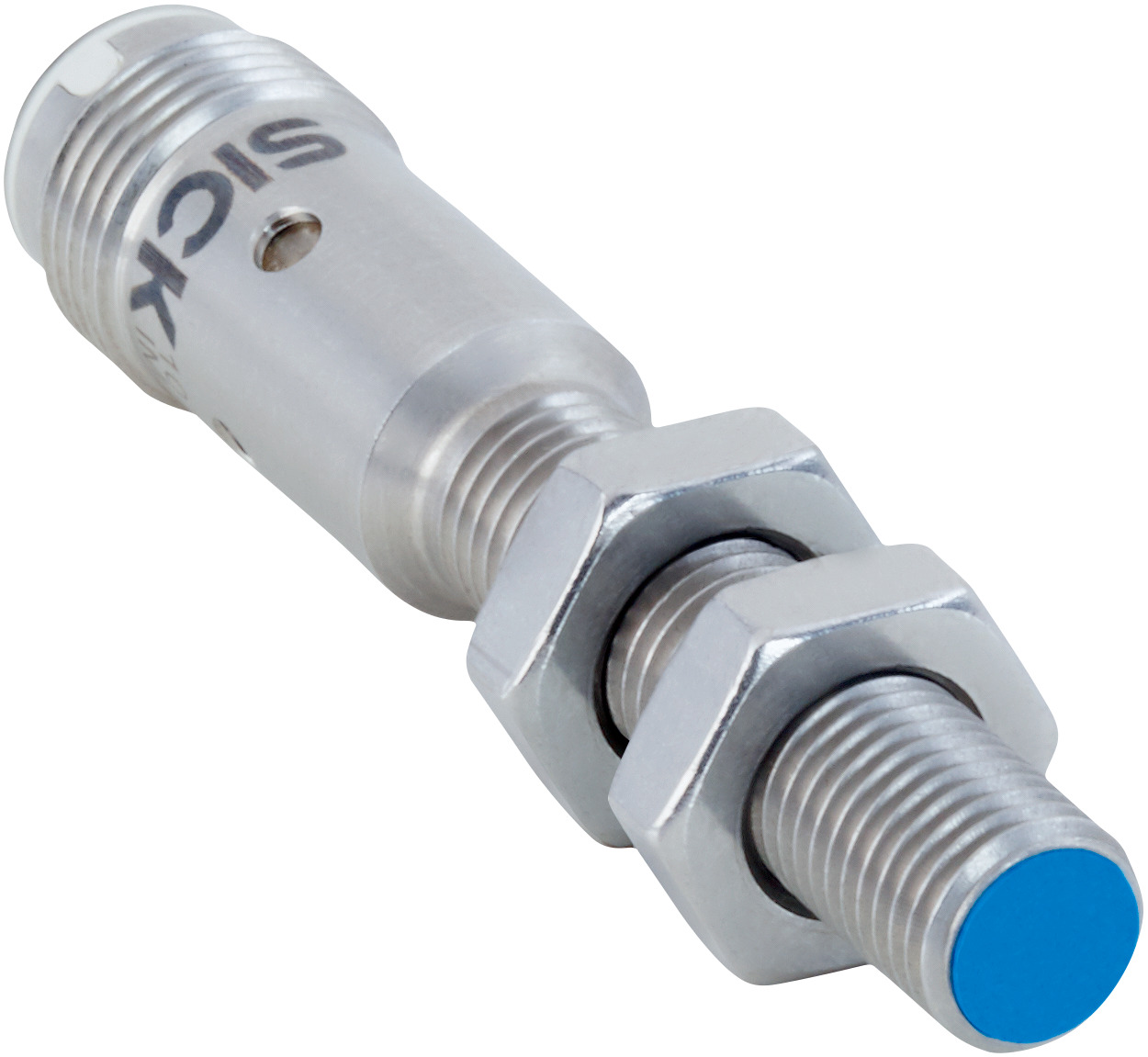

M8 Inductive Proximity Sensor | IP68 Rated | 4mm Sensing Range | PNP Normally Closed | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and IP68 rated enclosure for high protection against dust and water. Ideal for environments with coolants and lubricants, this sensor ensures safe operation with a PNP normally closed output and a switching frequency of 25 Hz, making it perfect for machine safety and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally closed
- Switching frequency: 25 Hz
- Connection type: Male M12, 4-pin connector
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Service interface: IO-Link (SICK Service only)
- Dimensions (H x L x W): 8mm x 67mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Quasi-flush installation type
- Switching frequency of 25 Hz with PNP normally closed output
- IP68 rated enclosure for high protection
- Resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMX08-04BPOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications in harsh environments.
