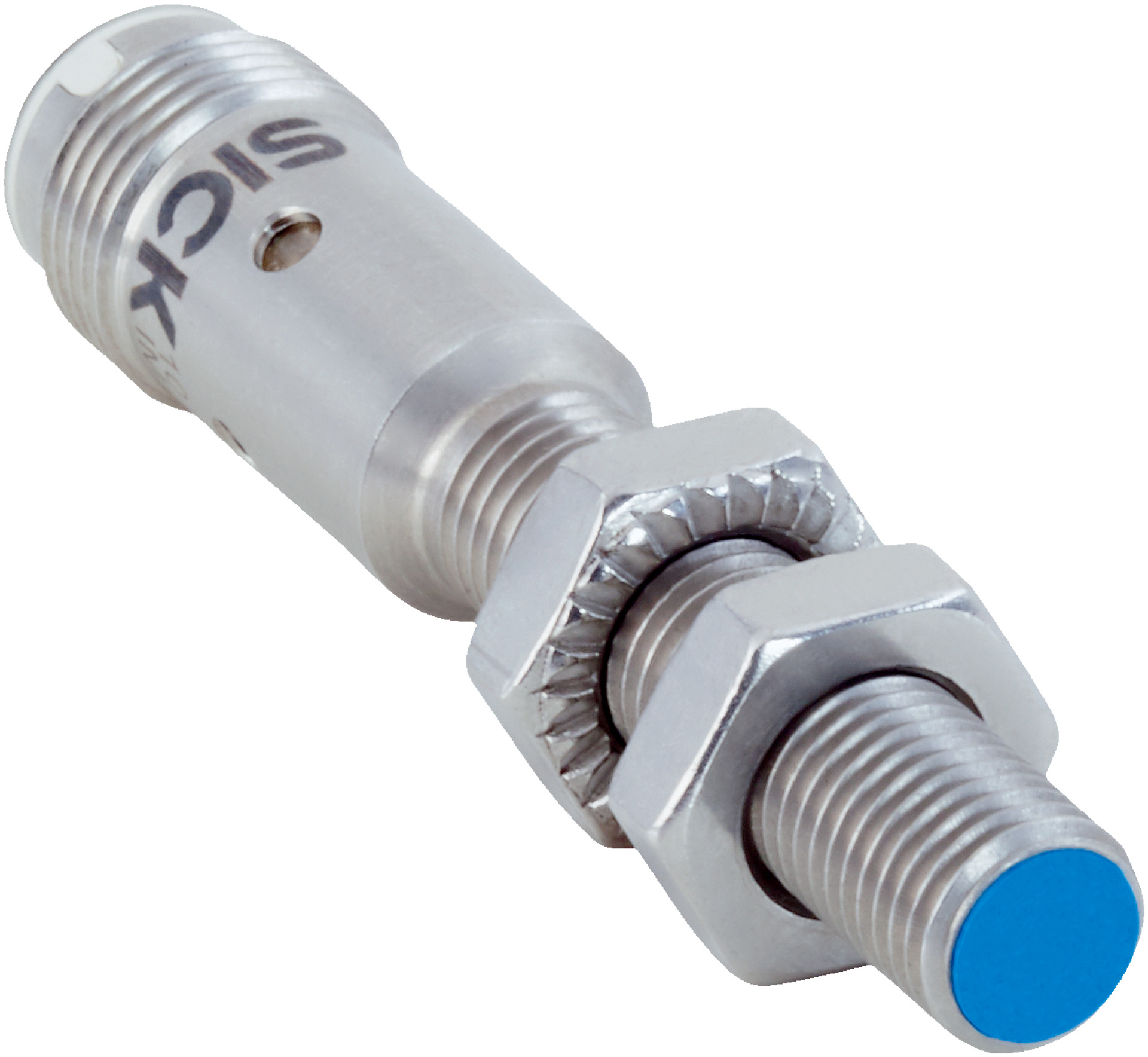

M8 Inductive Proximity Sensor | IP68 & IP69K Rated | Programmable Switching | Stainless Steel Housing | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an IP68 and IP69K enclosure rating for harsh environments. With a sensing range of 0 mm to 2 mm and up to 4 adjustable switching points, it’s perfect for applications involving coolants and lubricants. Built for durability, this sensor operates efficiently in temperatures from -40 °C to +75 °C, ensuring robust performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Switching frequency: 1000 Hz
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +75 °C
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Sensing range 0 mm to 2 mm with safe sensing range of 1.62 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 1000 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task logic functions including AND, OR, XOR, hysteresis and timer functions
- Resistant against coolant lubricants
- Communication interface IO-Link V1.1 with COM2 38.4 kBaud
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
- Operating temperature range -40 °C to +75 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connections.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

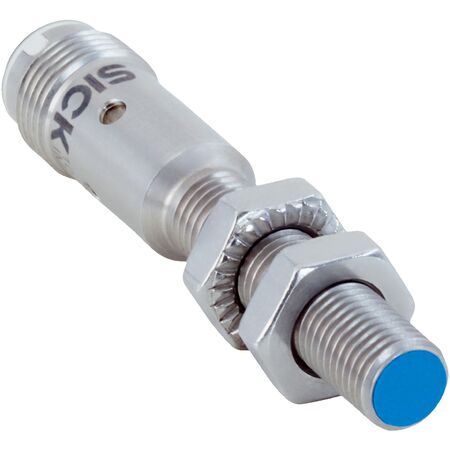

The SICK IMC08-02BPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
