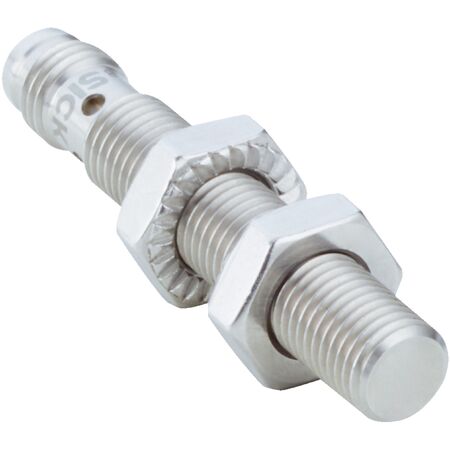

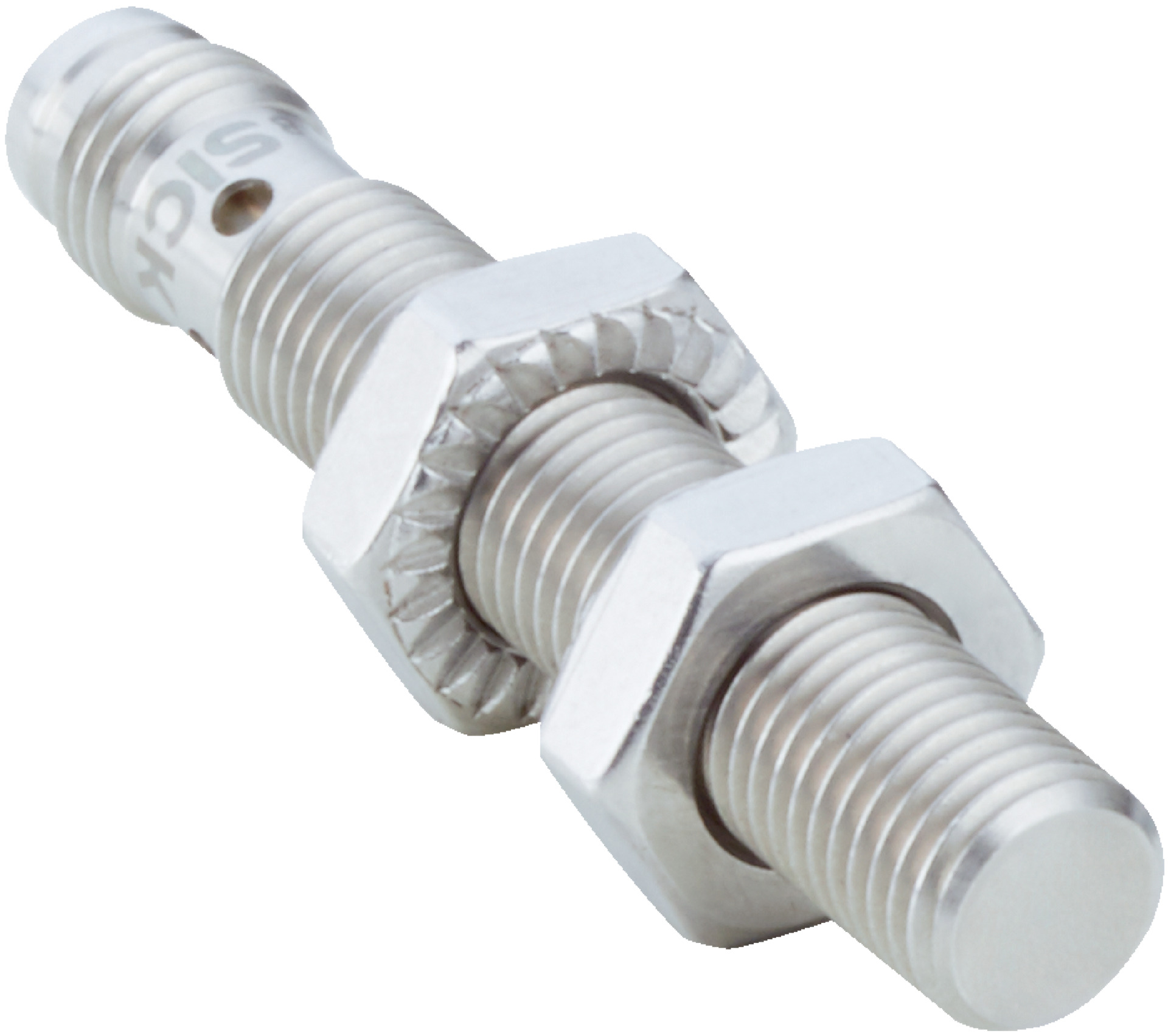

M8 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection against dust and water. With a sensing range of 2mm and a switching frequency of 100 Hz, it's perfect for detecting objects in harsh environments, including those with coolants and lubricants. Built for durability, this sensor ensures reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, NC function
- Switching frequency: 100 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A
- Shock resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Flush installation type
- Sensing range Sn of 2 mm with safe sensing range Sa of 1.62 mm
- Switching frequency of 100 Hz
- NPN switching output with NC output function
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High protection rating minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI08-02BNOVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
