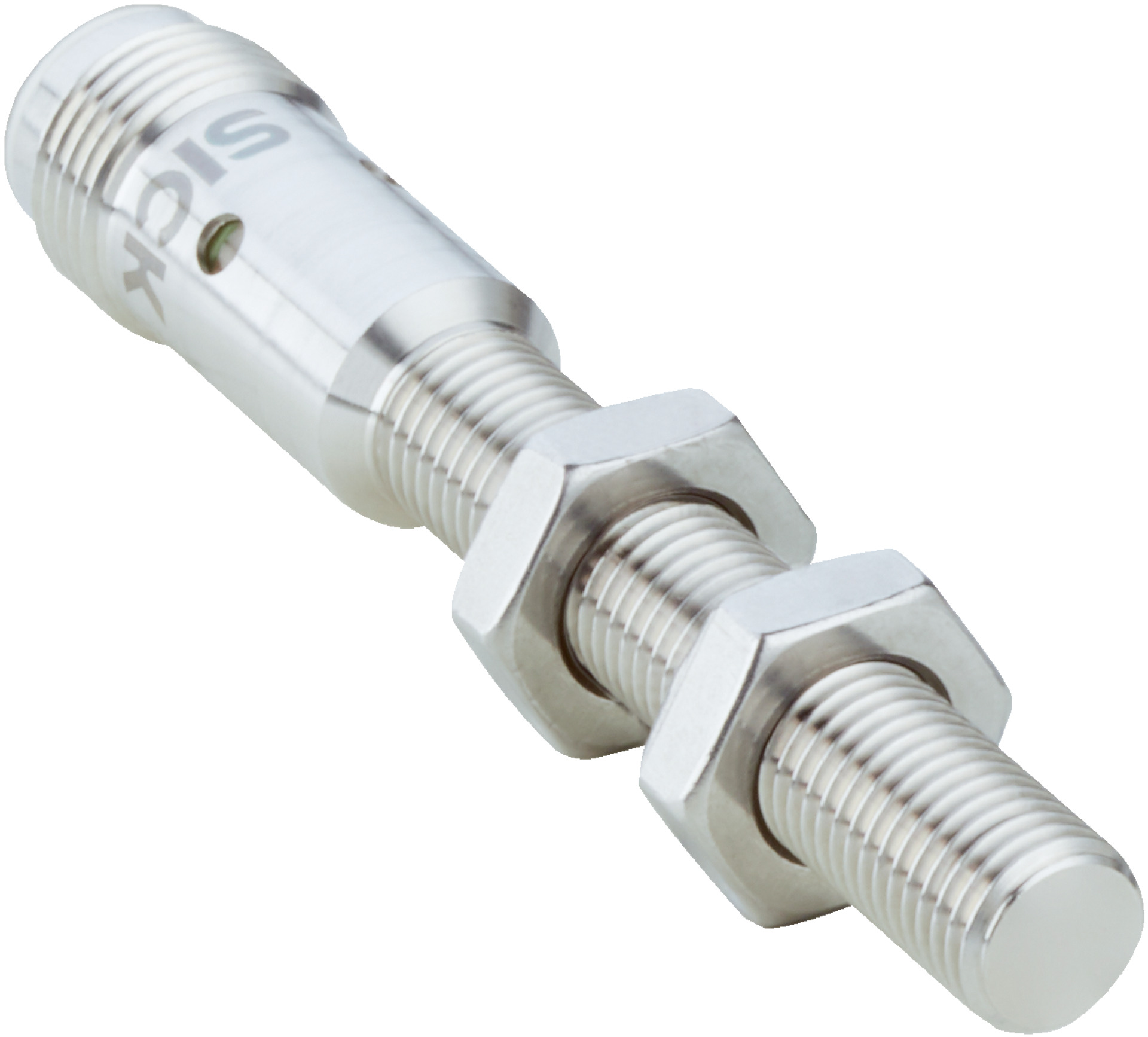

M8 Inductive Proximity Sensor | IP68 Rated | Stainless Steel Housing | Flush Mount Design | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in hygienic and washdown zones. With an IP68 rating and a robust stainless steel housing, it withstands harsh conditions while ensuring precise sensing. Ideal for industrial automation, this sensor features a sensing range of 2 mm and is perfect for applications requiring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Switching output: NPN, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 8mm x 70mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency of 100 Hz
- NPN normally open (NO) switching output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Includes two V4A stainless steel mounting nuts
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

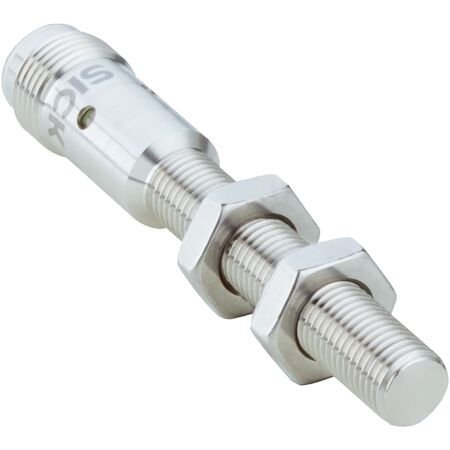

The SICK IMI08-02BNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
