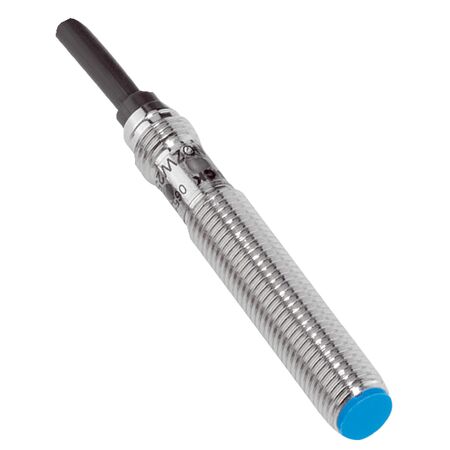

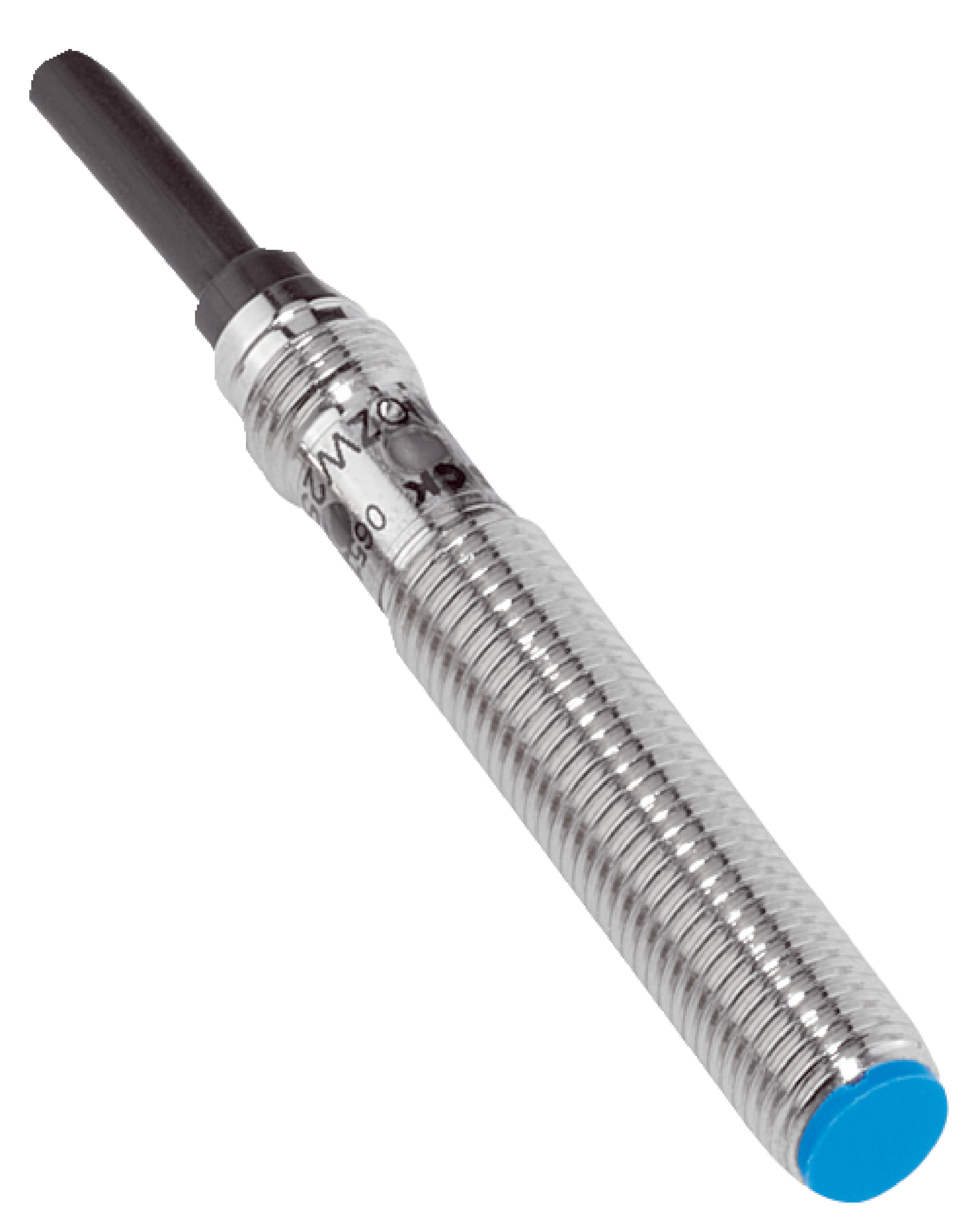

M8 Inductive Proximity Sensor | NPN NC Output | 2mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 2mm sensing range and NPN normally closed output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor operates at a high switching frequency of 4,000 Hz, perfect for position sensing in manufacturing lines and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | NPN NC Output | 2mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040884
Alternatively Known As: M8 Inductive Proximity Sensor, NPN NC Proximity Sensor, Flush Mount Inductive Sensor, SICK IME08 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,000 Hz
- Sensing range (Sn): 2 mm
- Safe sensing range (Sa): 1.62 mm
- Output function: Normally closed (NC), NPN
- Electrical wiring: DC 3-wire
- Continuous current (Ia): ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M8 x 1
- Housing length: 52 mm
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 52mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 2 mm sensing range
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally closed switching output
- IP67 rated enclosure for dust and water protection
- Cable connection type: 3-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-02BNOZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
