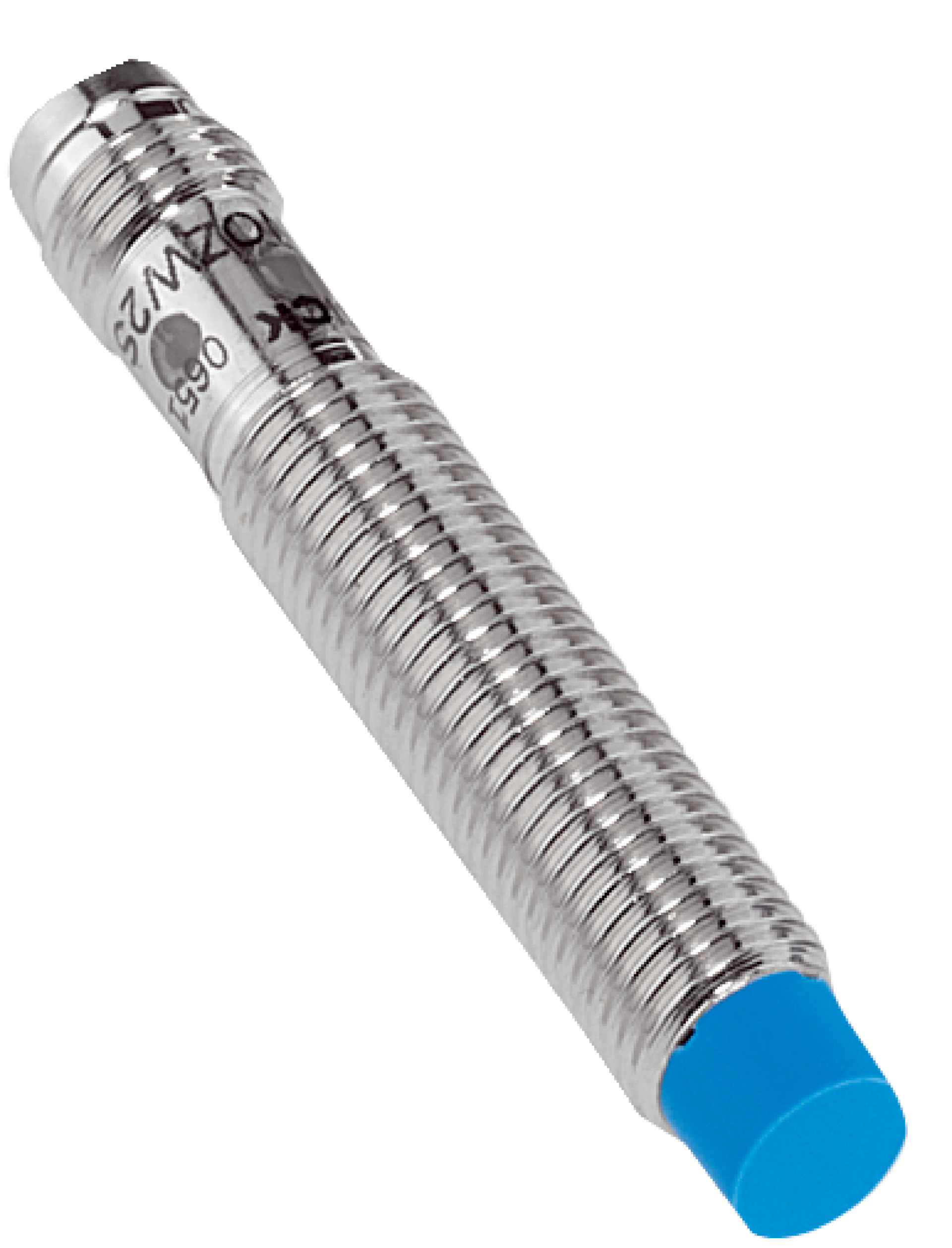

M8 Inductive Proximity Sensor | NPN Normally Closed | IP67 Rated | 2.5mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 2.5 mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and a robust nickel-plated brass housing, this sensor is perfect for non-contact switching in machinery and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | NPN Normally Closed | IP67 Rated | 2.5mm Sensing Range | by SICK
Brand: SICK
SKU: 1040866
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Switch, SICK Proximity Sensor M8, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally closed
- Connection type: Connector M8, 3-pin
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- NPN normally closed switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, steel, nickel-plated
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting torque compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

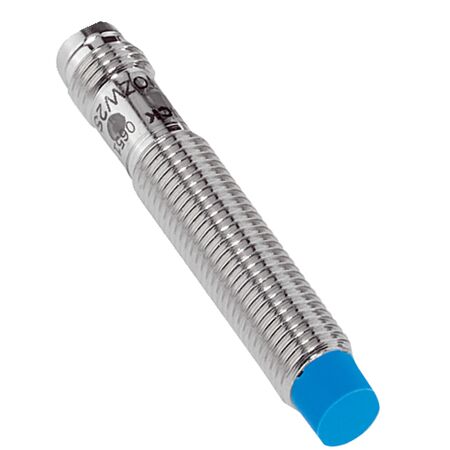

The SICK IME08-2N5NOZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
