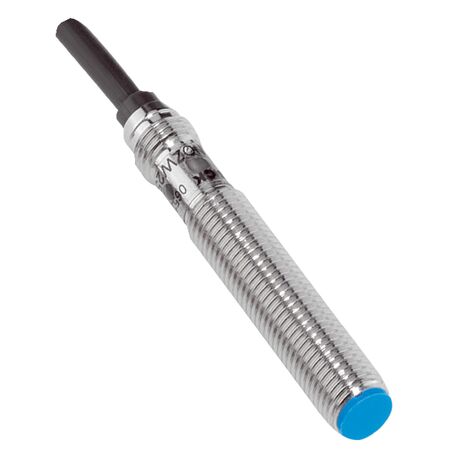

M8 Inductive Proximity Sensor | NPN Normally Open Output | IP67 Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 2mm sensing range and NPN normally open output. With an IP67 rated enclosure, it offers robust protection against dust and water, making it ideal for flush mounting in tight spaces and ensuring consistent performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,000 Hz
- Sensing range (Sn): 2 mm
- Safe sensing range (Sa): 1.62 mm
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Continuous current (Ia): ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 3.9 mm, PVC material
- Housing length: 71.5 mm
- Thread length: 52.5 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Operating temperature: -30 °C to +75 °C
- Enclosure rating: IP67
- Output function: NPN normally open (NO)
- Connection type: Cable with AMP male connector, 3-pin, 200 mm
- Dimensions (H x L x W): 8mm x 71.5mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 2 mm sensing range
- Flush installation type
- Switching frequency up to 4,000 Hz
- NPN normally open (NO) switching output
- Cable connection with AMP male connector, 3-pin, 200 mm length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -30 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting, wiring, and compliance with safety regulations.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-02BNSZWDSS59 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring reliable flush mount sensing.
