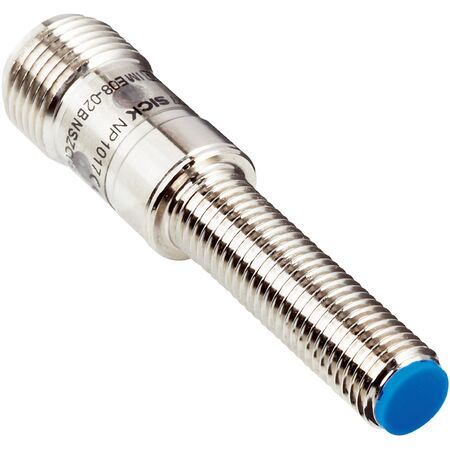

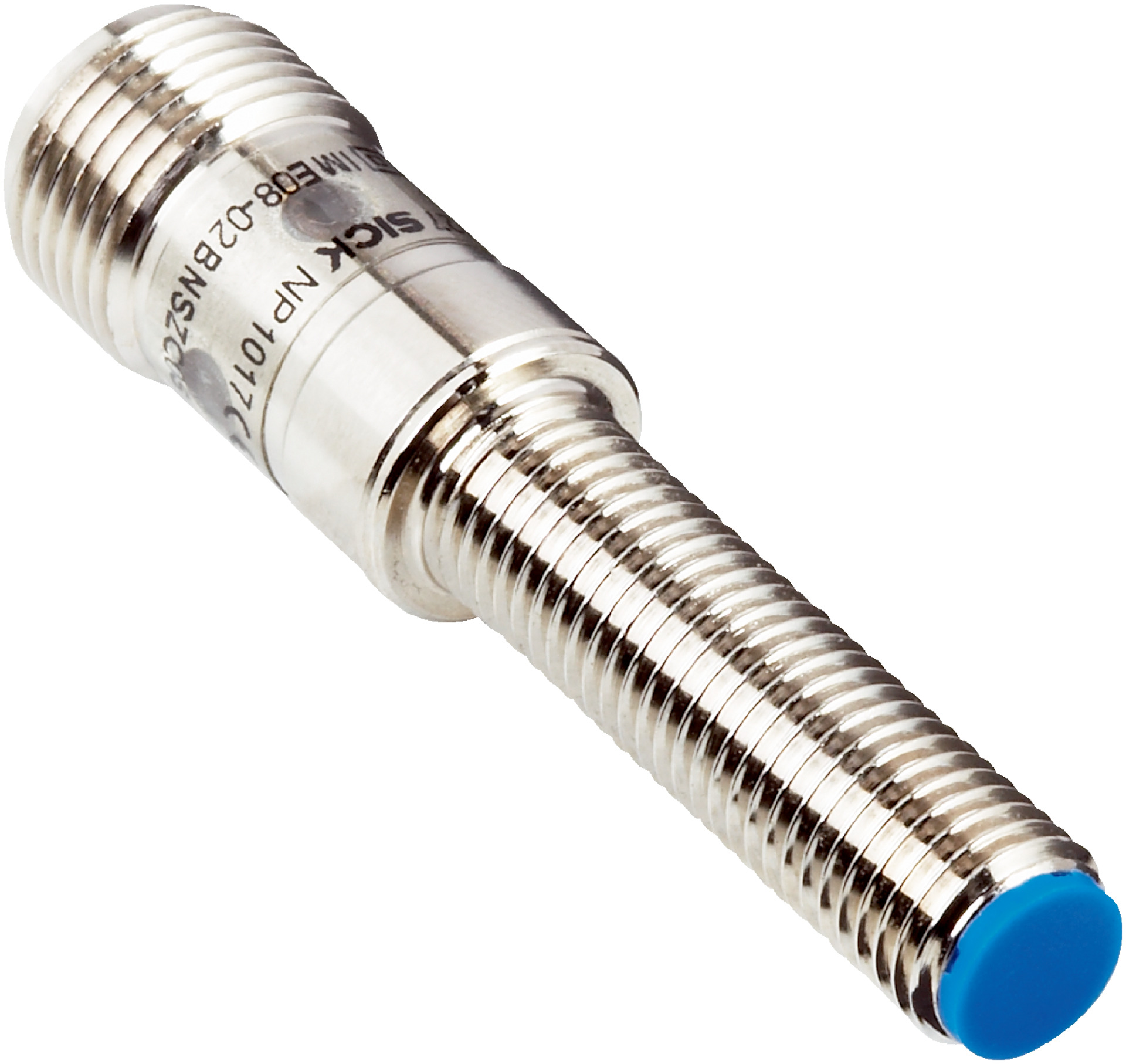

M8 Inductive Proximity Sensor | PNP Switching Output | IP67 Rated | Quasi-Flush Installation | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP switching output and an IP67 rated enclosure for dust and water protection. With a sensing range of 3 mm and shock resistance, it's perfect for manufacturing lines and safety systems, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 28 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 3 mm sensing range
- Quasi-flush installation type
- Switching frequency up to 1,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring quasi-flush sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-03BPOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable metal object detection.
