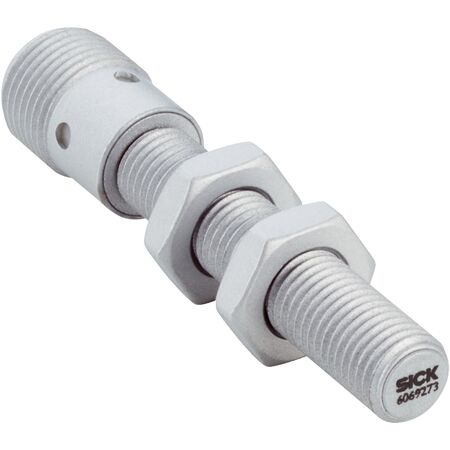

M8 Inductive Proximity Sensor | PNP Output | IP68 Rated | Flush Installation | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP switching output and an IP68 rated enclosure for high protection. With a durable PTFE coated stainless steel housing and a sensing range of 2 mm, it's perfect for harsh environments and welding applications, ensuring long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 150 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature range: -30 °C to +85 °C
- Housing material: PTFE coated stainless steel
- Sensing face material: Plastic with PTFE coating
- Protection class: II
- Switching output: PNP, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 8mm x 57mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with PTFE coating and stainless steel
- Thread size M8 x 1 with 2 mm sensing range
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with NO function
- Connection via male M12, 4-pin connector
- IP68 rated enclosure for high protection
- Magnetic-field-resistant with reduction factor 1
- Includes mounting nuts and washers with PTFE coating
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation guidelines to ensure proper flush mounting and electrical connection.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Magnetic-field-resistant sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PTFE coating and stainless steel housing extend product life reducing waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMR08-02BPSTC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
