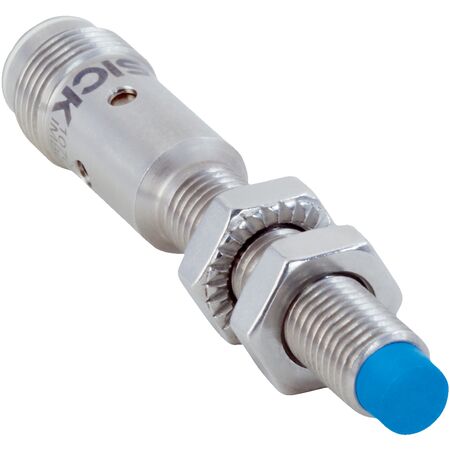

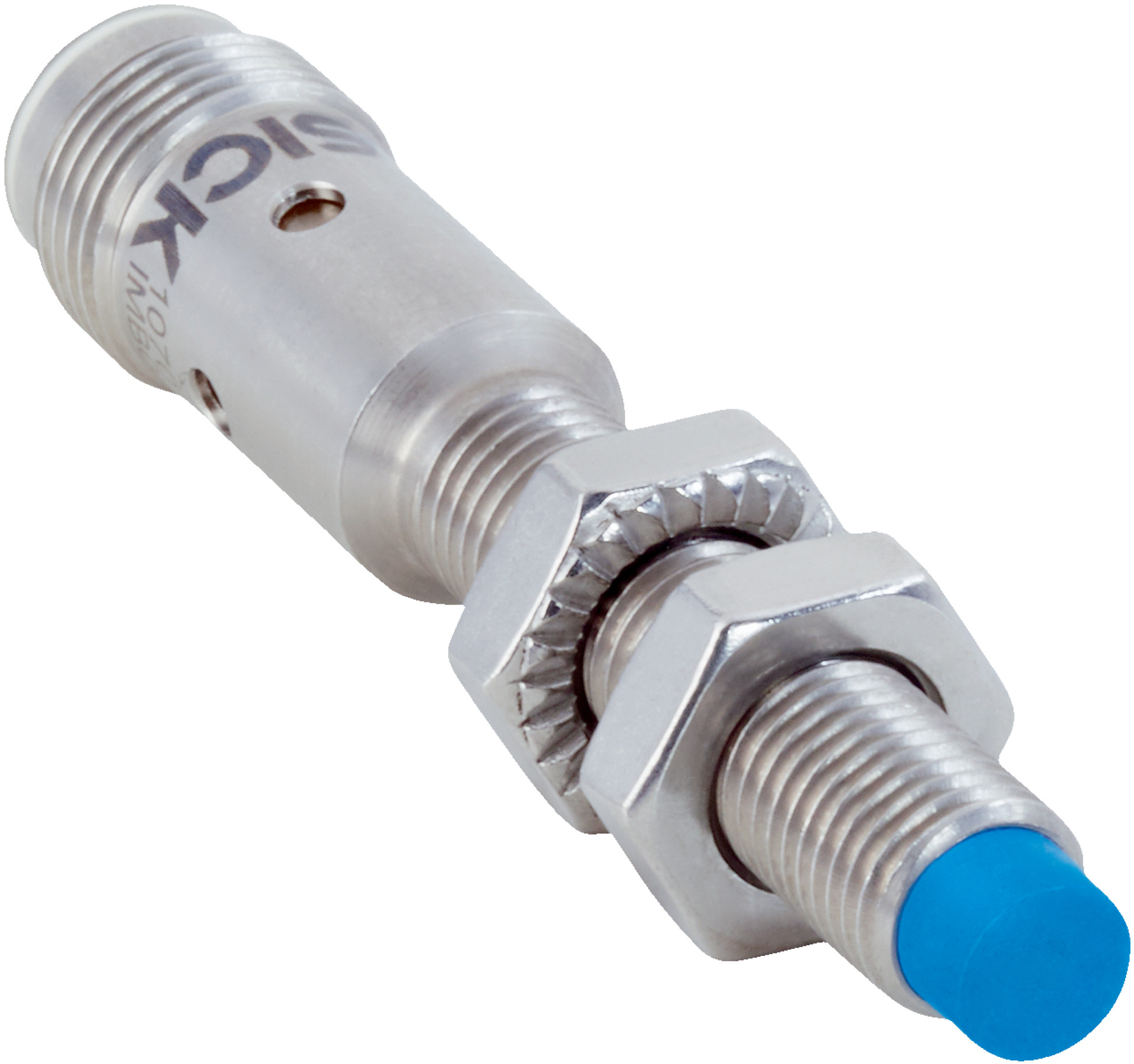

M8 Inductive Proximity Sensor | PNP Output | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of up to 4 mm and programmable hysteresis. With an IP68 and IP69K rating, this sensor is perfect for harsh environments, ensuring durability against coolants and lubricants. Ideal for applications requiring robust sensing, it offers up to 4 adjustable switching points and a fast switching frequency of 1000 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Thread length: 28 mm
- Tightening torque max: 14 Nm
- Resolution typical: 10 μm (0-1 mm), 20 μm (1-3 mm), 50 μm (3-4 mm)
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 5 ms
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range up to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 1000 Hz
- Non-flush installation type
- Male connector M12, 4-pin connection
- PNP switching output with programmable output characteristic
- Electrical wiring DC 4-wire
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants
- Smart Task functionality with logic and timer functions
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
- IO-Link V1.1 communication interface with 5 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and proper electrical connection.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMC08-04NPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
