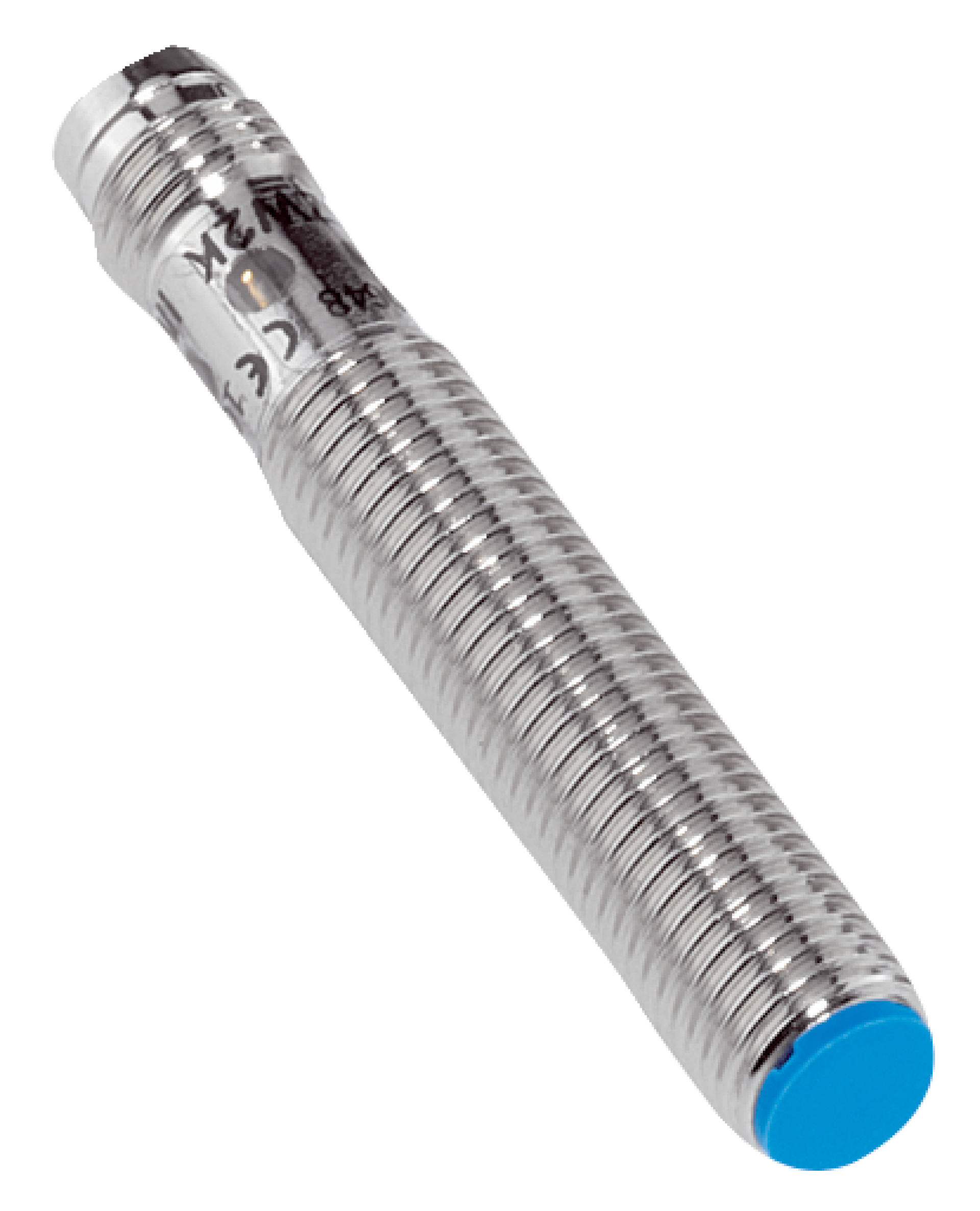

M8 Inductive Proximity Sensor | PNP NC | IP65 Rated | Stainless Steel Housing | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP NC output and an IP65 rated enclosure for dust and water protection. With a sensing range of 2 mm and a robust stainless steel housing, this sensor is perfect for flush mount applications in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | PNP NC | IP65 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1048214
Alternatively Known As: M8 Inductive Proximity Sensor, PNP NC Sensor, Flush Mount Inductive Sensor, Stainless Steel Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic PA 66
- Switching output: PNP, NC
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP65
- Dimensions (H x L x W): 8mm x 56mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- M8 x 1 thread size with 8 mm diameter
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency up to 4,000 Hz
- PNP switching output with NC function
- Connector M8, 3-pin connection type
- IP65 rated enclosure for dust and water protection
- Continuous thread with 2 LEDs for status indication
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mount sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- RoHS compliant reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

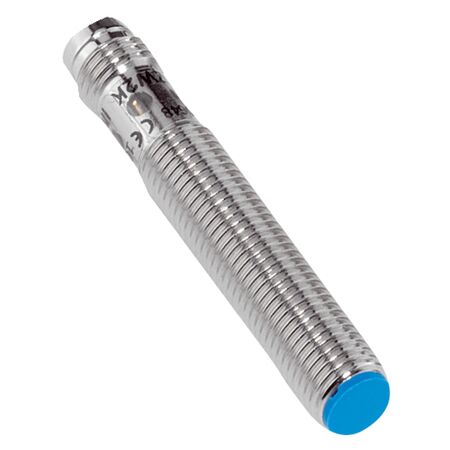

The SICK IME08-02BPOVT0SS08 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
