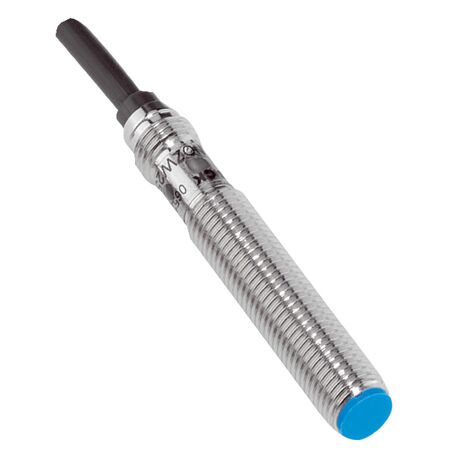

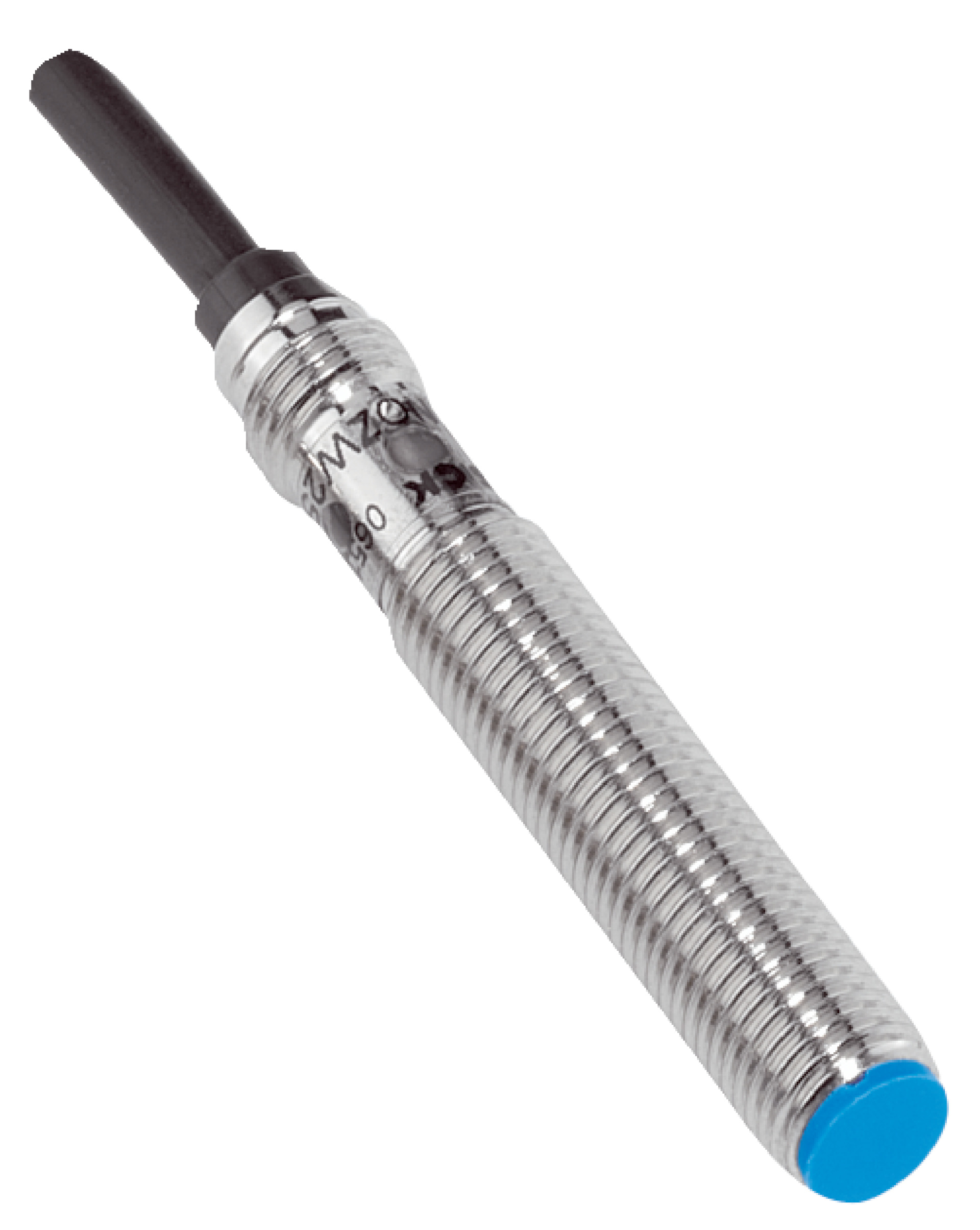

M8 Inductive Proximity Sensor | PNP NO Output | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP normally open output and an impressive switching frequency of 4,000 Hz. With an IP67 enclosure rating, it ensures protection against dust and water, making it ideal for flush mounting in manufacturing lines and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | PNP NO Output | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1047608
Alternatively Known As: M8 Inductive Proximity Sensor, PNP NO Proximity Switch, IME08 Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open (NO)
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 3.1 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-02BPSZWDSS06 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
