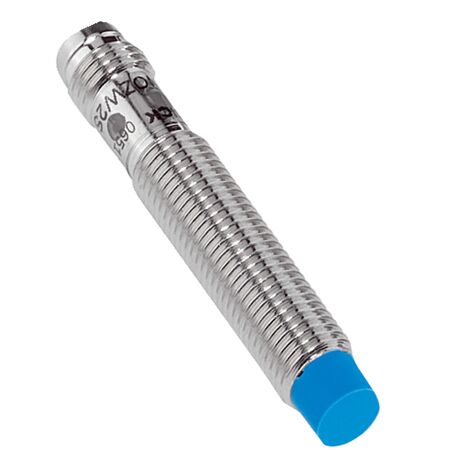

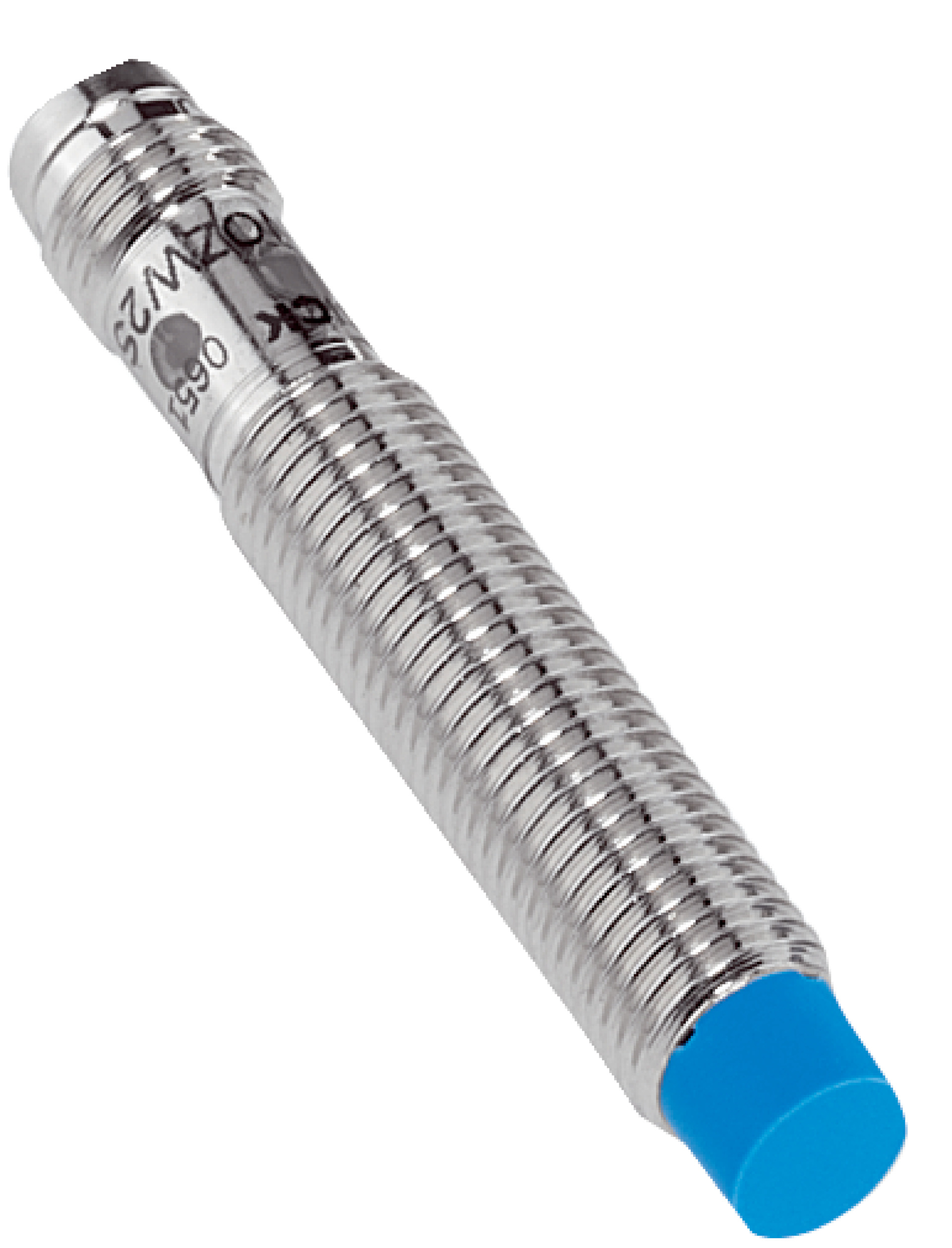

M8 Inductive Proximity Sensor | PNP Normally Closed Output | IP67 Enclosure | -25°C to +75°C Operating Temp | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a PNP normally closed output and an IP67 enclosure for dust and water protection. With a sensing range of 6 mm and an operating temperature from -25°C to +75°C, this sensor is perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally closed (NC)
- Switching frequency: 500 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 30 mm
- Housing length: 50 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 8 mm diameter sensing face
- Non-flush installation type with triple sensing range
- Sensing range Sn of 6 mm and safe sensing range Sa of 4.86 mm
- Switching frequency up to 500 Hz with PNP normally closed output
- Connector M8, 3-pin connection type
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-06NPOZT0S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable proximity sensing.
