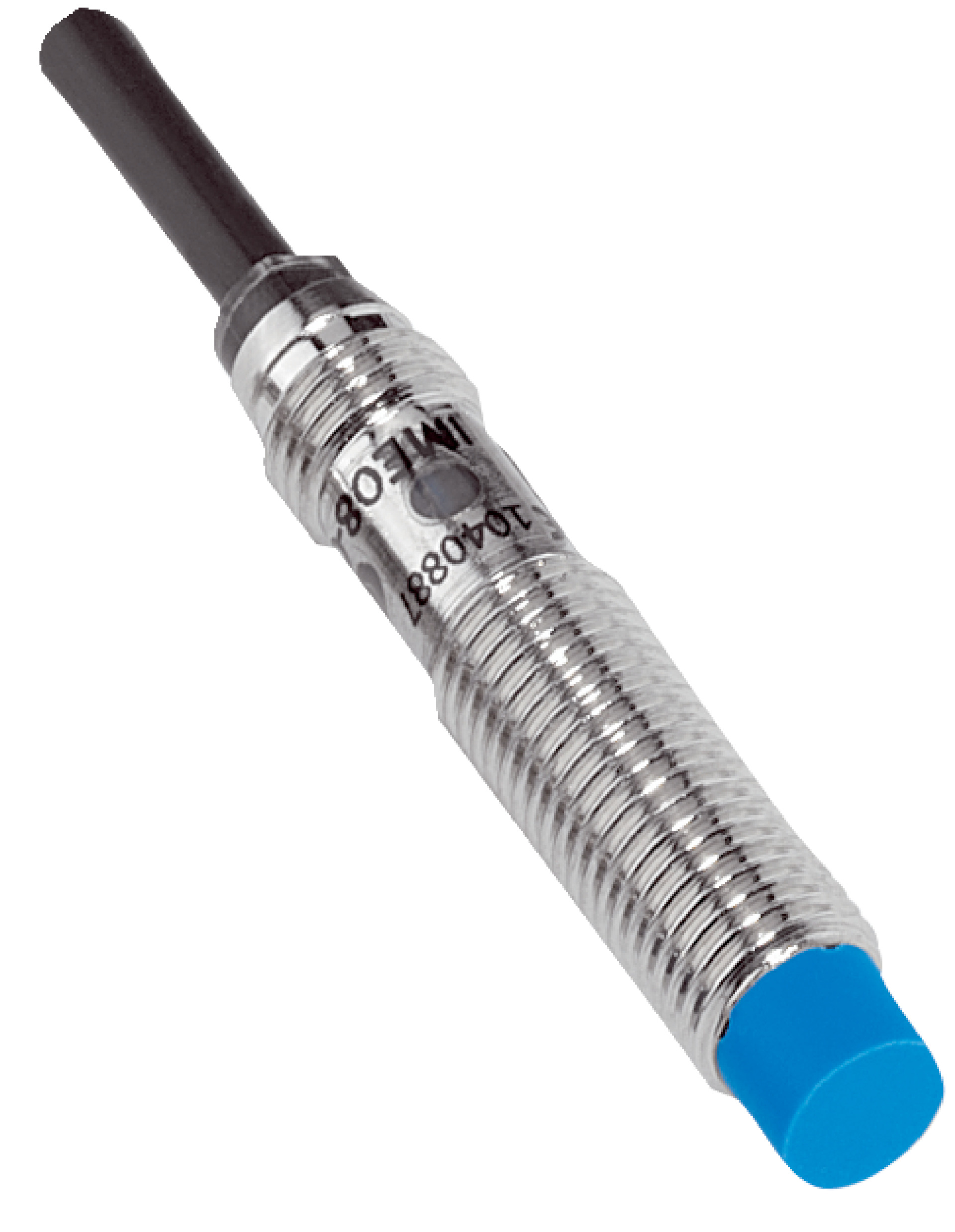

M8 Inductive Proximity Sensor | Short-body Design | 4mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and a sensing range of 4mm. With a high switching frequency of 4000 Hz and an IP67 rated enclosure, it ensures durability and performance in harsh environments. Ideal for non-contact switching in machinery and safety systems, this sensor is built to withstand shock and vibration, making it perfect for manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4000 Hz
- Connection type: Cable, 3-wire, 5 m PVC
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 43 mm
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 threaded housing with 4 mm sensing range
- Non-flush installation type with PNP normally open output
- High switching frequency of 4000 Hz for fast response
- IP67 rated enclosure for dust and water protection
- Robust brass nickel-plated housing with plastic sensing face
- Cable connection with 3-wire, 5 m PVC cable included
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

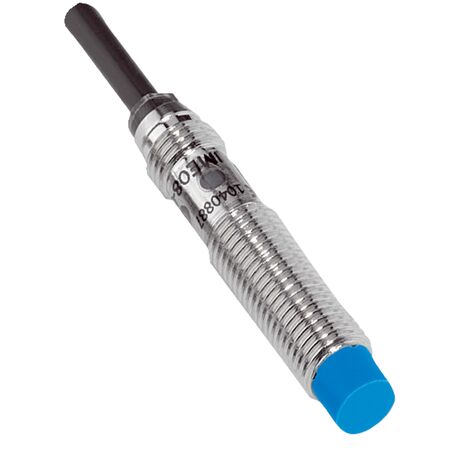

The SICK IME08-04NPSZW5KS81 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
