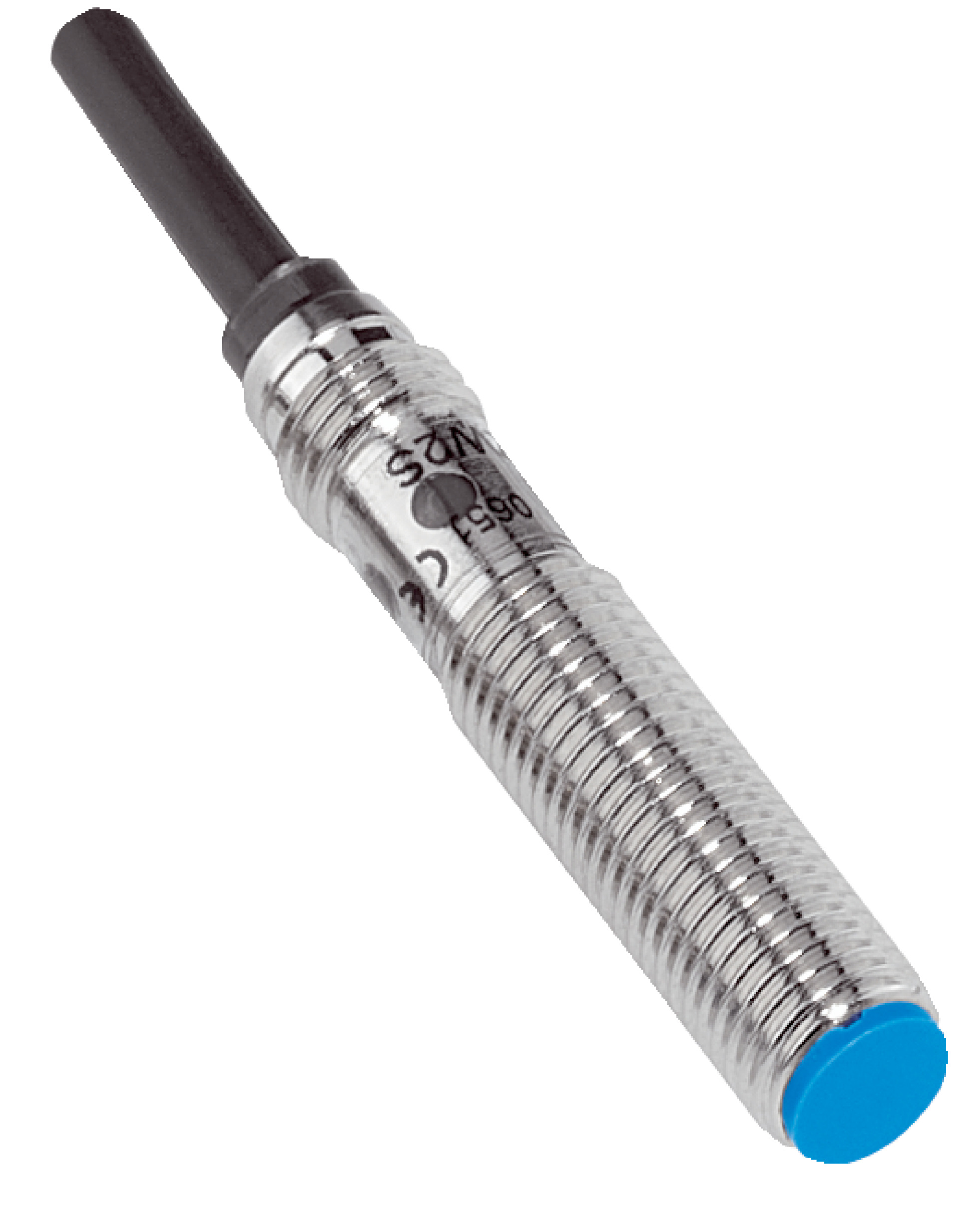

M8 Inductive Proximity Sensor | Short-body Brass Housing | 1.5mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body brass housing and a sensing range of 1.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for object detection and position sensing in manufacturing lines, this sensor is built to withstand extreme temperatures from -25 °C to +75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 6 m PUR
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 38mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 housing with brass, nickel-plated material
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Cable connection type: 3-wire, 6 m PUR cable
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

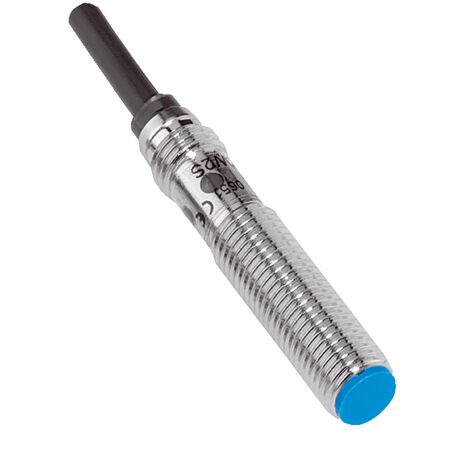

The SICK IME08-1B5PSZUDKS31 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
