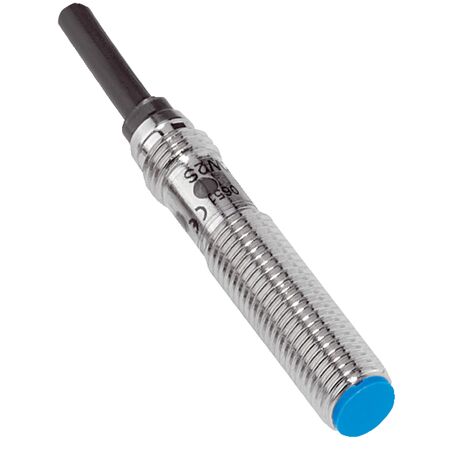

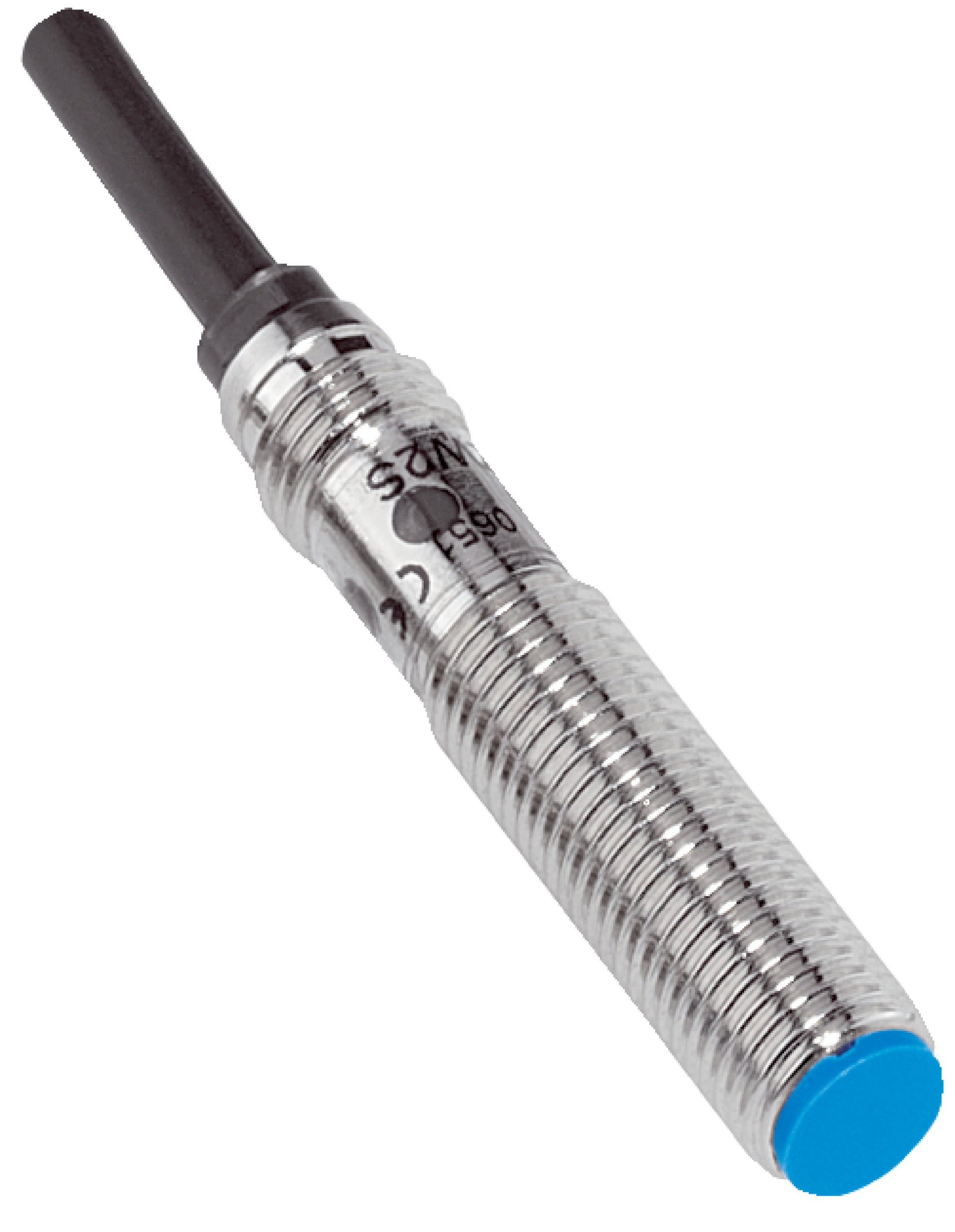

M8 Inductive Proximity Sensor | Short-Body Brass Housing | 2mm Sensing Range | 4000Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for precision in industrial automation, featuring a short-body brass housing and a sensing range of 2 mm. With a high switching frequency of 4,000 Hz and a robust IP67 rated enclosure, this sensor is perfect for object detection and position sensing in tight spaces, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Short-Body Brass Housing | 2mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040879
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Inductive Sensor, NPN NO Proximity Switch, Flush Mount Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, normally open
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 43 mm
- Thread length: 25 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 housing with brass, nickel-plated material
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type with IP67 rated enclosure
- High switching frequency of 4,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Cable connection type with 2 m PVC cable
- Shock and vibration resistant up to 30 g and 11 ms
- Wide ambient operating temperature from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-02BNSZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
