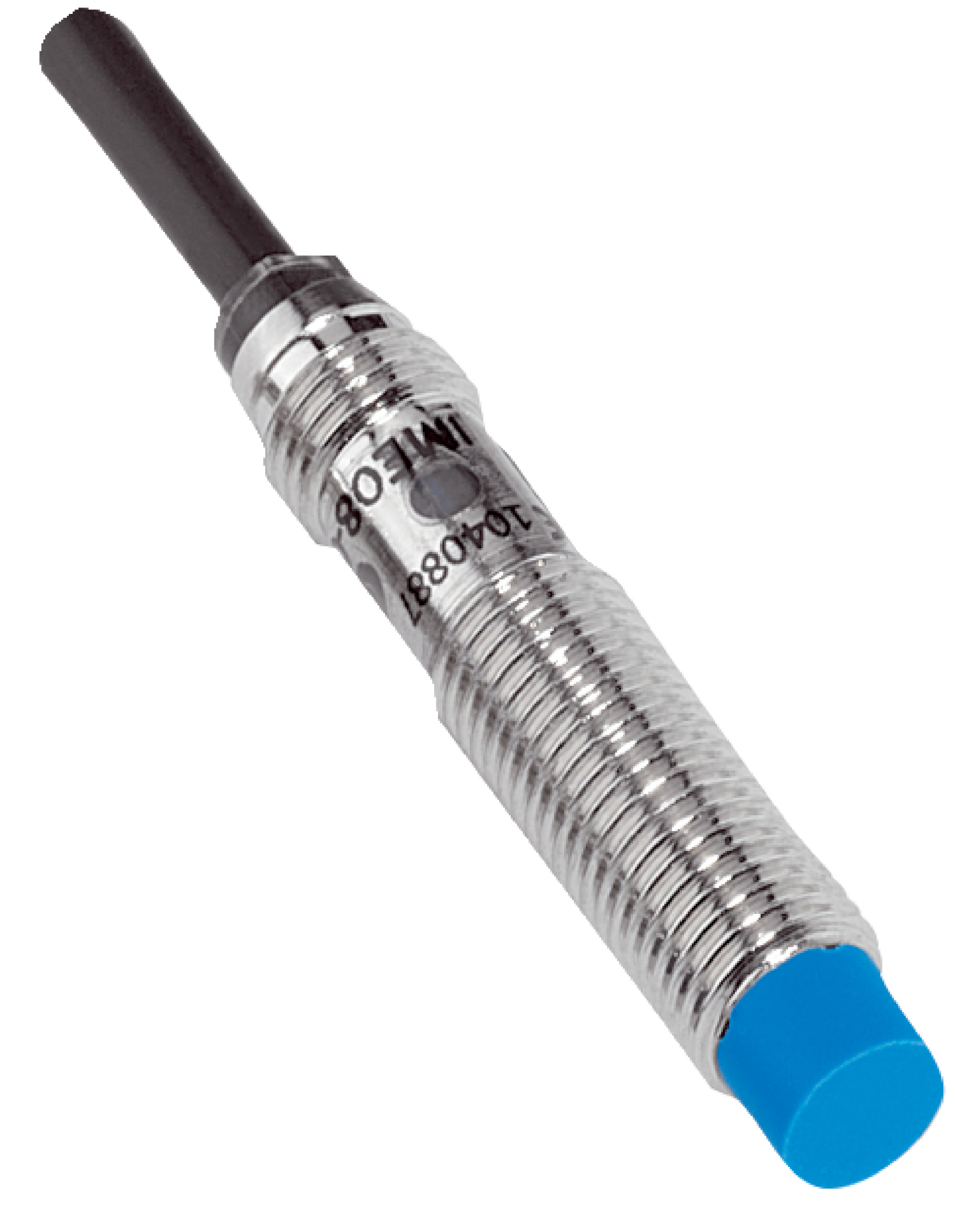

M8 Inductive Proximity Sensor | Short-body Brass Housing | 4mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body brass housing and a sensing range of 4 mm. With a high switching frequency of 4,000 Hz and an IP67 rating, this sensor is perfect for harsh environments, ensuring durability and performance in manufacturing lines and machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Short-body Brass Housing | 4mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040891
Alternatively Known As: M8 Inductive Proximity Sensor, Short-body Inductive Sensor, Non-flush M8 Sensor, PNP Inductive Sensor 4mm
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC cable
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 43 mm
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 4,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact metal detection in machinery
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Robust housing minimizes environmental damage from harsh industrial conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-04NPOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
