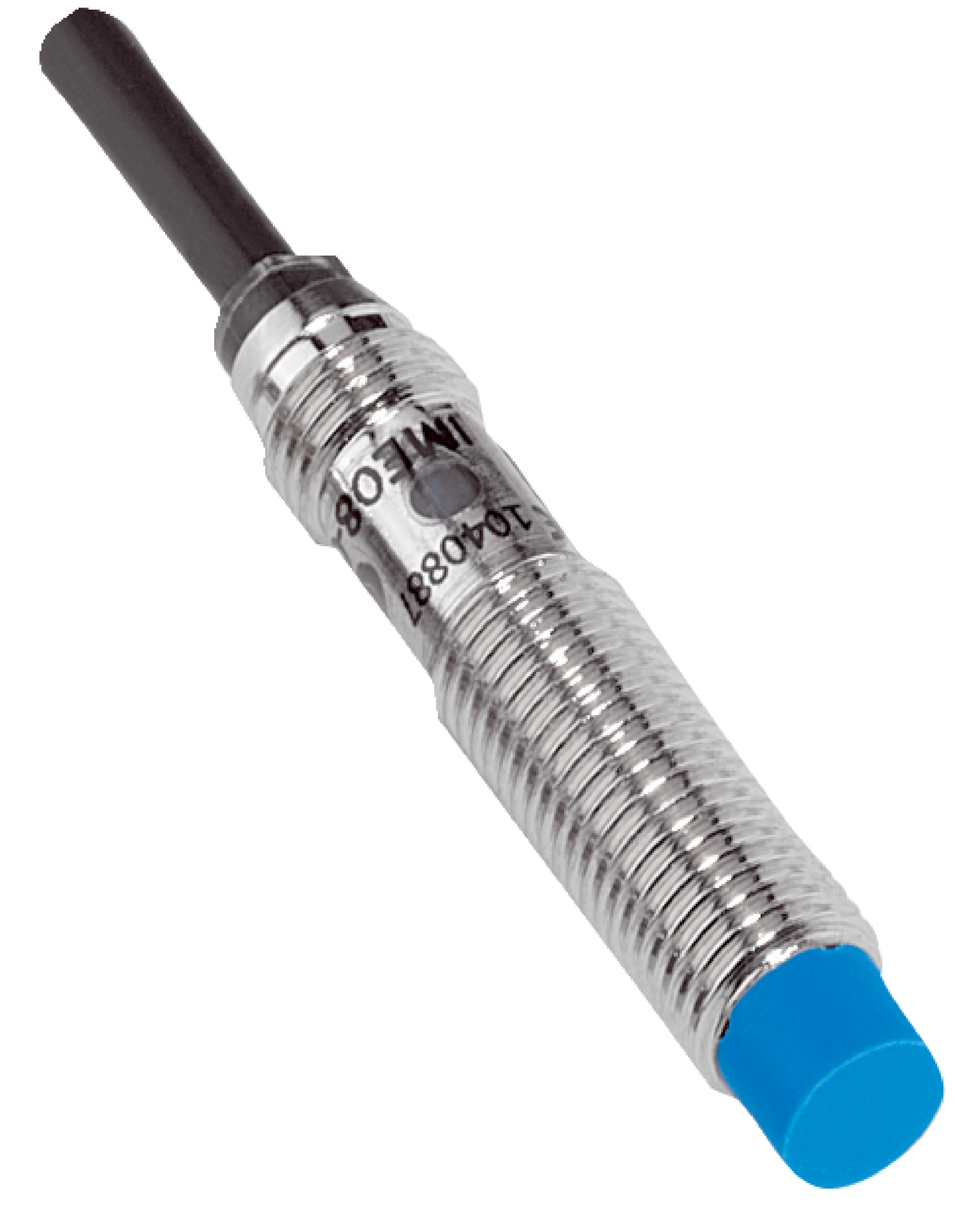

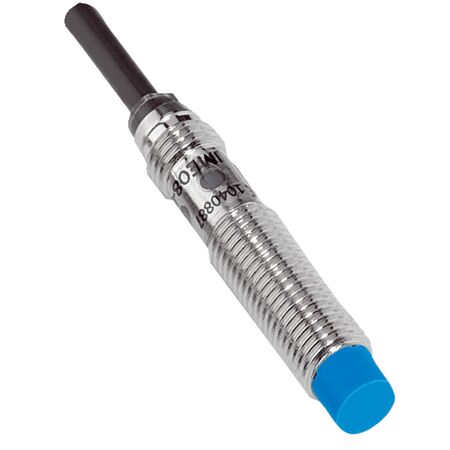

M8 Inductive Proximity Sensor | Short-body Brass Housing | NPN NC Output | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body brass housing and a sensing range of 4 mm. With an NPN normally closed output and an impressive switching frequency of 4000 Hz, this sensor is perfect for non-flush mounting in harsh environments, ensuring durability and performance in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Short-body Brass Housing | NPN NC Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1040899
Alternatively Known As: M8 Inductive Proximity Sensor, Short-body Inductive Sensor, NPN NC Proximity Switch, SICK IME08 Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 43 mm
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 housing with brass, nickel-plated material
- Non-flush installation type with 4 mm sensing range
- NPN normally closed switching output with 3-wire DC connection
- High switching frequency up to 4000 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Includes two nickel-plated steel mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting in machinery
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-04NNOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
