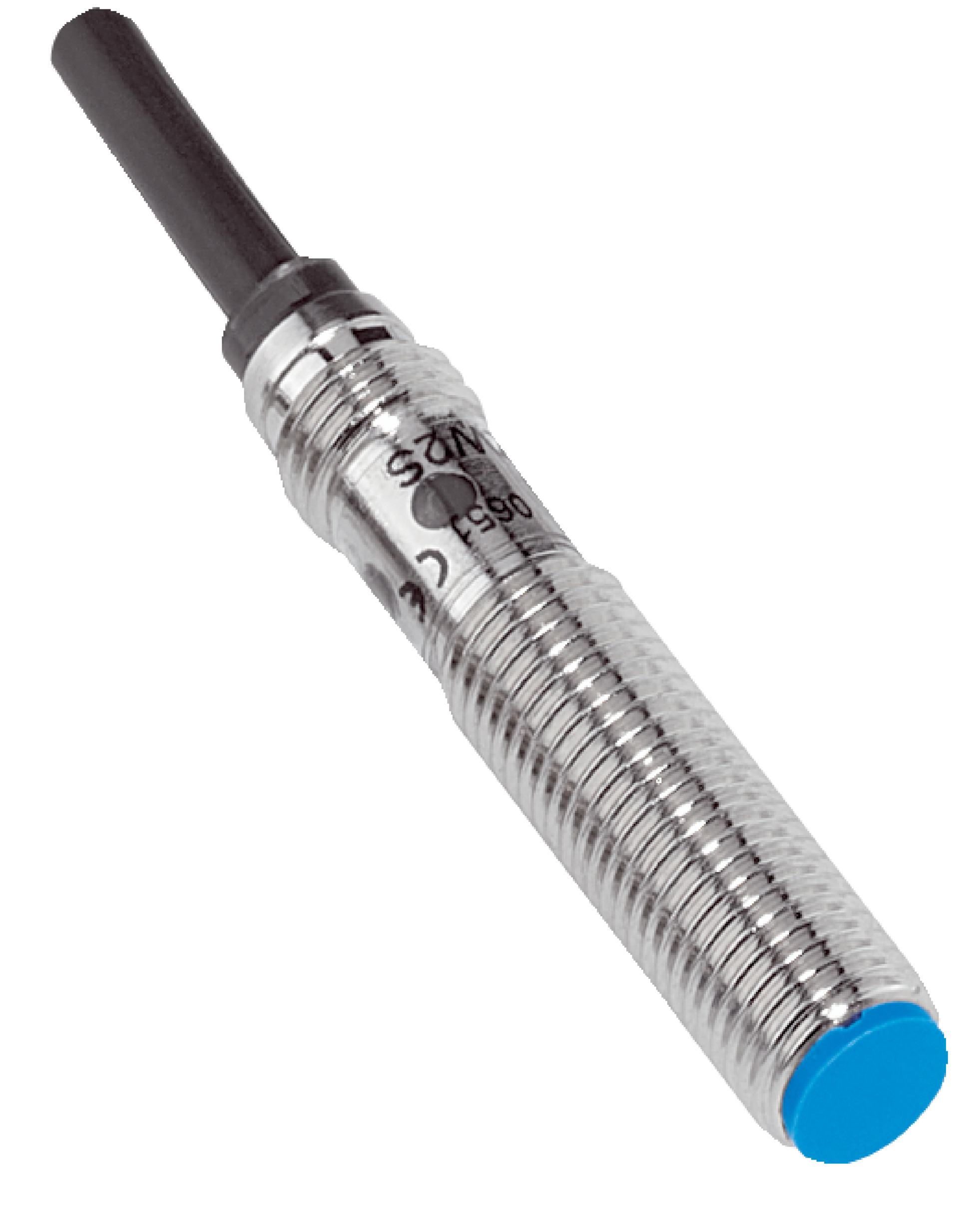

M8 Inductive Proximity Sensor | Short-body Design | IP65 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and IP65 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and a high switching frequency of 4,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: –25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 38 mm
- Thread length: 32 mm
- Maximum tightening torque: ≤ 5 Nm
- Dimensions (H x L x W): 38mm x 38mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable with M8 3-pin connector, 0.4 m length
- IP65 rated enclosure for dust and water protection
- Continuous thread with 2 LEDs for status indication
- Includes 2 nickel-plated steel mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

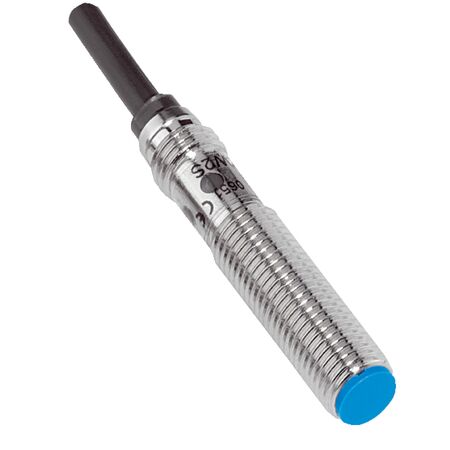

The SICK IME08-1B5PSZUDKS60 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
