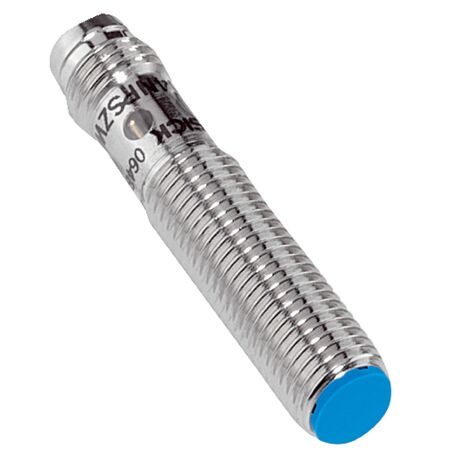

M8 Inductive Proximity Sensor | Short-body Nickel-Plated Brass | IP67 Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body nickel-plated brass housing and a sensing range of 2 mm. With an IP67 enclosure rating and a high switching frequency of 4,000 Hz, this sensor is perfect for flush mounting in tight spaces, ensuring reliable performance in various manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Short-body Nickel-Plated Brass | IP67 Rated | 2mm Sensing Range | by SICK
Brand: SICK
SKU: 1040869
Alternatively Known As: M8 Inductive Proximity Sensor, Short-body Inductive Sensor, PNP Inductive Sensor M8, Flush Mount Inductive Sensor
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic PA 66
- Housing length: 41 mm
- Thread length: 25 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 41mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type with IP67 enclosure rating
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Nickel-plated brass housing with plastic sensing face
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-02BPSZT0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact and reliable sensing solutions.
