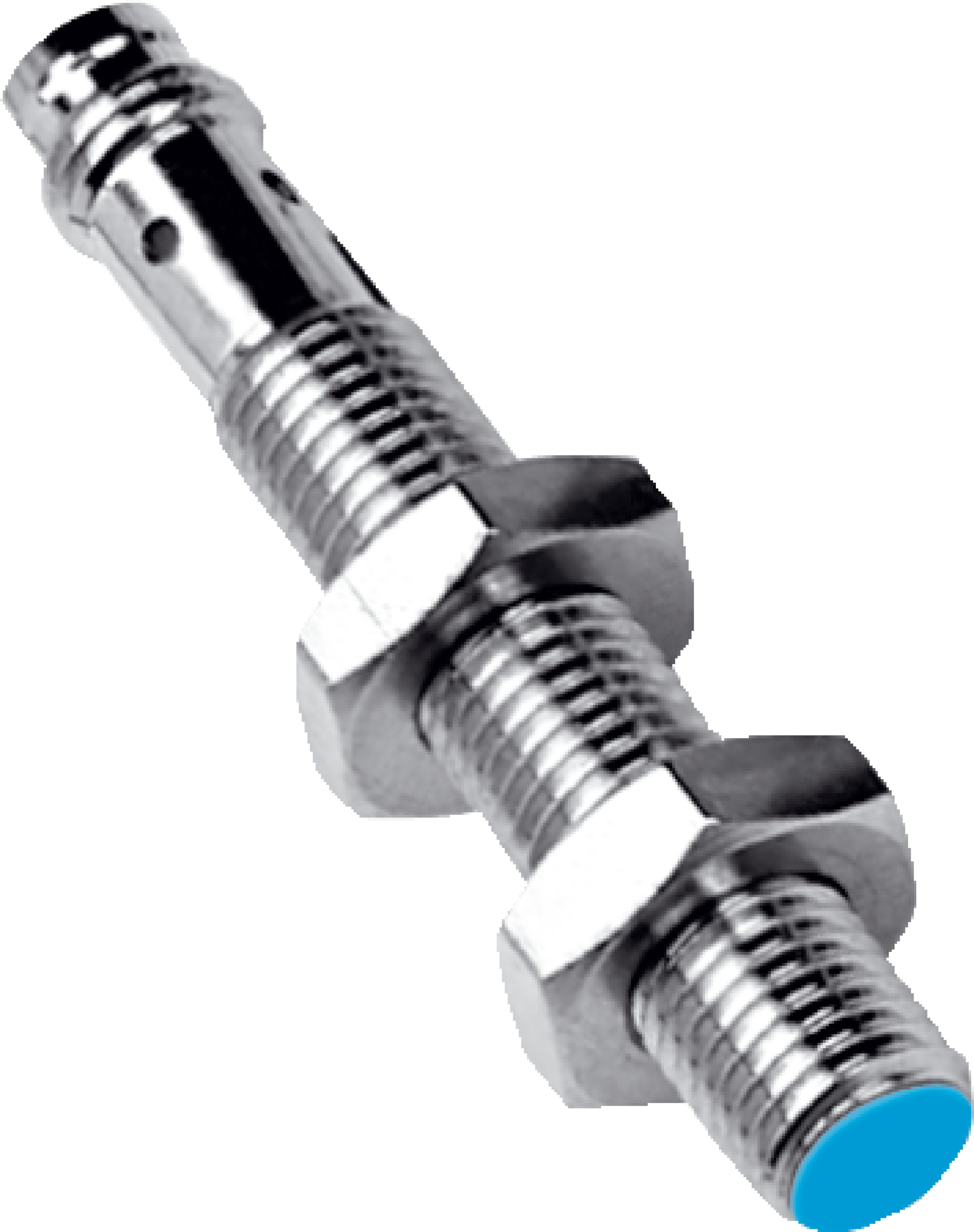

M8 Inductive Proximity Sensor | Short-Body Design | IP67 Rated | 3,000 Hz Switching Frequency | by SICK

BRAND: SICK
SKU: 6025863
$257.40 List price: $323.50
+ −
30 Days Return Electricians Unlock Trade Access
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body housing and a sensing range of 2 mm. With an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments. Its PNP NO output and high switching frequency of 3,000 Hz make it an ideal choice for position sensing in manufacturing lines.

Alternatively Known As: M8 Inductive Proximity Sensor, Short-body Inductive Sensor, PNP NO Proximity Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 1.2 V
  • Time delay before availability: ≤ 5 ms
  • Hysteresis: 1% to 20%
  • Reproducibility: ≤ 5%
  • Temperature drift of sensing range: ± 10%
  • Continuous current Ia: ≤ 200 mA
  • EMC compliance: EN 60947-5-2
  • Housing material: Brass, nickel-plated
  • Sensing face material: Plastic
  • Tightening torque max: 4 Nm
  • Dimensions (H x L x W): 8mm x 40mm x 8mm
  • Weight: 0.1 kg
Key Features
  • Short-body housing with M8 x 1 thread size
  • Flush installation type
  • Sensing range of 2 mm
  • High switching frequency of 3,000 Hz
  • PNP switching output with NO function
  • Connector M8, 3-pin connection type
  • IP67 rated enclosure for dust and water protection
  • Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
  • Short-circuit and power-up pulse protection
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
  • Industrial automation for object detection
  • Position sensing in manufacturing lines
  • Machine safety and control systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable nickel-plated brass housing reduces replacement frequency and waste
  • Energy-efficient DC 3-wire electrical wiring minimizes power consumption
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

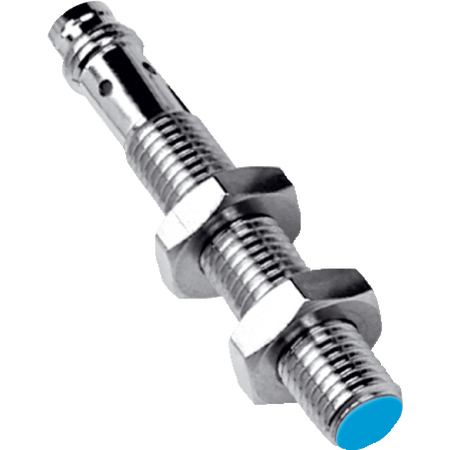

The SICK IM08-02BPS-ZTK inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
