M8 Inductive Proximity Sensor | Short Body Design | IP67 Rated | 4mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a short body design and a sensing range of 4 mm. With an IP67 rating for dust and water protection, this sensor is perfect for non-contact switching in machinery and object detection in manufacturing lines. Its robust nickel-plated brass housing ensures durability, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, PNP Proximity Sensor M8, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 8mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

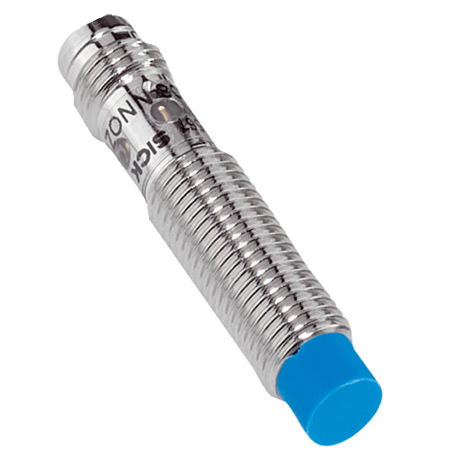

The SICK IME08-04NPSZT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
