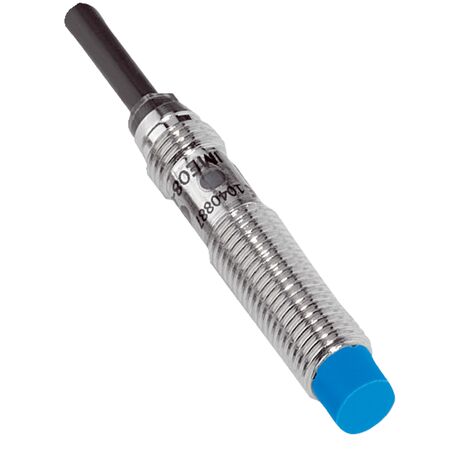

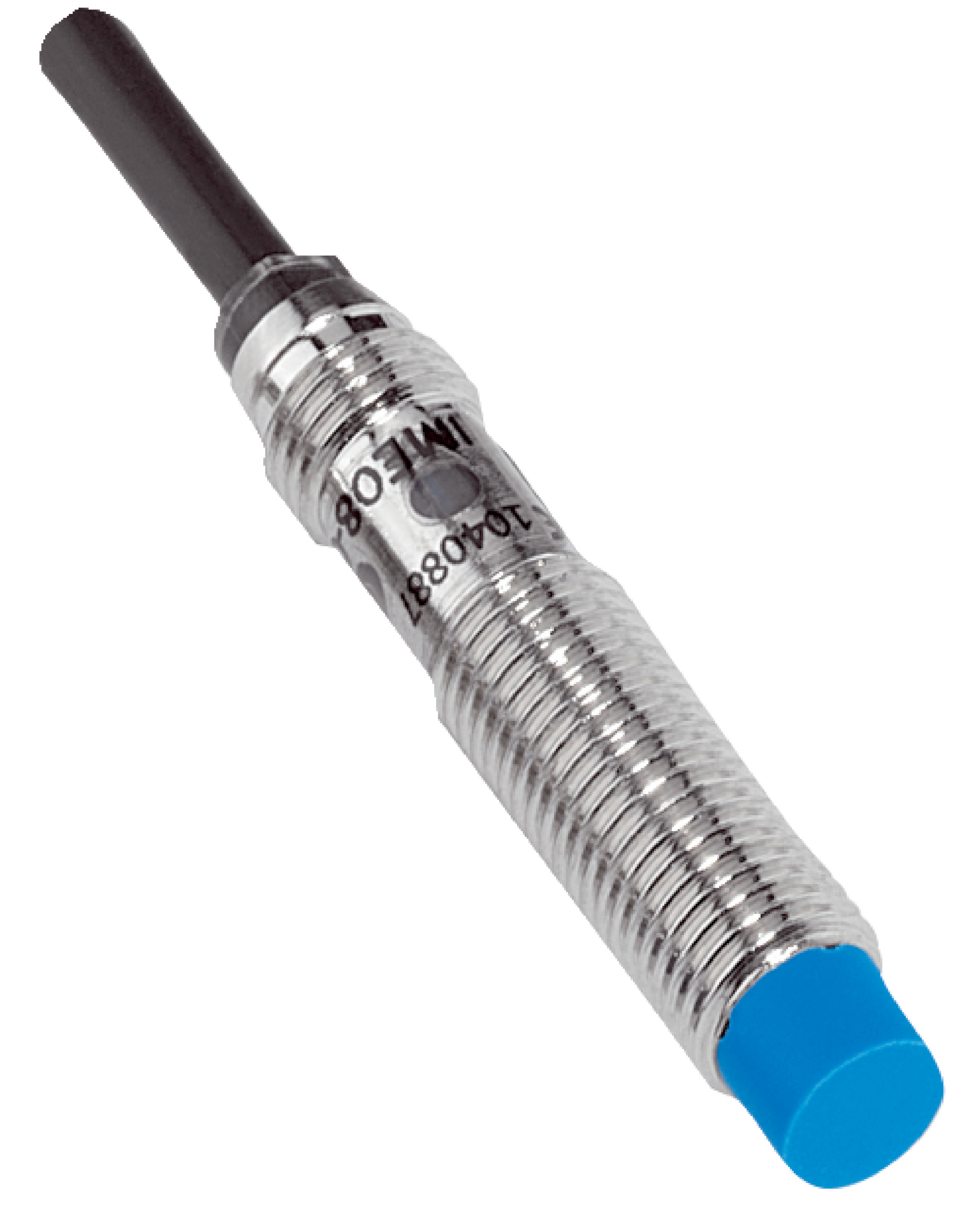

M8 Inductive Proximity Sensor | Short-Body Design | IP67 Rated | 6mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and a sensing range of 6 mm. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for manufacturing lines and machinery applications. This sensor is built for durability and energy efficiency, ensuring long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Switching frequency up to 500 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nuts included (brass, nickel-plated)
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting in machinery
- Use in environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-06NNSZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
