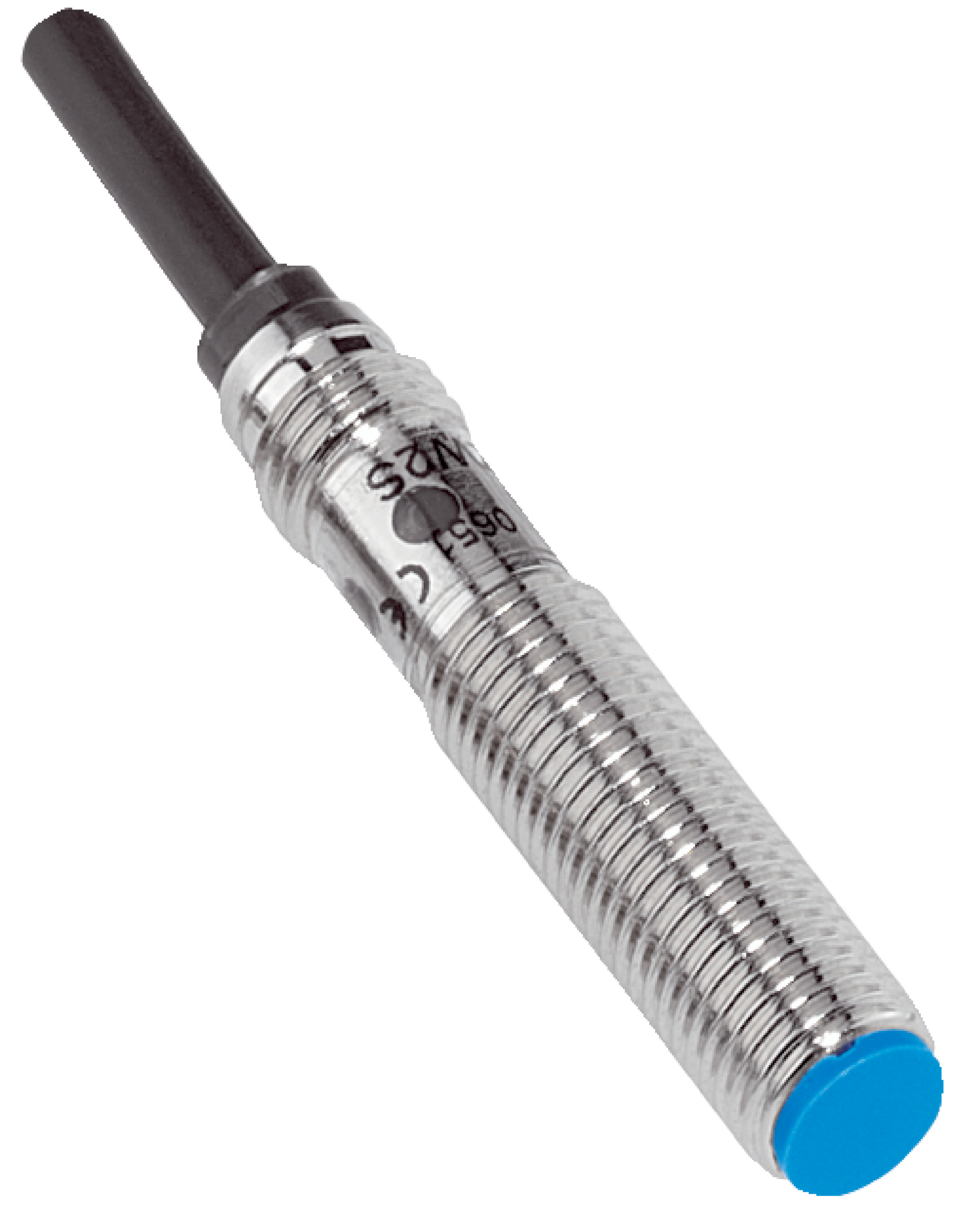

M8 Inductive Proximity Sensor | Short-body Design | IP67 Rated | High Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and an IP67 rated enclosure for dust and water protection. With a sensing range of 2 mm and a high switching frequency of 4,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.7 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 25 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 3 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

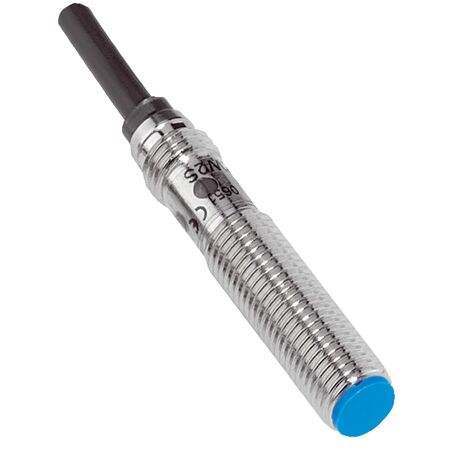

The SICK IME08-02BPOZW3K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
