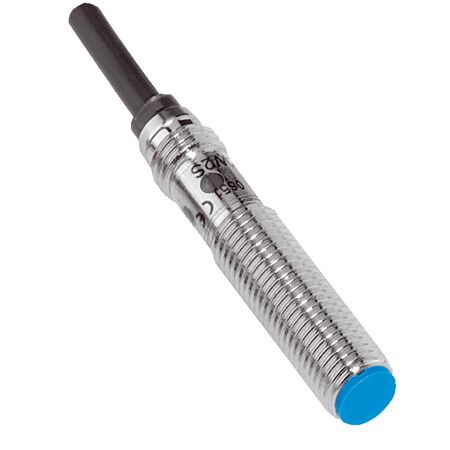

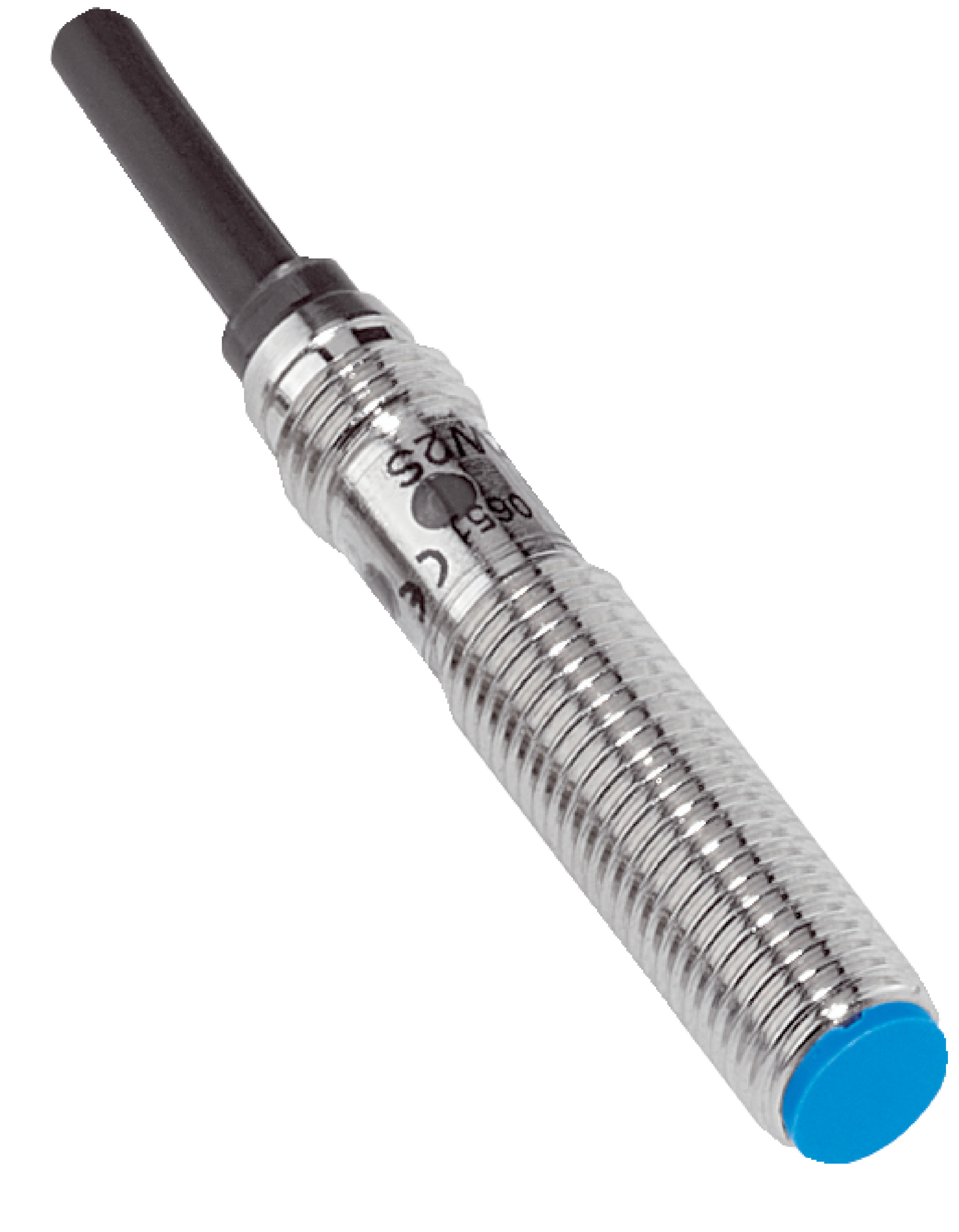

M8 Inductive Proximity Sensor | Short Body Nickel-Plated Brass | 2mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body nickel-plated brass housing and a sensing range of 2 mm. With an IP67 rating for dust and water protection, this sensor is perfect for flush installations in manufacturing lines and automation systems, ensuring reliable metal detection and position sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 0.5 m PUR cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic PA 66
- Housing length: 30.4 mm
- Thread length: 28.4 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 30mm x 30mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 threaded housing with nickel-plated brass material
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type with continuous thread and LED indicator at cable outlet
- High switching frequency of 4,000 Hz with PNP normally open output
- IP67 rated enclosure for dust and water protection
- Cable connection with M12 male connector, 4-pin, 0.5 m PUR cable
- Shock and vibration resistant up to 30 g and 11 ms
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper flush installation and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes environmental impact from sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-02BPSZQDKS51 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable metal object detection.
