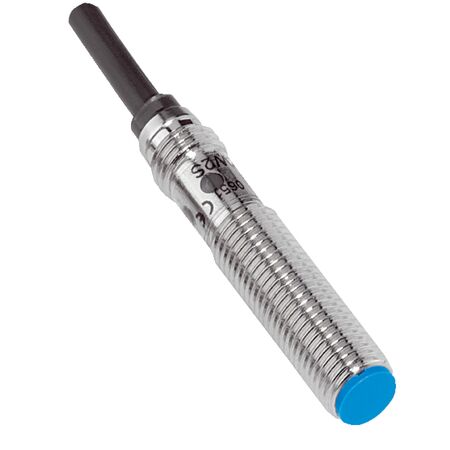

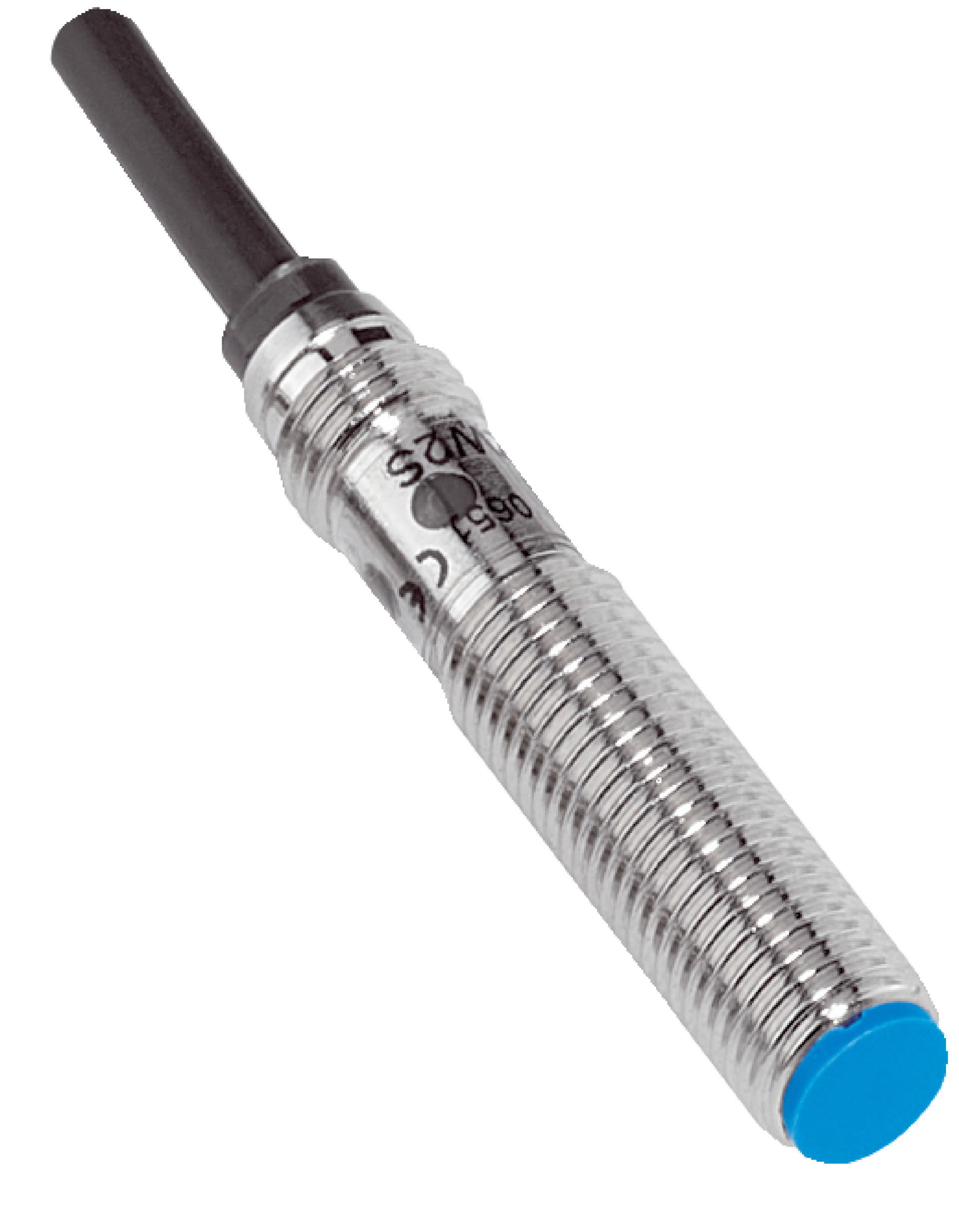

M8 Inductive Proximity Sensor | Short-Body Nickel-Plated Brass | 1.5mm Sensing Range | IP65 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body nickel-plated brass housing and a sensing range of 1.5 mm. With a high switching frequency of 4,000 Hz and an IP65 rated enclosure, this sensor is perfect for flush installations in manufacturing lines and automation systems, ensuring durability and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 6 m PUR cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP65
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 38 mm
- Thread length: 38 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 38mm x 38mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 threaded housing with nickel-plated brass material
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with continuous thread and 2 LEDs for status indication
- High switching frequency of 4,000 Hz with PNP normally open output
- Cable connection type: 3-wire, 6 m PUR cable
- IP65 rated enclosure for dust and water resistance
- Shock and vibration resistant up to 30 g and 11 ms
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-1B5PSZUDKS36 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact, reliable sensing solutions.
