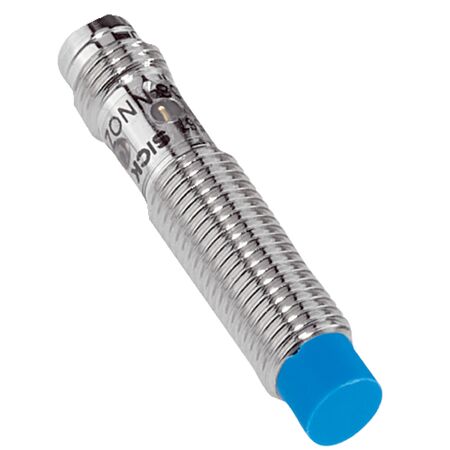

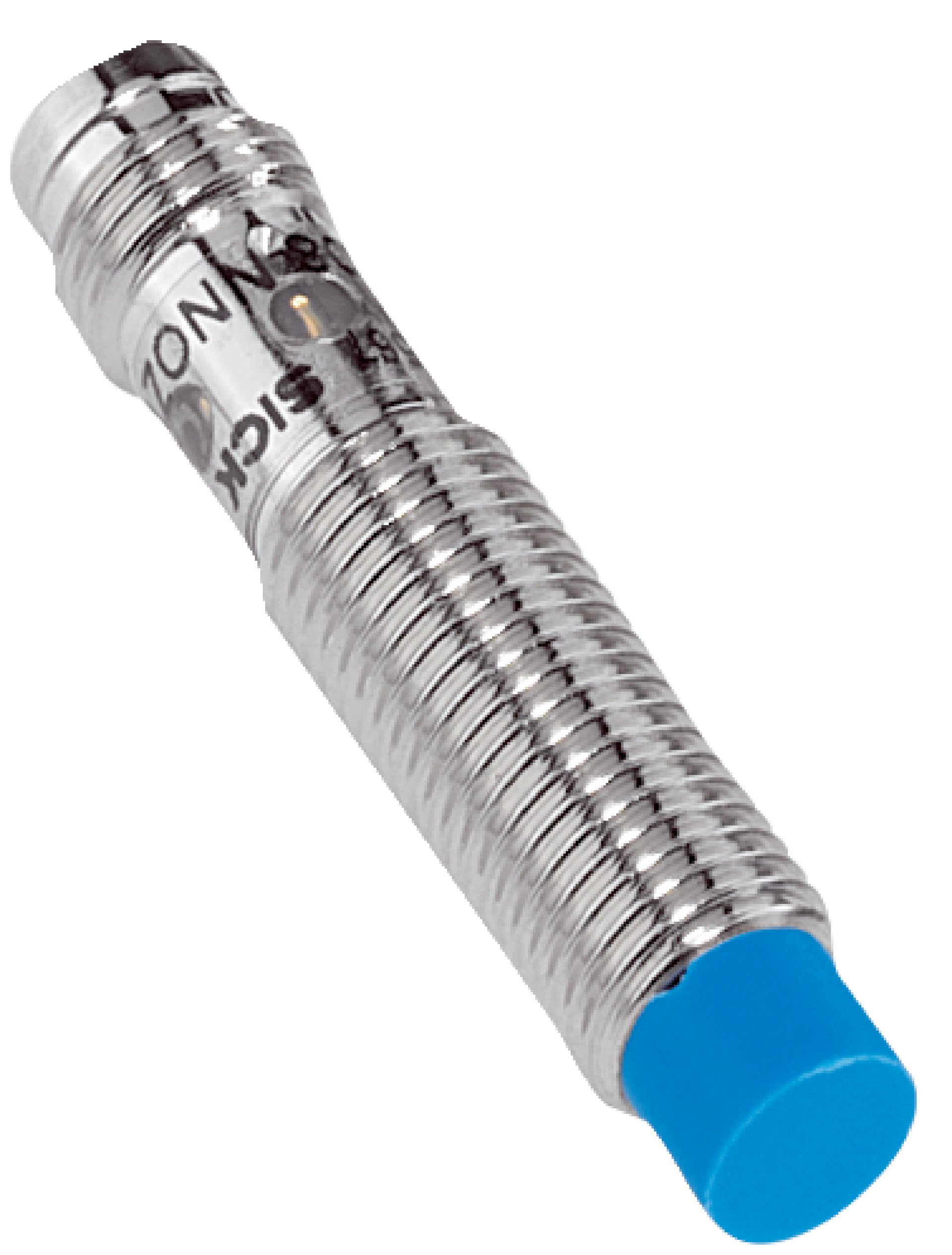

M8 Inductive Proximity Sensor | Short Body | NPN Output | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body and NPN normally open output. With an impressive switching frequency of 4,000 Hz and an IP67 rated enclosure, it ensures durability and performance in harsh environments, making it ideal for manufacturing lines and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Short Body | NPN Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1040861
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, NPN Proximity Sensor, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally open
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature range: -25 °C to +75 °C
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 41mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz
- NPN normally open switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure correct mounting and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-2N5NSZT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
