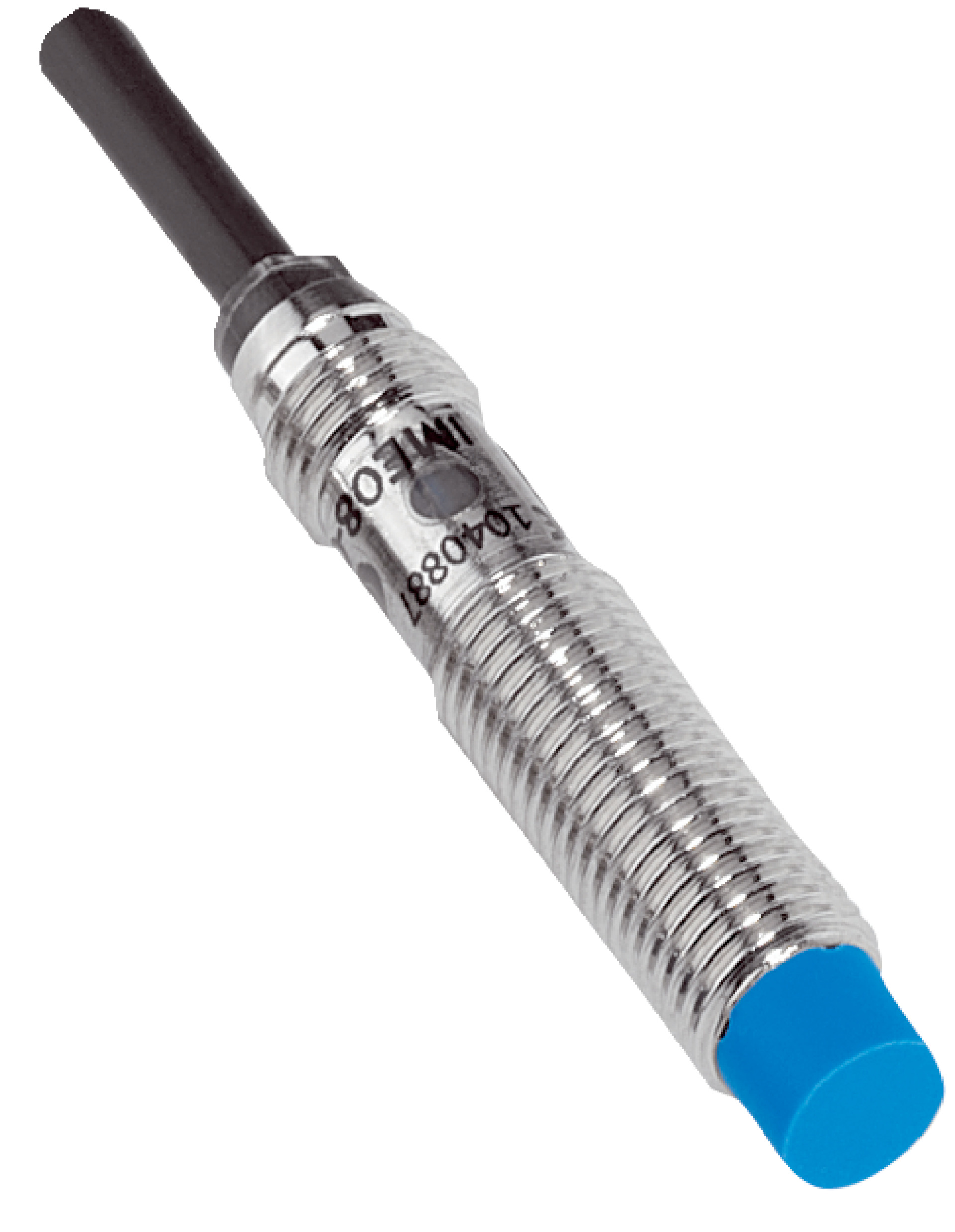

M8 Inductive Proximity Sensor | Short Body | PNP NC Output | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body brass housing and a sensing range of 6 mm. With a high switching frequency of 500 Hz and an IP67 enclosure rating, this sensor is perfect for non-flush mounting environments, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 43 mm
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 housing with brass, nickel-plated material
- Non-flush installation type with triple sensing range
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- High switching frequency of 500 Hz with PNP normally closed output
- IP67 rated enclosure for dust and water protection
- Cable connection: 3-wire, 2 m PVC cable
- Shock and vibration resistant up to 30 g and 11 ms
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting environments requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

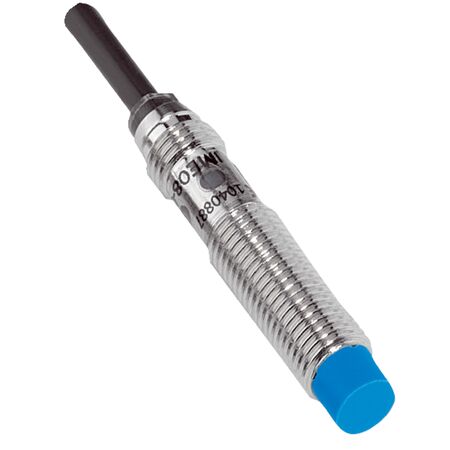

The SICK IME08-06NPOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
