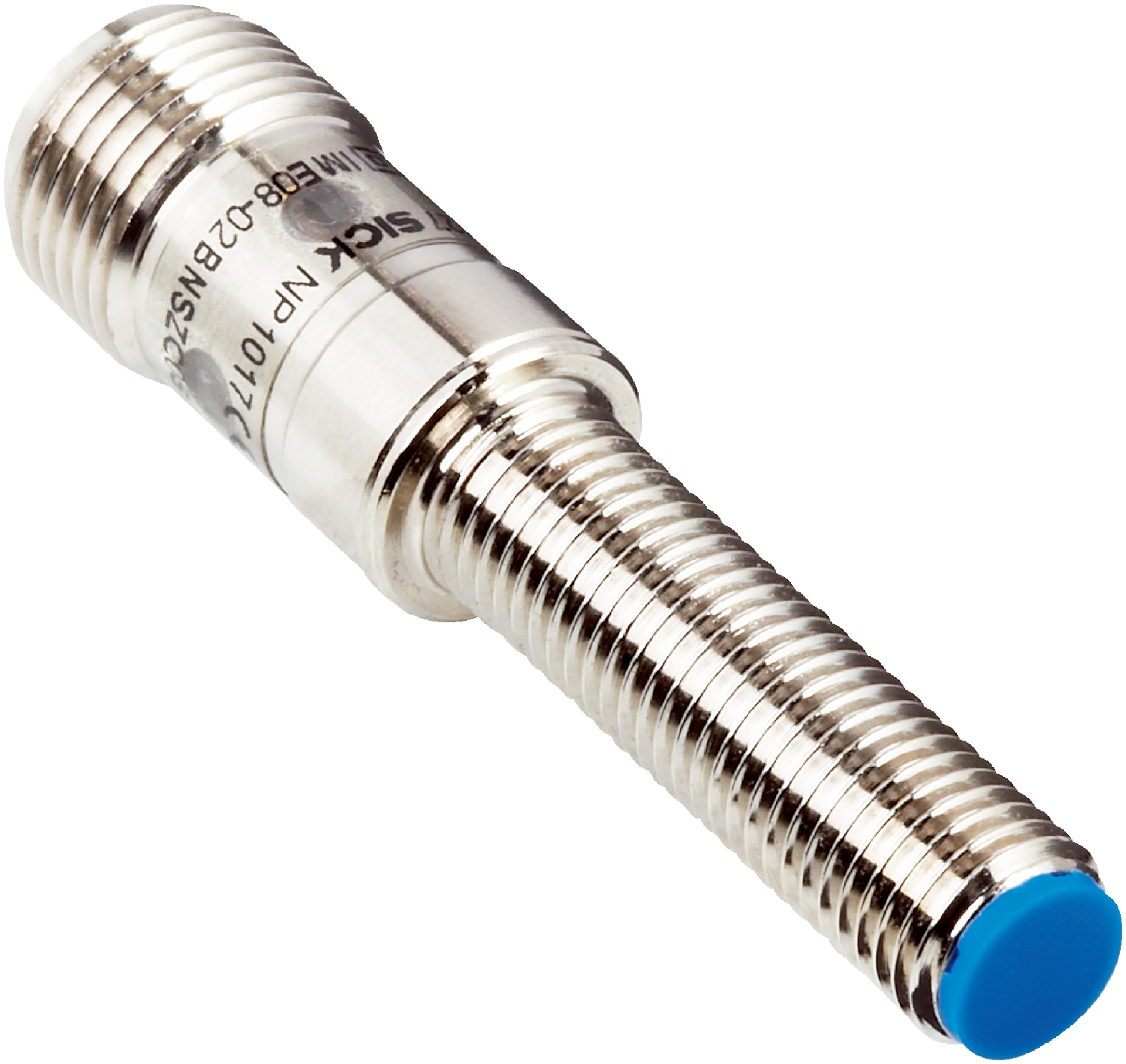

M8 Inductive Proximity Sensor | Stainless Steel V2A | 1.5mm Sensing Range | IP67 Rated | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 1.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and automation systems requiring compact solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Inductive Proximity Sensor | Stainless Steel V2A | 1.5mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1052641
Alternatively Known As: M8 Inductive Proximity Sensor, PNP NO Inductive Sensor, Flush Mount Inductive Sensor, Stainless Steel Proximity Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M8 x 1 6g
- Diameter: 8 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic, PA 66
- Housing length: 52 mm
- Thread length: 28 mm
- Tightening torque max: ≤ 7 Nm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- M8 x 1 6g thread size for easy flush mounting
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring compact sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

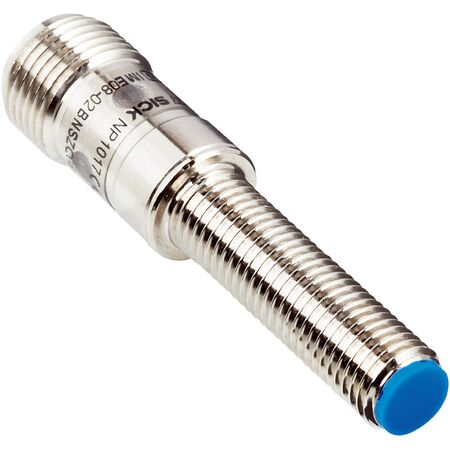

The SICK IME08-1B5PSVC0SS15 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
