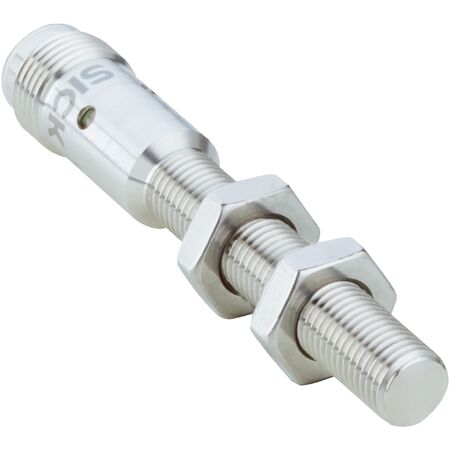

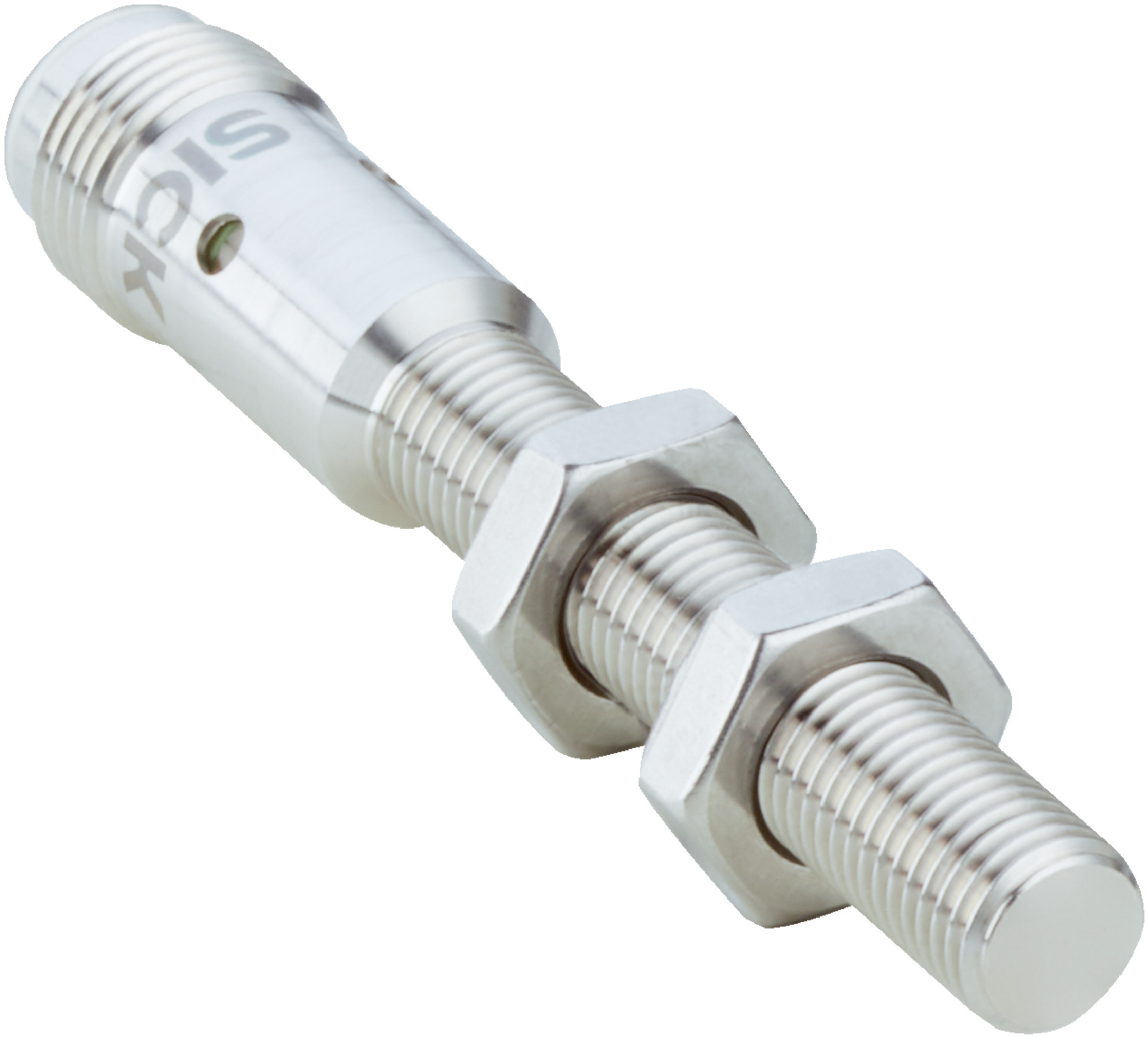

M8 Inductive Proximity Sensor | Stainless Steel Flush Mount | IP68 & IP69K Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for robust industrial automation, featuring a stainless steel flush mount and an impressive sensing range of 2mm. With IP68 and IP69K ratings, it's perfect for hygienic and washdown zones, ensuring reliable performance even in challenging conditions. This sensor is built to withstand harsh environments, making it ideal for precise object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 8mm x 70mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency of 100 Hz
- PNP normally open switching output with DC 3-wire electrical wiring
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Resistant to cleaning agents, supporting hygienic environments and reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI08-02BPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
