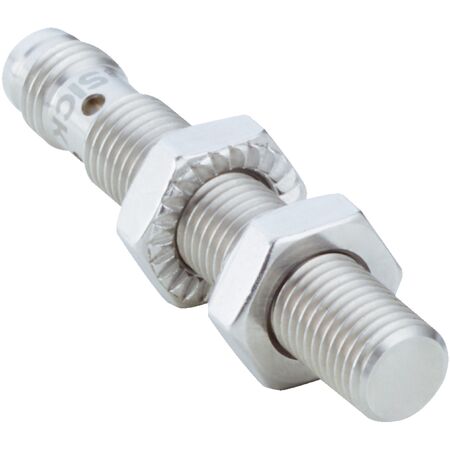

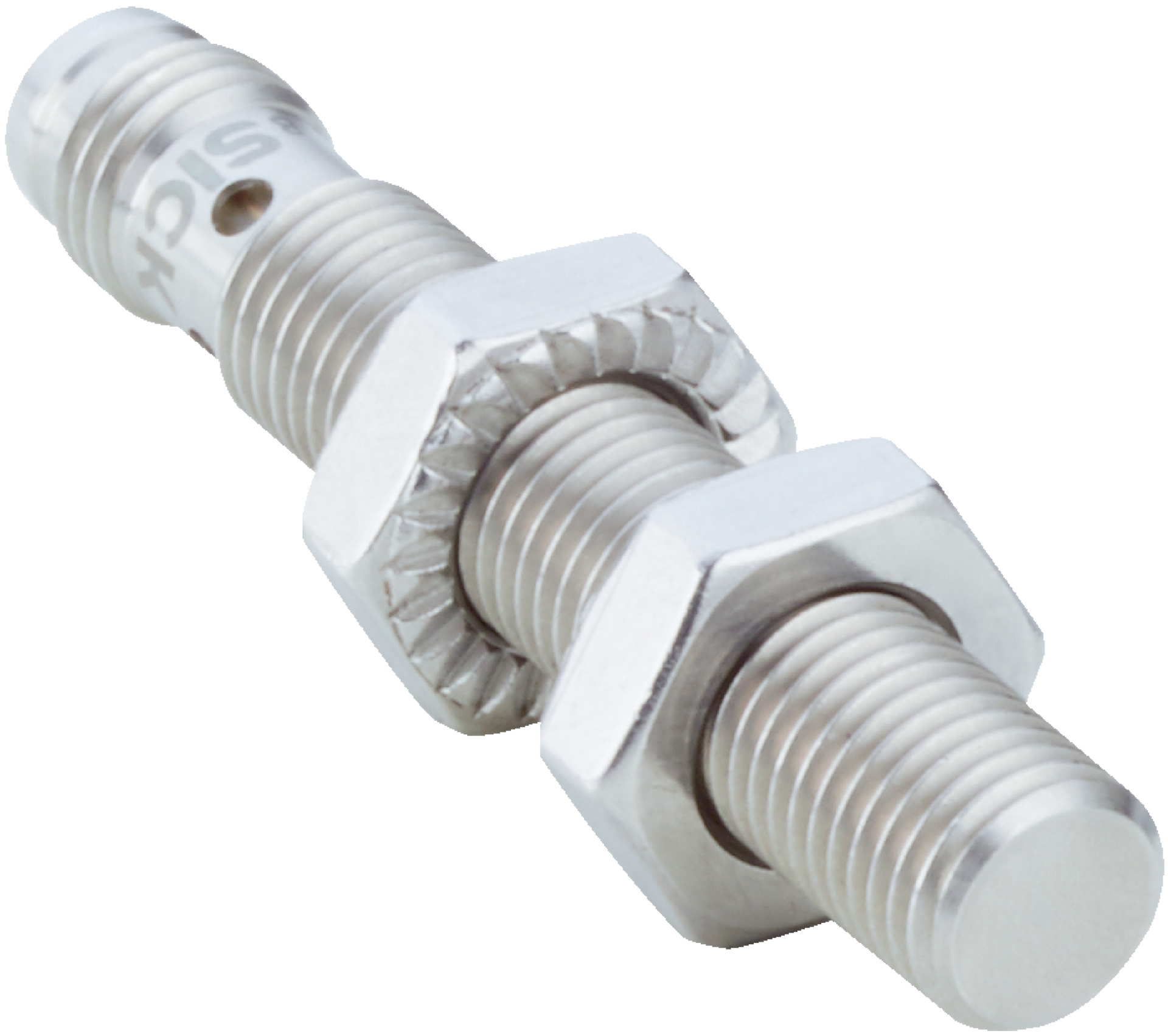

M8 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an impressive IP68/IP69K protection rating. With a sensing range of 2mm and a switching frequency of 100 Hz, it's perfect for detecting objects in challenging environments, including those with coolants and lubricants. Built for reliability and durability, this sensor ensures optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 50mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency of 100 Hz
- NPN switching output with NO function
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Mounting nut included made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI08-02BNSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring robust and reliable sensing in harsh environments.
